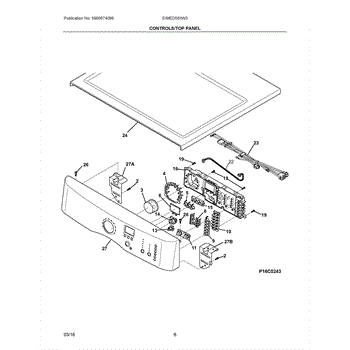

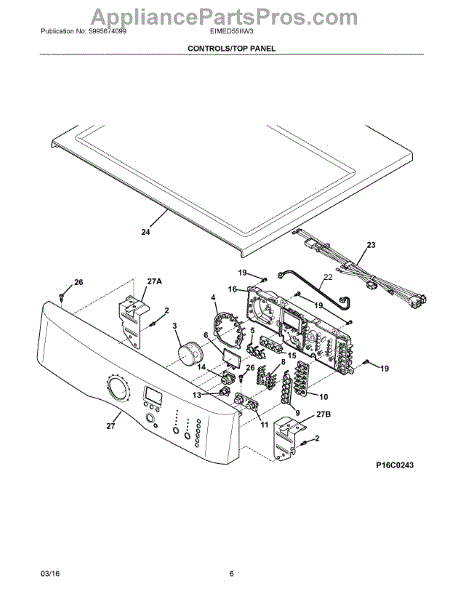

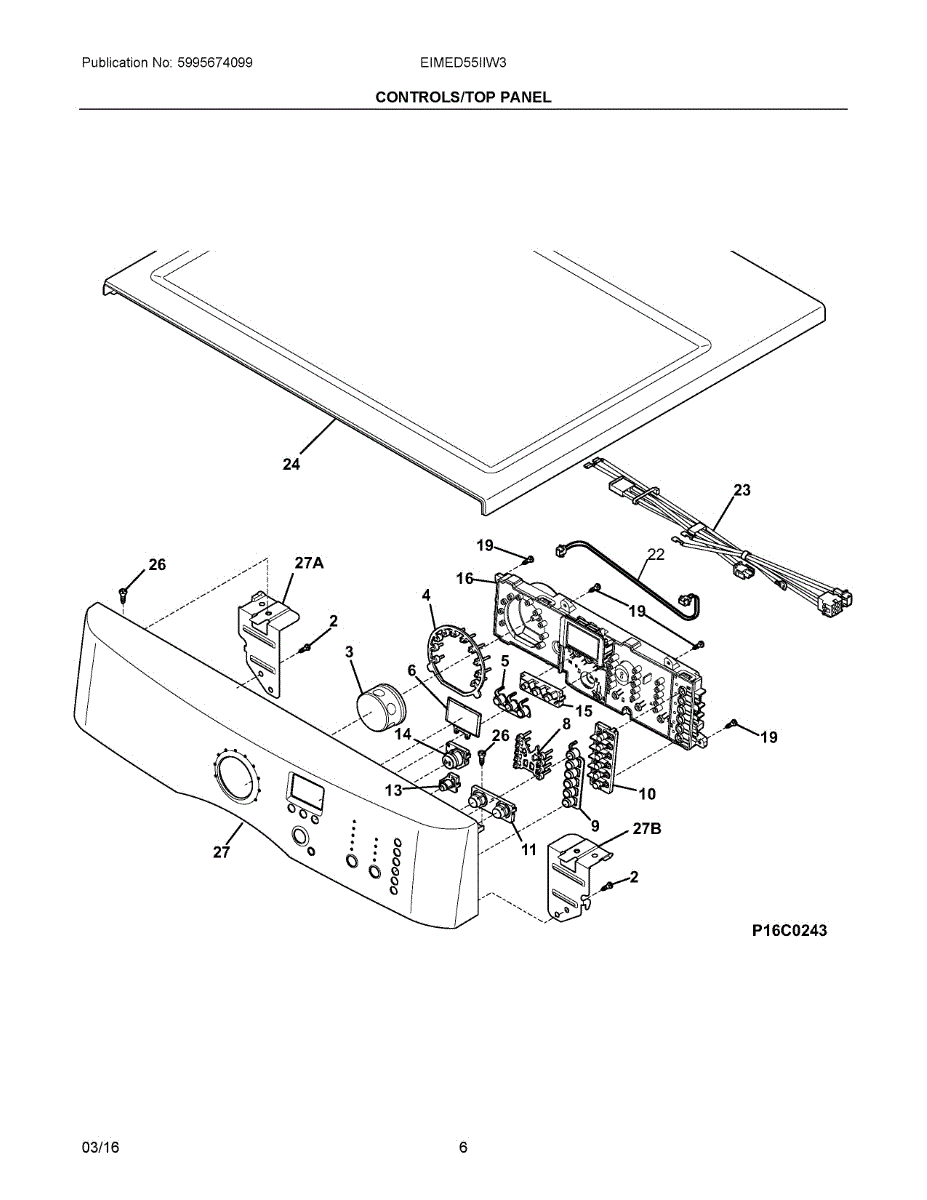

Parts for Electrolux EIMED55IIW3: 04 - Controls / Top Panel Parts

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This electronic control board regulates a refrigerator's user interface and system functions so the appliance responds correctly to settings and cycles. Replacing a faulty board restores reliable control of temperature, defrost, and fans. What it does:

• Interprets user inputs and runs the fridge's control logic for compressors, fans, and defrost timing
• Powers and updates the front display and touchpad/controls
• Prevents or causes erratic cycles when failing (symptoms may include unresponsive controls)
• Can cause cooling or defrost issues when the board no longer sends proper signals to components

• Always disconnect power at the breaker or unplug the appliance before servicing
• Handle the board carefully and avoid ESD (static) damage — use grounding or anti-static precautions
• Verify connectors and wiring match the replacement before securing the board

This electrical wiring harness connects refrigerator components to restore reliable power and signal paths. It replaces a damaged or worn harness to help stop intermittent operation and return affected circuits to normal function. What it does:

• Routes power and control signals between components and the main control
• Restores connectivity when a frayed or broken wire causes intermittent or no operation
• Helps resolve symptoms such as non-working lights, controls, dispenser, or ice maker when caused by a failed harness
• Provides factory-style connector plugs for a direct replacement fit

• Disconnect power to the appliance before starting any work.
• Access may require removing interior panels or appliance trim; keep fasteners organized.
• Match connector shapes and colors; do not force connectors together.
• Inspect mounting points and secure harness to avoid contact with sharp edges or moving parts.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation
