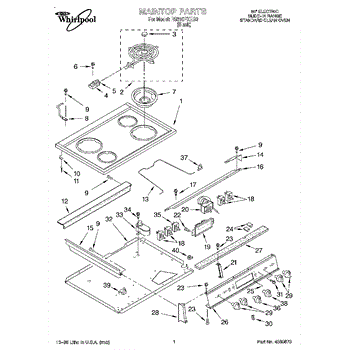

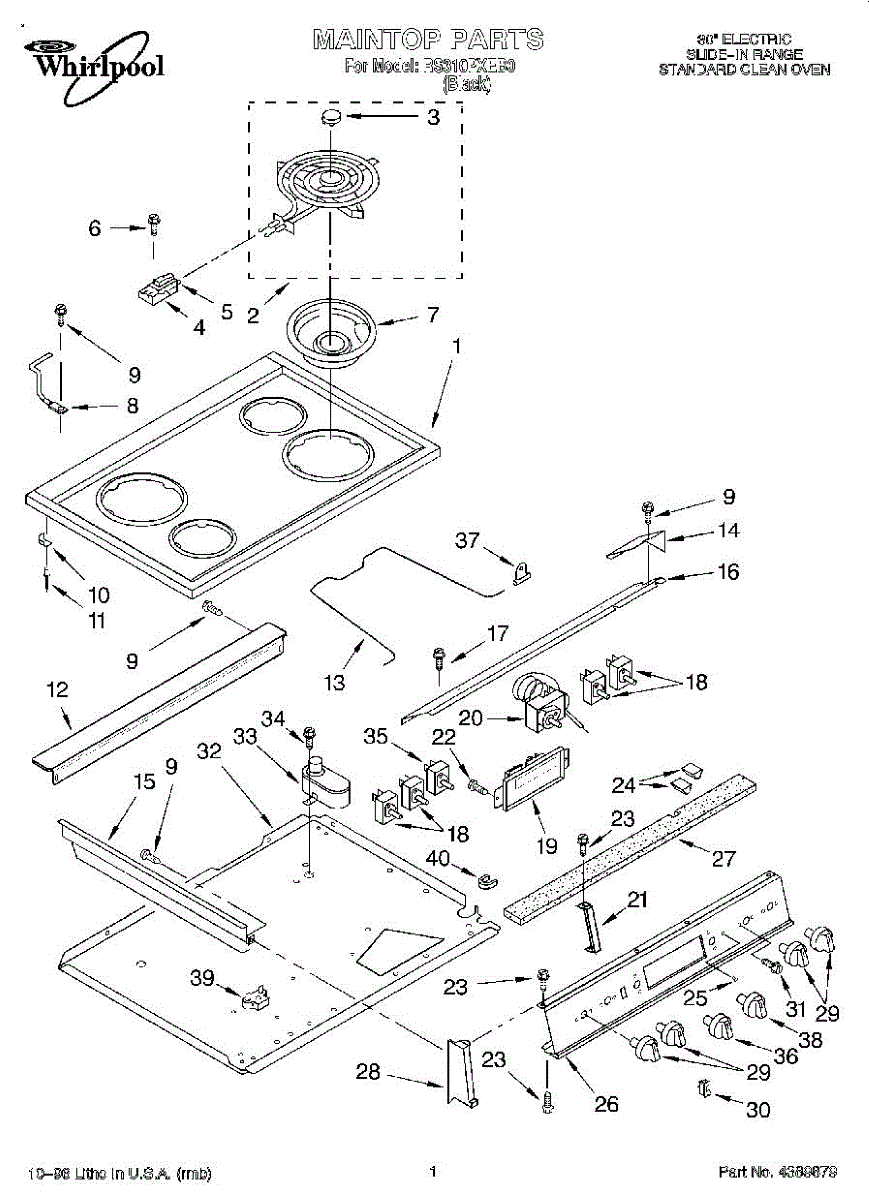

Parts for Whirlpool RS310PXEB0: 01 - Section Parts

Burner not heating or working on your range? This surface heating element restores cooking performance. Simple plug-in replacement in under 10 minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

Burner won't heat or cycles on and off? This infinite switch controls temperature levels on electric range surface elements. DIY repair in 10 minutes.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Oven indicator light not working? This control panel lamp shows when heating elements are active. Simple DIY fix restores visual status feedback.

Red indicator lens snaps over control panel lights to restore visibility. Replace when cracked, faded, or missing. Verify fit with your range model number.

Color: Black. Instruction sheet included.
