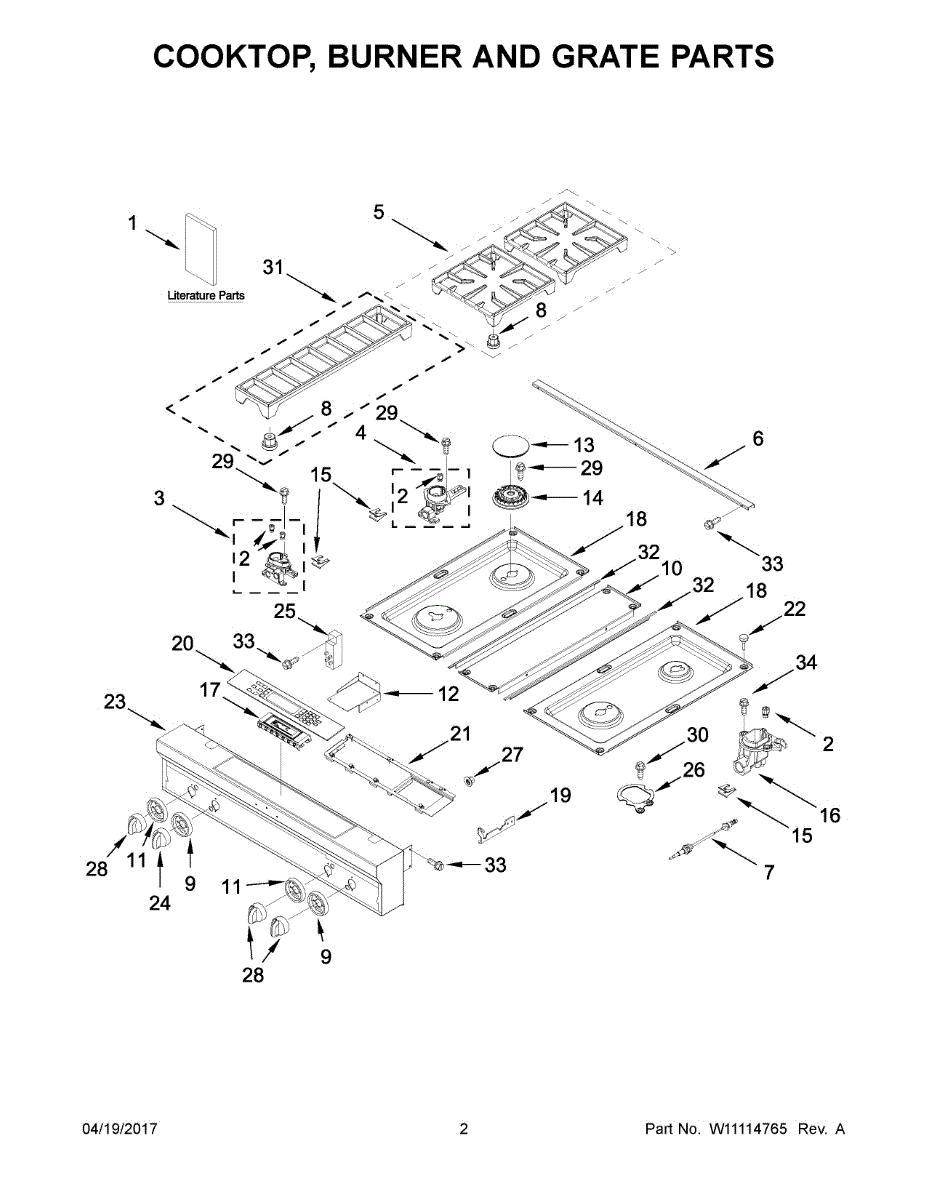

Parts for Kitchenaid KDRS407VBK01: 02 - Cooktop, Burner And Grate Parts

Orifice spud for gas range burners. Threads into the manifold to regulate gas flow. Replace if cracked, stripped, or missing during fuel conversion.

Weak or uneven flame on your gas cooktop? This burner orifice meters gas flow to restore proper flame height and consistent heat. Quick 15-minute fix.

Directs gas flow into the burner for proper ignition and flame control. Replace if cracked, clogged, or damaged to restore consistent gas flow.

This Holder (ORF) secures the related component in place to maintain proper alignment and reliable operation. Replacing a worn or broken holder restores stable mounting and prevents rattling or intermittent function. What it does:

• Secures the ORF component to the appliance chassis to keep parts aligned
• Prevents movement that can cause noise, misalignment, or intermittent operation
• Restores a solid mounting point if the original holder is cracked or broken
• Helps maintain proper spacing so adjacent parts operate without obstruction

• One holder (ORF)

• Disconnect power (and water if applicable) before starting repair
• Basic hand tools typically required; access may involve removing nearby panels
• Inspect surrounding clips and fasteners; replace if damaged to ensure secure fit

This is a metal or finished trim piece that fits along the top edge of the range cooktop surface. It provides a clean, finished appearance and helps seal the gap between the cooktop and the surrounding countertop or cabinet. Replace this trim if it is bent, cracked, discolored, or missing, which can allow grease and debris to collect in hard-to-reach areas.

Fix burner clicking or failure to light with a new surface igniter. Restores reliable spark ignition on gas cooktops and ranges. DIY repair in 15 minutes.

Rubber feet that attach to the underside of cooktop grates. Replace when missing, worn, or cracked to prevent grates from scratching the cooktop surface.

Burner cap sits on top of the burner head to shape the flame and protect from spills. Replace if cracked, chipped, or missing to restore appearance.

Black burner cap for the auxiliary (small) gas burner on your cooktop or range. Replace if cracked, chipped, or missing to restore proper flame shape.

Sits atop the burner head to shape flame and shield from spills. Replace if missing, chipped, or warped to restore proper flame pattern and appearance.

Fix uneven flames or poor simmering on your small burner with this auxiliary burner head. Restores proper flame shape and low-heat control. Simple DIY fix.

Burner head that distributes gas evenly across the burner. Replace if cracked, clogged, or corroded to restore proper flame distribution on your gas cooktop.

Range won't ignite or has delayed ignition? This ignitor retaining clip secures your ignitor to the burner assembly for reliable starts. Simple fix.

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

Fix unresponsive buttons or blank displays on your range. This user interface control board interprets keypad inputs and drives the display panel.

Replacement glass cooking surface for gas cooktops and ranges. Installs as the main top. Order when your original glass is cracked, chipped, or broken.

If your range buttons aren't responding or the display is hard to read, this membrane switch touch pad restores full control. Moderate DIY repair.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Fix unresponsive buttons, cracked displays, or faded controls with this range control panel console assembly. Restores proper function and appearance.

Control knob for gas ranges and cooktops. Installs on the front control panel. Replace if cracked, broken, loose, or missing for proper burner control.

Fix continuous sparking or burners that won't ignite with this spark module. Controls ignition for four surface burners with automatic reignition capability.

Replace your range burner gasket to seal gaps and prevent gas leaks. Install when worn, cracked, or damaged to ensure safe operation. Verify fit with your model.

Mounting nut secures burner components to your range cooktop. Replace if cracked, stripped, or missing to properly fasten burner parts in place.

Push-on control knob for range and cooktop. Replaces worn, cracked, or missing knobs. Restores secure grip and smooth control feel for temperature settings.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Decorative trim panel for gas range or cooktop. Replaces cracked, chipped, or discolored trim pieces along the top edge. Restores appearance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement wire harness for your range. Connects electrical components throughout the unit. Order a new harness if yours is frayed, damaged, or melted.

Wire harness for gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose or broken.

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

Replace your range's internal wire harness if the original is damaged, frayed, or has burnt connectors. This wiring assembly connects electrical components.

Anchor tip bracket for gas ranges. Secures and stabilizes internal components. Replace if bent, broken, or missing to restore proper fitment.

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems. Order a new harness if yours is burned or broken.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.
