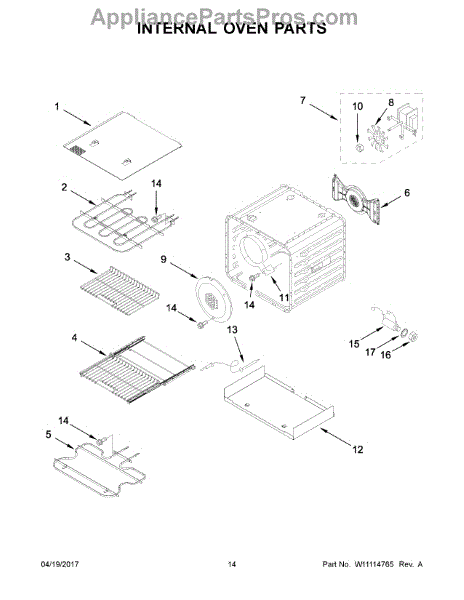

Parts for Kitchenaid KDRS407VBK01: 08 - Internal Oven Parts

Parts for Kitchenaid KDRS407VBK01: 08 - Internal Oven Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: W10160856
$66.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
By: Whirlpool
Part Number: W10115994

This broil heating element provides the upper-oven heat for broiling and high-temperature cooking. Replaces a failed or damaged upper element to restore broil performance and even top-heat browning. What it does:

  • Produces direct top-oven heat used for broiling and finishing dishes
  • Restores broil function when the upper element no longer heats
  • Helps eliminate uneven browning or food that won't crisp on top
  • Shows visible signs of failure such as burning, breakage, or no heat
What's included:
  • One broil (upper oven) heating element
Install notes:
  • Disconnect power (unplug or switch off breaker) before starting any work
  • Handle element carefully to avoid bending or damaging terminals
  • Electrical connections are secure and routed clear of interior surfaces
  • After installation, restore power and test broil function; replace oven light cover or insulation as needed

More
$142.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
5.0 (3)
By: Whirlpool
Part Number: W11186364

Replace a rusty, discolored, or missing oven rack. Slides into side supports to hold cookware at the right height for baking and roasting.

More
$154.95

IN STOCK
Ships Today Guaranteed
Add to Cart
5
By: Whirlpool
Part Number: W11783663
$74.76

IN STOCK
Ships Today Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W10860133

Replacement convection oven baffle for electric ranges. This metal heat spreader directs airflow inside the oven cavity. Order now if yours is warped or damaged.

More
$97.85

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
Product photo
By: Whirlpool
Part Number: W10860984

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

  • Excessive smoke or moisture left in the oven after cooking
  • Oven taking longer to preheat and cook due to poor air circulation
  • Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$107.38

IN STOCK
Ships Today Guaranteed
Add to Cart
9
By: Whirlpool
Part Number: W10261523
$25.19

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: W10794042

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

  • Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
  • Restores tight connections that can cause vibration, noise, or looseness when worn or missing
  • Commonly used where a small, serviceable nut is required for secure assembly
  • Helps prevent components from coming detached during normal use
What's included: One retaining nut Install notes:
  • Disconnect power and follow appliance-specific safety procedures before servicing
  • Use the correct size wrench or socket; start threads by hand to avoid cross-threading
  • Tighten securely but avoid overtightening to prevent damage to studs or mating parts
  • If threads are damaged, replace the mating stud or fastener as needed

More
$8.71

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W11643125

This is a convection heating element for an oven, typically a circular or loop-shaped element located at the rear wall of the oven cavity near the convection fan. It provides even heat distribution when using the convection cooking mode. Replace this element if convection baking produces uneven results, the element shows visible damage or burn-through spots, or the convection mode fails to heat at all.

More
$64.70

IN STOCK
Ships Today Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W10160845
$47.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Best Seller
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP9755542

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

More
$75.95

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Best Seller
Product photo
4.6 (7)
By: Whirlpool
Part Number: WP4449154

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: 8186589

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

More
$79.24

IN STOCK
Ships Today Guaranteed
Add to Cart
16
By: Whirlpool
Part Number: WP9755546

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

More
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Whirlpool
Part Number: WP9755547

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

More
$4.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
