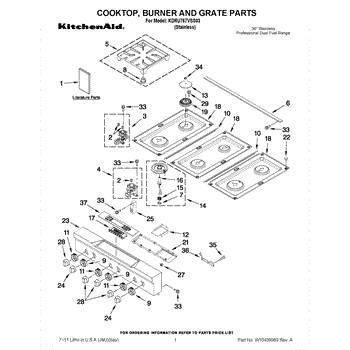

Parts for Kitchenaid KDRU767VSS03: 01 - Cooktop, Burner And Grate Parts

Parts for Kitchenaid KDRU767VSS03: 01 - Cooktop, Burner And Grate Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: 9762761
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1
By: Whirlpool
Part Number: W10065852
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: WPW10256128
$38.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
Product photo
By: Whirlpool
Part Number: W10340424

This gas burner orifice spud regulates gas flow to your range's burners. Replace if cracked, clogged, or damaged to restore proper burner operation.

More
$54.25

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
By: Whirlpool
Part Number: W11051480

Weak or uneven flame on your gas cooktop? This burner orifice meters gas flow to restore proper flame height and consistent heat. Quick 15-minute fix.

More
$49.51

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
By: Whirlpool
Part Number: W10819958

Directs gas flow into the burner for proper ignition and flame control. Replace if cracked, clogged, or damaged to restore consistent gas flow.

More
$50.57

IN STOCK
Ships Today Guaranteed
Add to Cart
3
By: Whirlpool
Part Number: WPW10364555

Fixes weak or uneven flames caused by misaligned gas flow. This orifice holder assembly secures the burner orifice for proper gas delivery and ignition.

More
$66.78

IN STOCK
Ships Today Guaranteed
Add to Cart
4
By: Whirlpool
Part Number: WPW10364556

Replace your cooktop's holder bracket if the original is cracked, broken, or missing. This structural component secures internal parts in place.

More
$59.48

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
By: Whirlpool
Part Number: W10282659

Holds the brass orifice that regulates gas flow in range burners. Replace if cracked, broken, or missing to secure the orifice properly.

More
$30.62

IN STOCK
Ships Today Guaranteed
Add to Cart
5
5.0 (2)
By: Whirlpool
Part Number: W11569347

Replace broken, cracked, or worn grates on your gas cooktop or range. This grate kit restores a sturdy, level surface to safely support pots and pans.

More
$208.28

IN STOCK
Ships Today Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W10269217

Decorative trim piece that frames the perimeter of your cooktop surface. Replace if cracked, chipped, discolored, or missing to restore appearance.

More
$141.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
Product photo
By: Whirlpool
Part Number: 8286863

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

  • Loosened racks skewing pans off-center
  • Detached wires posing burn and electrical hazards
  • Rattling components exacerbating noises
  • Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

More
$44.24

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Best Seller
Product photo
5.0 (14)
By: Whirlpool
Part Number: W10185266

Rubber feet that attach to the bottom of cooktop grates. Replace when missing, worn, cracked, or damaged to restore stability and protect the cooktop surface.

More
$11.78

IN STOCK
Ships Today Guaranteed
Add to Cart
9
By: Whirlpool
Part Number: W10261510

Control knob bezel for gas ranges and cooktops. Decorative trim ring that surrounds the control knob. Replace if cracked, discolored, or missing.

More
$40.95

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: W10271524

Decorative trim panel for gas range or cooktop. Replaces cracked, chipped, or discolored trim pieces along the top edge. Restores appearance.

More
$104.34

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W10261512

Replace a cracked or missing knob bezel on your range or gas cooktop. This decorative trim ring installs around the control knob for a finished look.

More
$40.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Whirlpool
Part Number: W10367052

Switch mounting bracket secures control switches in place on your range. Replace if the original bracket is bent, broken, or missing to properly mount switches.

More
$46.35

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
By: Whirlpool
Part Number: WPW10256032

Burner cap sits on top of the burner head to shape the flame and protect from spills. Replace if cracked, chipped, or missing to restore appearance.

More
$63.65

IN STOCK
Ships Today Guaranteed
Add to Cart
13
Product photo
By: Whirlpool
Part Number: WPW10364463

Black burner cap for the auxiliary (small) gas burner on your cooktop or range. Replace if cracked, chipped, or missing to restore proper flame shape.

More
$47.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10256034

Sits atop the burner head to shape flame and shield from spills. Replace if missing, chipped, or warped to restore proper flame pattern and appearance.

More
$89.27

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
By: Whirlpool
Part Number: WPW10256032

Burner cap sits on top of the burner head to shape the flame and protect from spills. Replace if cracked, chipped, or missing to restore appearance.

More
$63.65

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10256027

Burner head that distributes gas evenly across the burner. Replace if cracked, clogged, or corroded to restore proper flame distribution on your gas cooktop.

More
$65.74

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11106799

Distributes gas evenly through burner ports on gas cooktops and ranges. Replace if cracked, clogged, or worn to restore uniform flame distribution.

More
$69.95

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: W10256046

Secures panels and components on your cooktop, preventing rattles and misalignment. Replace when parts become loose or clips break. Confirm fit with model number.

More
$7.95

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: 8286863

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

  • Loosened racks skewing pans off-center
  • Detached wires posing burn and electrical hazards
  • Rattling components exacerbating noises
  • Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

More
$44.24

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
By: Whirlpool
Part Number: WPW10145991

If your gas cooktop burner won't light or clicks constantly, a worn electrode is often the cause. This igniter creates the spark to ignite gas reliably.

More
$53.21

IN STOCK
Ships Today Guaranteed
Add to Cart
16
By: Whirlpool
Part Number: W11601369

Fix burners that won't ignite or igniters that won't stop clicking. This spark module generates the high-voltage spark needed to light gas burners.

More
$56.34

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Best Seller
Product photo
By: Whirlpool
Part Number: W10833887

If your gas burner won't light or clicking but no spark, the spark electrode may be faulty. This part generates the spark to ignite gas burners.

More
$22.53

IN STOCK
Ships Today Guaranteed
Add to Cart
17
By: Whirlpool
Part Number: WPW10533029
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
By: Whirlpool
Part Number: W10352966

Replace a cracked, chipped, or damaged glass cooktop surface on your range. Restores the smooth cooking area and provides a clean, safe surface.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
By: Whirlpool
Part Number: W10352967

Complete cooktop assembly that forms the cook surface on gas ranges. Replaces a cracked, damaged, or worn top. Includes mounting points for burners.

More
$156.57

IN STOCK
Ships Today Guaranteed
Add to Cart
18
By: Whirlpool
Part Number: W10352969

Replacement glass cooking surface for gas cooktops and ranges. Installs as the main top. Order when your original glass is cracked, chipped, or broken.

More
$156.63

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10282515

Fix uneven flames or poor simmering on your small burner with this auxiliary burner head. Restores proper flame shape and low-heat control. Simple DIY fix.

More
$81.31

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10256027

Burner head that distributes gas evenly across the burner. Replace if cracked, clogged, or corroded to restore proper flame distribution on your gas cooktop.

More
$65.74

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11106799

Distributes gas evenly through burner ports on gas cooktops and ranges. Replace if cracked, clogged, or worn to restore uniform flame distribution.

More
$69.95

IN STOCK
Ships Today Guaranteed
Add to Cart
21
By: Whirlpool
Part Number: W10250477
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo
By: Whirlpool
Part Number: 4448520

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

  • Acts as a cushion between the door and cabinet, absorbing impact during closing
  • Helps keep the door aligned and reduces rattling or vibration during use
  • Prevents metal-to-metal contact that can cause chipping, scratching, or noise
  • Commonly replaced when worn, flattened, cracked, or missing
What's included:
  • One rubber door bumper
Install notes:
  • Remove power to the appliance before accessing the door area or hinges
  • Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
  • Inspect surrounding mounting boss for damage; replace if cracked or deformed

More
$9.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
By: Whirlpool
Part Number: W10115886
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24
By: Whirlpool
Part Number: W11244176

Control knob for gas ranges and cooktops. Installs on the front control panel. Replace if cracked, broken, loose, or missing for proper burner control.

More
$62.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Whirlpool
Part Number: W11601369

Fix burners that won't ignite or igniters that won't stop clicking. This spark module generates the high-voltage spark needed to light gas burners.

More
$56.34

IN STOCK
Ships Today Guaranteed
Add to Cart
28
Product photo
By: Whirlpool
Part Number: W11177673

Push-on control knob for range and cooktop. Replaces worn, cracked, or missing knobs. Restores secure grip and smooth control feel for temperature settings.

More
$59.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
29
By: Whirlpool
Part Number: 3196265

Mounting screw for gas ranges. Secures components and panels in place. Order a replacement if your original screw is lost, stripped, or damaged.

More
$21.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
33
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Today Guaranteed
Add to Cart
34

Nut

By: Whirlpool
Part Number: W10115953
$13.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
35
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP74003976

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

  • Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
  • Holds panels and moving components at the correct distance to prevent binding or friction.
  • A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
  • Used where a smooth-bearing surface and controlled clearance are required between parts.
What's included: One shoulder screw. Install notes:
  • Disconnect power to the appliance (unplug or shut off breaker) before servicing.
  • Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
  • Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
36
By: Whirlpool
Part Number: W10130759
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
36
By: Whirlpool
Part Number: W10130760
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37
By: Whirlpool
Part Number: WPW10116103
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
