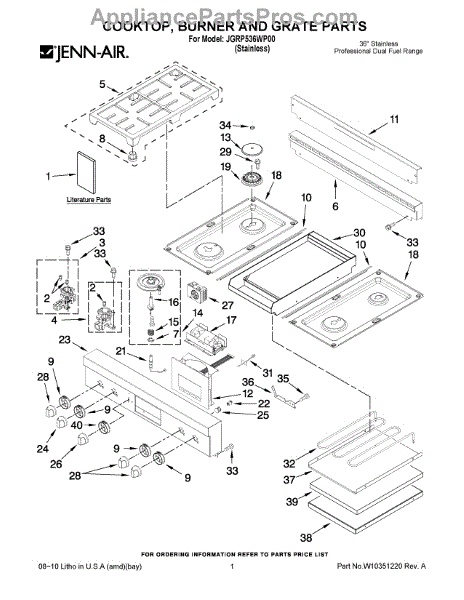

Parts for Maytag JGRP536WP00: 01 - Cooktop, Burner And Grate Parts

This injector holder assembly secures the injector in place within the appliance's fuel delivery area, keeping the injector positioned for reliable ignition and consistent fuel flow. Replaces a worn or damaged holder to restore proper injector alignment. What it does:

• Holds and positions the fuel injector so the injector can deliver fuel to the burner or burner tube
• Maintains correct injector alignment to support consistent ignition and combustion
• Can address symptoms such as misaligned injector, burner ignition issues, or uneven flame distribution
• Helps prevent injector movement that can lead to improper fuel delivery

• Turn off gas and power to the appliance before starting work
• Follow OEM service instructions and use appropriate tools for removal and installation
• Inspect surrounding seals and connections; replace any damaged components
• If you smell gas or suspect a leak, stop work immediately.

The Holder Orifice is an OEM component specifically designed for Whirlpool ranges. Located inside the gas burner unit, the orifice holds the brass valve that regulates gas flow to each burner flame. Its sturdy construction and precisely sized opening ensure a stable, controlled fuel supply.

Causes of a bad holder orifice can include mineral deposits building over time which diminish sizing accuracy or cracks developing that cause leaks.

Symptoms of a bad holder orifice include:

• Burners emitting unstable or sporadic flames of abnormal sizes
• Inability to efficiently ignite or achieve proper burner settings
• Strong gas or fuel smells coming from the range top
• Discolored or corroded brass components

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooking appliances.

The Burner Grate is an OEM part for Whirlpool ranges. It sits above the burner elements underneath the cooktop surface, allowing heat to radiate up through the grates to cookware. The burner grate disperses heat evenly while remaining cool to the touch when not in use.

Symptoms of a bad burner grate can include:

• Warping or sagging from long term heat exposure
• Discoloration or material deterioration over time
• Loose or uneven fit that allows spillage between burner holes

Causes of failure may be natural wear and tear from extended cooking use, damage from improper cleaning procedures, or malformations due to use of oversized cookware.

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Grate Pad is an OEM part for Whirlpool cooktops. It is designed to fit onto the grates of the cooktop, providing stability and protecting the cooktop surface from scratches and damage. This is a kit of four grate pads. If you also need the adhesive, order part number W10841140.

You should replace the grate pads if they become worn out or damaged. Causes of bad grate pads can include exposure to high heat over time, physical damage from heavy cookware, or regular wear and tear from frequent use.

Symptoms of bad grate pads include:

• Grates that wobble or do not sit securely
• Scratches or damage on the cooktop surface
• Uneven cooking due to unstable grates

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This keypad assembly is the touch-sensitive control interface for your appliance. It registers your button presses and relays them to the electronic control so cycles start, settings change, and the unit responds reliably to your commands.

• Provides the sealed touchpad/membrane switch that sends user inputs to the main control
• Failure may cause unresponsive or intermittent buttons, or only some keys working
• Can trigger random beeping or "stuck key" style error messages
• May prevent starting, stopping, or changing settings

• Disconnect power at the breaker before servicing
• Access the control console; carefully route and seat the ribbon cable—do not crease it
• Ensure connector tabs are fully latched and the cable is straight/aligned
• Reassemble and test all keypad functions before finalizing the repair

This replacement burner cap covers the gas burner head to help shape and stabilize the flame for efficient cooking. It restores proper flame pattern and protects the burner head from spills and debris. What it does:

• Seats over the burner head to direct and shape the gas flame for even heat
• Helps prevent flame lifting, sputtering, or uneven heating when properly seated
• Protects the burner head from food spills and corrosion
• Simple, low-profile part designed to match the original burner geometry

• One burner cap (type D)

• Ensure the range is off and the burner is cool before installing
• Lift off the old cap, set the new cap flat and centered on the burner head
• No special tools required; verify the cap sits evenly and does not wobble
• Do not use a cracked or warped cap — replace if damaged

This burner cap (C) is the replaceable top piece that sits on a gas burner head to help shape the flame and protect the burner ports. It restores proper flame pattern and helps maintain consistent heat across the cooking surface. What it does:

• Centers and shapes the burner flame for more even heat distribution during cooking
• Protects the burner head and ports from food spills, debris, and corrosion
• Helps prevent irregular or yellow flames caused by misaligned or damaged caps
• Works with the existing burner base to maintain safe, consistent burner operation

• Allow the cooktop and burner to fully cool and shut off gas or power before servicing
• Remove debris and verify the burner head is clean and properly seated before placing the cap
• Set the cap flat on the burner head so it sits evenly; misalignment can cause flame issues

This auxiliary burner cap replaces a worn or damaged cap on gas cooktop/range auxiliary burners to help restore proper flame shape and heat distribution. Designed for a direct fit on compatible OEM burner bases. What it does:

• Covers the auxiliary burner head to direct flame and protect the burner ports
• Helps improve even heating and consistent flame pattern when properly seated
• Commonly replaced when the cap is cracked, warped, or shows heavy corrosion
• Fits onto the burner base; does not include the burner base, igniter, or grates

• Allow the cooktop to cool and disconnect power/gas per appliance safety instructions before servicing
• Remove grates and lift off the old cap; clean burner base of debris before installing the new cap
• Align and seat the cap firmly on the burner base so it sits flat and centered

This burner top assembly restores the burner base that supports the cooktop burner cap and gas flow components for safe, reliable ignition and flame control. It's a direct-fit replacement designed for compatible gas ranges. What it does

• Provides the support and housing for the burner cap, orifice and ignition path
• Restores stable, centered burner cap placement for even flame distribution
• Helps resolve symptoms like a loose or wobbly burner cap, intermittent ignition, or uneven flame
• Works with existing igniters, caps and valves when those components are functioning properly

• One burner top assembly (burner base) as described

• Disconnect the appliance from power and turn off the gas supply before servicing
• Remove cooktop grates and burner caps to access and replace the burner base
• Use basic hand tools; ensure all gas connections and igniter alignment are correct before testing

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This single surface burner spark electrode generates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and reduces "click with no flame" at that burner.

• Creates a high-voltage spark at the burner to ignite gas
• Positions the spark at the burner head via a ceramic-insulated tip
• Common symptoms: burner won't light, no spark at that burner, or intermittent ignition
• Visual clues of failure can include cracked/chipped porcelain or a burned electrode tip

• Disconnect electrical power and shut off gas supply before servicing
• Allow the appliance to cool; remove burner cap/head to access the electrode
• Seat the ceramic insulator fully and position the tip correctly near the burner
• Reassemble and test ignition before finalizing the repair

This is the dual surface burner spark electrode for select gas cooktops/ranges. It generates the spark needed to ignite the burner, helping restore reliable lighting when a burner won't start or only lights intermittently.

• Produces the ignition spark at the burner head
• Helps address burners that won't ignite, click without lighting, or light inconsistently
• Can resolve weak or no spark conditions at the affected burner position(s)
• Restores dependable burner ignition when the original electrode is worn, cracked, or fouled

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop/range to cool fully
• Access typically requires removing grates, burner caps, and top panel
• Handle the ceramic insulator carefully; avoid bending the electrode tips

This user interface power control board operates the dishwasher's control panel, supplying low-voltage power and interpreting button presses. Replacing a failed UI board can restore a responsive display and dependable cycle selection when controls are dark or erratic.

• Powers the display and touchpad/console for reliable operation
• Interprets selections and communicates with the main control
• Drives status lights/indicators on the control panel
• Common symptoms: blank or flickering display, unresponsive or intermittent buttons, cycles that won't start, or random beeps/lights

• Disconnect electrical power before servicing; verify no voltage is present
• Use ESD precautions; handle the circuit board by the edges only
• Access the console/control panel, label or photograph all connectors, and transfer any mounting hardware from the old board
• Restore power and run any model-specific diagnostics or resets per the service manual

This cooktop top panel replaces the damaged or worn top surface on compatible Whirlpool cooktops to restore a clean, stable cooking surface and proper fit. It's the exterior top assembly that provides the flat work area for burners and controls. What it does:

• Replaces a cracked, chipped or heavily scratched cooktop surface to improve appearance and safety
• Provides the stable mounting surface for burners, grates and control components
• Restores correct spacing and support for heating elements to reduce wobble or misalignment
• Helps prevent spills from reaching internal components when the top is intact

• One cooktop top panel

• Disconnect power to the appliance before starting; glass/metal edges can be sharp
• Remove burners, grates and control knobs as needed to lift out the old top
• Handle the replacement panel carefully; use two people for larger panels to avoid breakage
• Follow the appliance service manual for exact steps and torque

This burner head (Type D) replaces a damaged or worn burner component to restore proper gas flow and even flame distribution on compatible cooktops. It's a direct-fit part when your existing burner is cracked, warped, or corroded. What it does:

• Directs gas to the cooktop ports so the burner produces an even, controlled flame
• Restores consistent heating when flames are weak, uneven, or drifting
• Prevents gas leakage at the burner surface when seated and secured correctly
• Helps eliminate hotspots caused by a warped or damaged burner surface

• Turn off gas supply and power to the appliance before starting work
• Ensure burner is cool and remove grates and burner caps to access the head
• Seat the new burner head fully on its base so ports align; test for proper flame after reassembly
• If you smell gas, can't reassemble, or the burner still behaves abnormally, stop.

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This surface igniter lights gas burners on compatible ranges so burners ignite quickly and reliably. Replaces a cracked, worn or non-sparking igniter to restore normal ignition and help your cooktop operate safely. What it does:

• Sends the spark that ignites the burner when the control knob is turned
• Commonly replaces igniters that click repeatedly, spark without lighting, or don't spark at all
• Works with the burner head and valve to initiate flame during startup
• Helps prevent delayed ignition and assists consistent burner performance

• One surface igniter

• Disconnect power and shut off gas supply before starting any service
• Handle the ceramic igniter element carefully; it is fragile and can crack if dropped or flexed
• Inspect wiring and connector for heat damage; replace connectors or harnesses if corroded

This indicator light lamp assembly notifies you when a control or function is active and restores visible status feedback for your appliance. It's a small, direct-replacement lamp used on control panels and status indicators. What it does:

• Illuminates control-panel indicators so you can see operating status and selected settings.
• Replaces a dim, flickering, or non-working indicator light.
• Helps diagnose control and user-interface issues by restoring visible feedback.
• Fits into the panel socket and connects to the existing wiring harness.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Access typically requires removing the control or trim panel; keep screws and fasteners organized.
• Handle the lamp and lens carefully to avoid damage; do not force-fit.

This infinite switch is the temperature control for a cooktop griddle, letting you adjust heat smoothly for even cooking. Replaces a worn or failed griddle control to restore reliable temperature regulation and consistent results. What it does:

• Regulates griddle heat by providing variable power levels to the element
• Helps restore proper heating when griddle stays too cool, won't heat, or has inconsistent temperature
• Operates as the user control input for turning heat up or down on the griddle zone
• Compatible with systems that use an infinite (continuously variable) control for temperature adjustment

• One infinite switch (griddle control) as shown

• Disconnect power to the appliance before attempting service to avoid shock hazard
• Access may require removing cooktop or control panel
• Verify harness connector orientation and secure mounting; replace any damaged wiring or fasteners

The Whirlpool screw is an OEM replacement part responsible for fastening and securing different components in the washer. This screw is used in various locations throughout the appliance, such as attaching panels, brackets, and other parts together. Its main function is to provide a tight and reliable connection, preventing any loose or unstable components that could disrupt the washer's operation.

This part fixes the following symptoms:

• Loose or unstable components in the washer
• Visible signs of wear, rust, or damage on the screw
• Unusual noises or rattling sounds during washer operation

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement grill (broil) heating element restores high, direct heat for broiling and browning in the oven. It lets you crisp and brown food quickly so broil functions work like new. What it does:

• Provides the intense direct heat required for broiling and grilling
• Replaces a burnt-out or broken upper oven element to restore broil performance
• Helps eliminate problems like food not browning or uneven broiling
• Visible breaks, blisters, or open circuits on the element are common failure signs

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle element carefully to avoid bending or damaging the terminals
• Reconnect wiring securely

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
