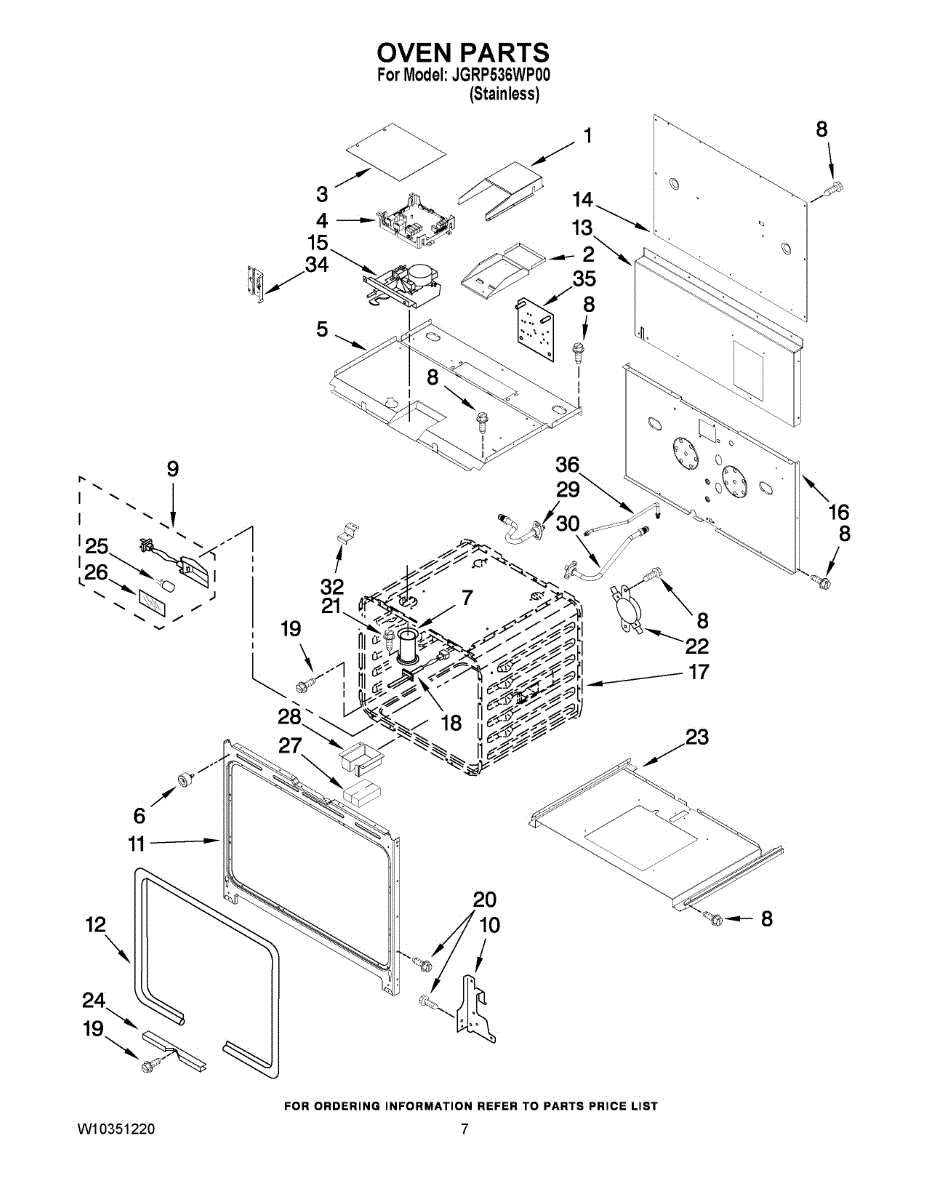

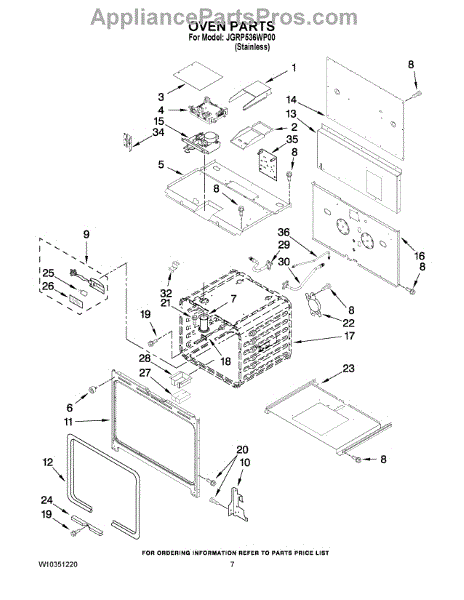

Parts for Maytag JGRP536WP00: 05 - Oven Parts

If your range display blanks out, shows error codes like F8:E0, or doesn't respond to controls, the electronic control board likely failed. Restores normal operation.

This is a replacement top oven cavity that restores the oven compartment for compatible double-oven ranges, providing a safe, clean chamber for baking and broiling. Use it when the original cavity is dented, cracked, or corroded. What it does:

• Replaces the upper oven's main cavity that houses heating elements and racks
• Restores proper clearance and structural support for oven components
• Helps resolve issues like warped cavity walls, visible damage, or poor sealing
• Prevents food debris and heat escape caused by a damaged oven interior

• One top oven cavity

• Disconnect power and gas before beginning repairs
• Removal typically requires detaching the oven door, control panel, and/or cooktop; follow OEM service instructions
• Use proper lifting assistance — cavity assemblies can be heavy and awkward
• Retain original fasteners and replace any damaged seals or insulation per OEM guidance

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Illuminates oven interior for monitoring food without opening door. Replace when bulb burns out or flickers. High-temperature rated. Verify compatibility.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Restores a tight seal between your oven door and cavity to maintain proper temperatures. Replace if you notice heat escaping or uneven cooking. Confirm fit with your model number.

Oven won't heat or door won't stay closed? A faulty door latch prevents proper sealing and signals. This replacement restores secure closure and heating.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven won't heat properly or overheats after self-cleaning? A faulty lower thermostat often causes temperature regulation issues. Moderate DIY repair.

Replace your range's main bottom frame assembly if the structural support is cracked, damaged, or corroded. Installs at the base of the unit to restore stability.

Illuminates your oven cavity for safe cooking monitoring. Replace when burned out or dim. Confirm fit with your model number before ordering.

This is a clear glass or plastic lens cover that protects the interior oven light bulb from heat, grease, and food splatter. It snaps or screws into place over the light socket inside the oven cavity. Replace this lens if it is cracked, discolored, missing, or if it no longer stays securely in position.

Gas supply tube connects your range to the gas line. Replace if tube is cracked, kinked, corroded, or leaking. Essential for safe gas flow to burners.

Gas tubing for ranges. Connects gas supply to burners or oven components. Replace if cracked, kinked, damaged, or leaking to restore safe operation.

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
