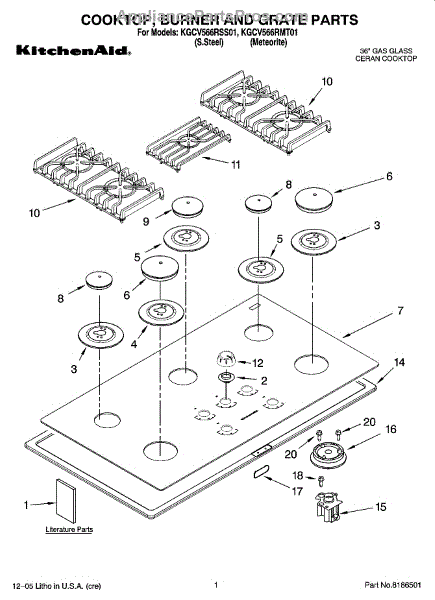

Parts for Kitchenaid KGCV566RSS01: 01 - Cooktop, Burner And Grate Parts

The Grommet is an OEM part for Whirlpool cooktops. This part provides a secure fit and cushioning for the control knobs on the cooktop, ensuring smooth operation and preventing damage to the control panel.

Causes of a bad knob grommet can include general wear and tear, exposure to high temperatures, or damage from frequent use.

Symptoms of a bad knob grommet include:

• Loose or wobbly control knobs
• Difficulty in turning the knobs
• Knobs not staying in place or falling off
• Visible cracks or wear in the grommet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement control knob cap that restores the appearance and proper fit of a cooktop or range front control knob. Matches the original coal matte black finish for a seamless, like-new look. What it does:

• Covers and protects the end of a front control knob while providing the correct surface and color
• Restores worn, cracked, or missing caps so the knob fits securely and operates as intended
• Helps prevent dirt and moisture from reaching the underlying knob internals
• Matches OEM finish to keep controls visually consistent

• One coal matte black control knob cap (RF/LF) as shown

• Removes and installs by hand; pull off the old cap and press the replacement into place until seated
• Disconnect power to the range/cooktop before working near electrical components as a safety precaution

This replacement cap restores the finished look of a damaged or missing control cap and helps protect the underlying control shaft and fastener. Matches the coal matte black finish for a factory appearance. What it does:

• Covers and protects the control shaft and retaining screw from debris and wear
• Restores a worn, cracked or missing cap so the control looks like new
• Helps keep the control knob seated and stable during use
• Useful when the original cap is chipped, faded or cosmetically damaged

• Unplug the appliance or shut off power at the breaker before servicing
• Remove the control knob (pull straight off) to access the cap if needed
• Press the cap into place over the control shaft until it snaps or seats securely
• If a retaining screw is present, verify fit before reassembly; do not force or modify the part

This replacement knob cap restores the look and function of a cooktop or range control knob by covering the knob hub and providing a finished, heat-resistant surface. It's a simple cosmetic and protective fix for worn or missing caps. What it does:

• Covers and protects the exposed knob hub from dirt, grease and wear
• Restores the original appearance when caps are scratched, faded or missing
• Provides the correct surface for turning control knobs comfortably and safely
• Helps keep spills and debris out of the knob shaft area, reducing buildup

• Before installing, make sure the appliance is off and cooled; disconnect power if recommended by your appliance manual
• Push the cap firmly onto the knob hub until it seats; do not force if it won't align
• Inspect the knob and shaft for damage; replace the entire knob assembly if the shaft or mechanism is worn

This burner orifice holder secures the gas orifice in the burner assembly to help maintain consistent gas flow and reliable ignition. Replace a worn or damaged holder to restore proper burner performance. What it does:

• Holds the burner orifice in place so gas is directed correctly to the burner port.
• Helps maintain steady flame shape and combustion; a damaged holder can cause weak, uneven, or yellow flames.
• Can contribute to delayed ignition or burners that won't light if loose or broken.
• Keeps the orifice aligned with the burner tube for consistent operation.

• One orifice holder

• Shut off gas supply and electrical power before servicing the appliance.
• Allow the appliance to cool fully; inspect surrounding parts and orifice for debris before installation.
• Replace only with the exact part number; secure the holder snugly but avoid overtightening.

This orifice holder routes gas from the surface burner valve to the burner head and supports proper burner alignment. Replacing a damaged holder helps restore reliable ignition and steady, even flame on your cooktop/range. What it does:

• Directs gas from the valve to the burner head for correct flame output
• Positions and supports the burner head for stable operation
• Helps maintain proper igniter alignment for consistent lighting
• Common failure symptoms include delayed or no ignition, weak/uneven flame, or a burner head that won't sit securely

• 1 orifice holder assembly

• Disconnect power and shut off gas supply; allow the appliance to cool before servicing
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Transfer the existing orifice spud, screws, gasket, and spark electrode as required by your model
• After reassembly, restore gas and check connections with a soapy-water solution per safety best practices

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
