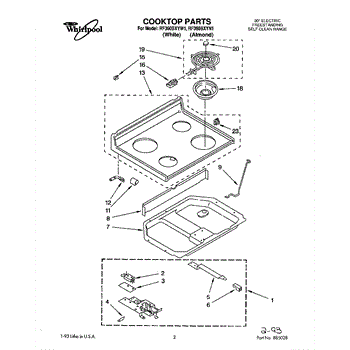

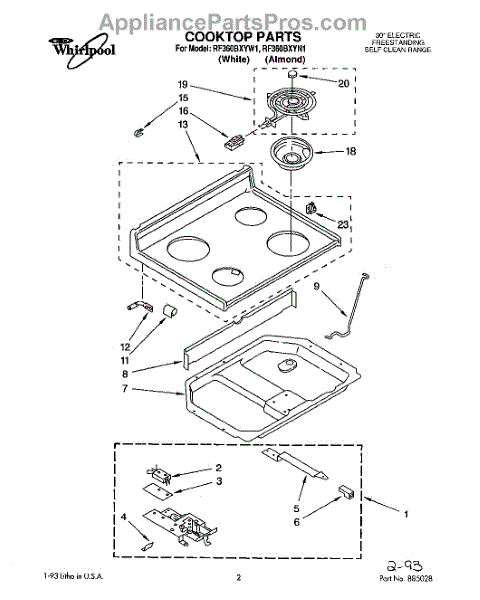

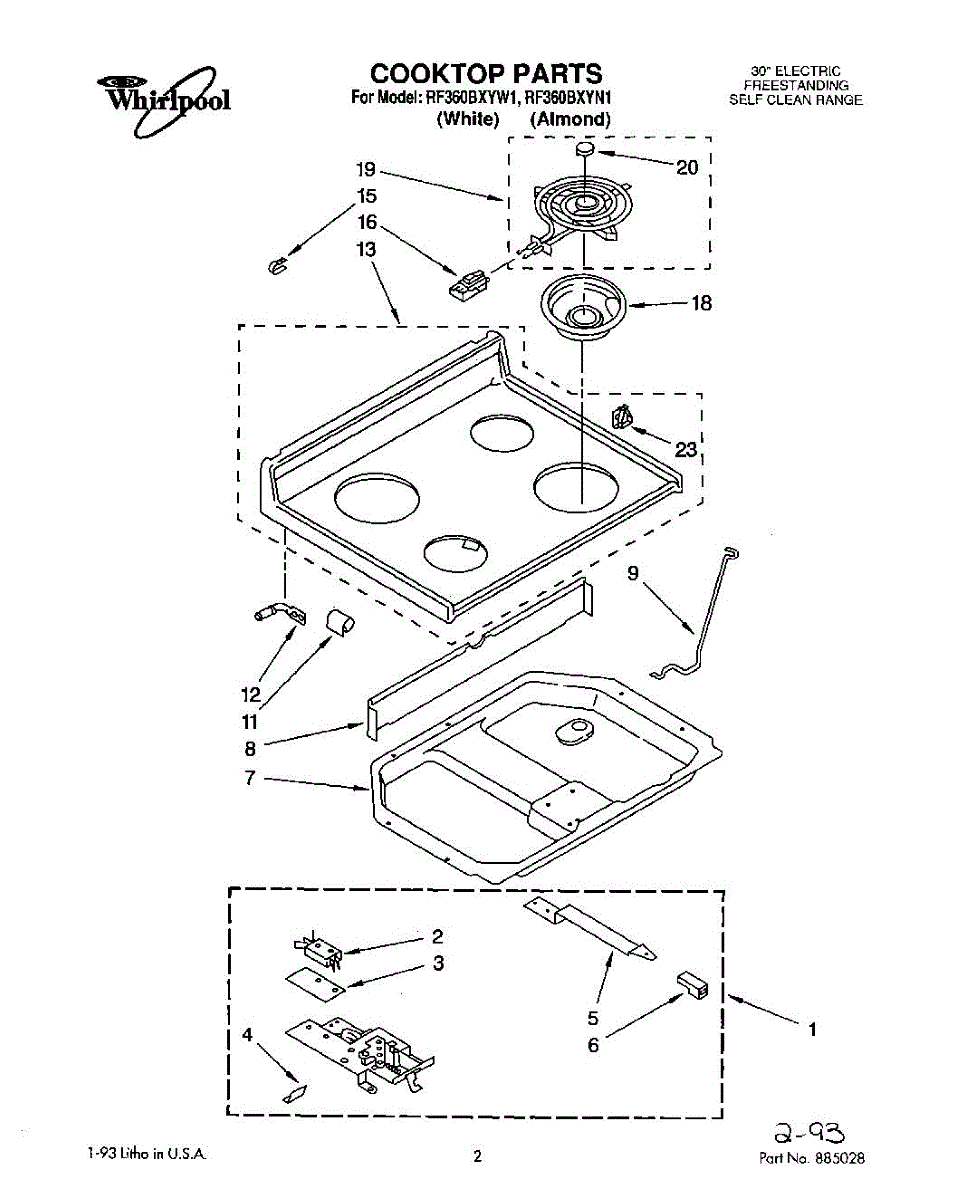

Parts for Whirlpool RF360BXYN1: 01 - Cooktop, Lit / Optional Parts

Specs: 6 x 3/8B

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Color: Black. No longer available in white

10 - 16 x 1/2

Specs: 10-16 x 1/2 inch.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

Size: 6-32 x 9/32 inch.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

Replacement 8 inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills. Replace when rusted, stained, or worn.

Drip pan installs beneath burner elements to catch spills and crumbs. Replace if cracked, rusted, stained, or worn. Keeps your stovetop clean.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

This part has been discontinued and is no longer available.

Replacement fastening nut that secures components to threaded studs or bolts on your range. Needed when original nut is missing, worn, or stripped.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

This part has been discontinued and is no longer available.
