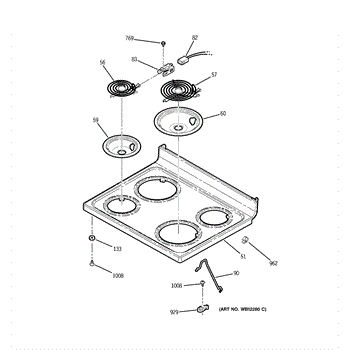

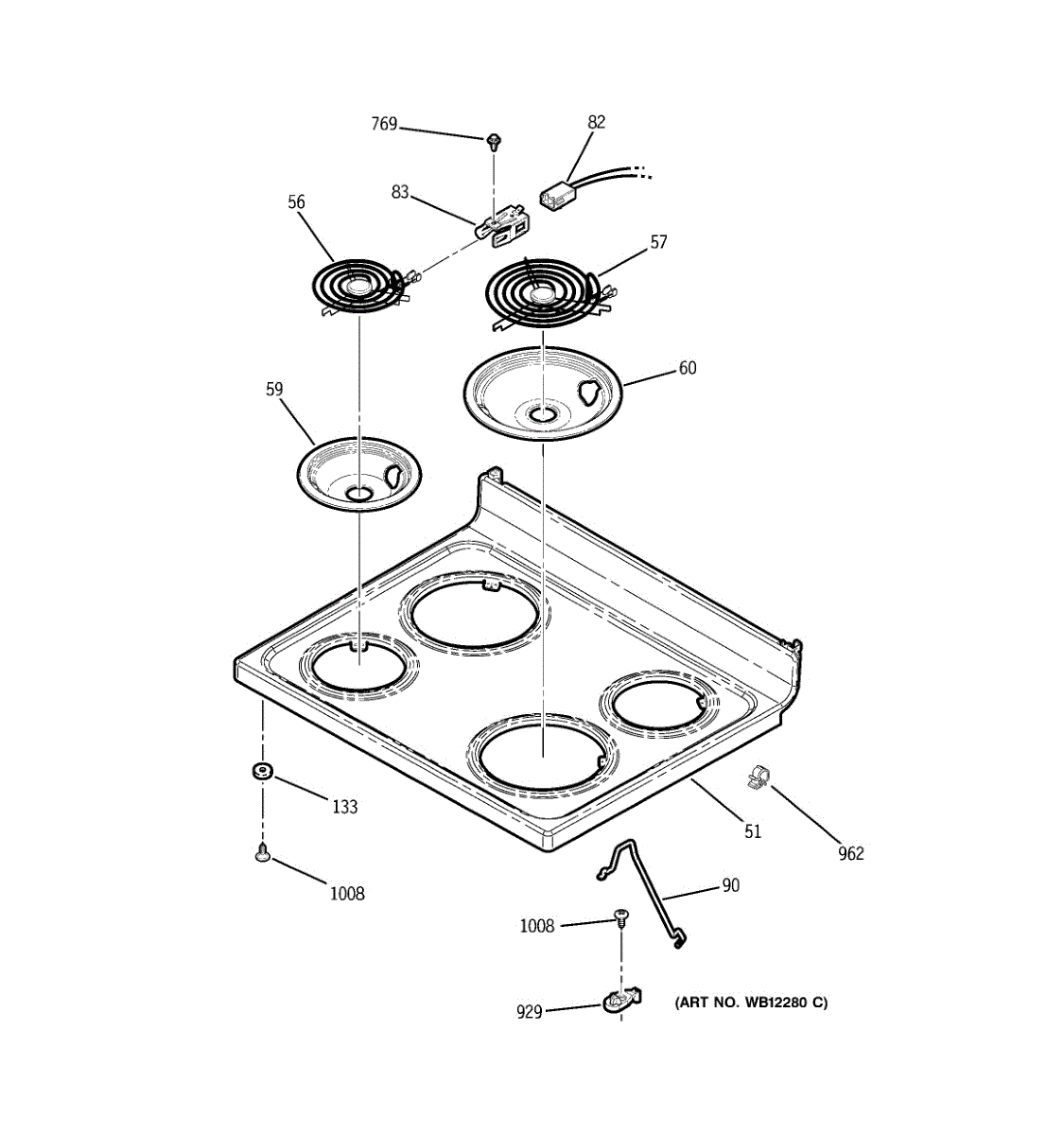

Parts for Ge JB250DF1BB: 02 - Cooktop Parts

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Surface Heating Element is an OEM part for GE ranges. This element is responsible for providing heat on the stovetop, allowing you to cook food efficiently and precisely. It ensures even heat distribution across your cookware, contributing to optimal cooking performance.

Causes of a bad surface heating element can include wear and tear from regular use, damage due to spills or impact, or electrical issues such as short circuits. Over time, these factors can lead to the element malfunctioning or failing to heat up.

Symptoms of a bad surface heating element include:

• Element not heating up or only partially heating
• Uneven heating across the element
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This clip receptacle is a small retaining clip used in select cooking appliances. It secures a mating receptacle or component so it stays properly positioned and connected for consistent operation.

• Retains a receptacle or component at its mounting point to prevent movement
• Helps maintain correct alignment and a stable connection
• Replaces a bent, fatigued, or missing clip
• Common symptoms include a loose or shifting part, intermittent operation, or a visibly broken/missing clip

• Disconnect power (and gas supply if applicable) and allow the appliance to cool before servicing
• Refer to your model's parts diagram for the exact location and orientation
• Use needle-nose pliers for removal/installation; avoid over-bending to maintain clamping force
• Confirm a secure fit and proper clearances before reassembly and testing

This support rod restores stable support and alignment for the designated assembly in your range, helping keep components secure and reducing unwanted movement or sagging over time. What it does:

• Provides rigid support for the attached component or panel
• Replaces a bent, missing, or corroded rod to restore proper fit
• Helps reduce rattling, sagging, or misalignment
• Direct-fit replacement to match the original support geometry

• 1 support rod

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool completely
• Support the related assembly while removing the old rod to prevent dropping
• Transfer any clips or retainers from the original part if present and reinstall in the same orientation
• Secure attachment and clearances before returning the appliance to service

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

Size: 8-18 BA POR 3/4 SN
