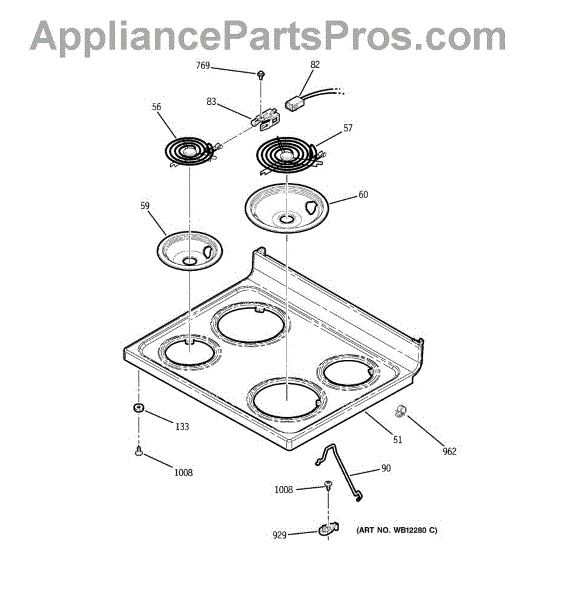

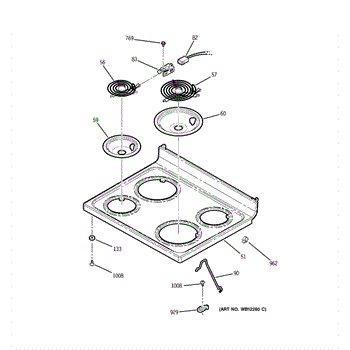

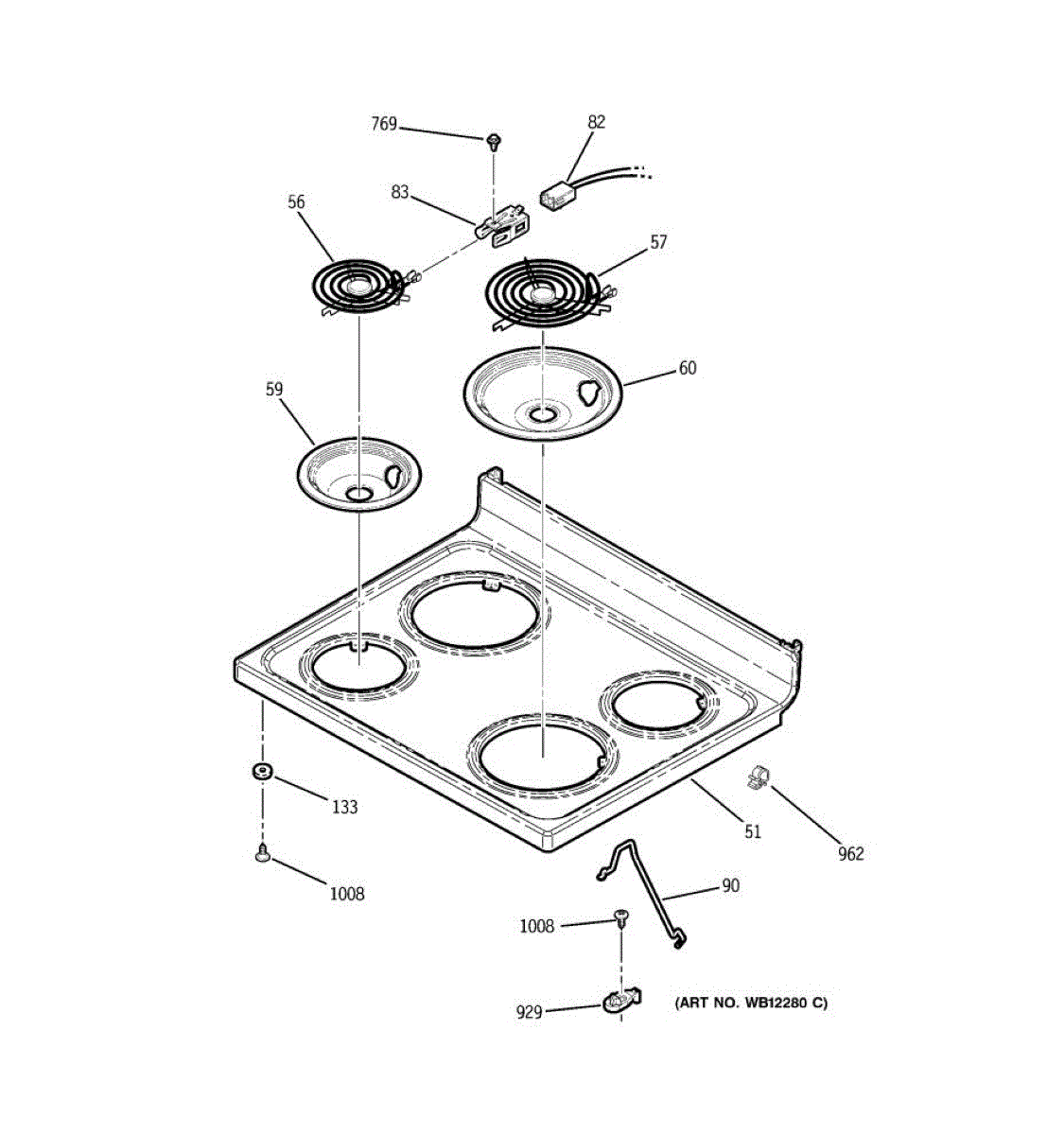

Parts for Ge JBP25DK2WH: 02 - Cooktop Parts

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Large Surface Element is an OEM part for GE ranges and cooktops. This part provides the heat needed for cooking on the range's surface. This large element ensures even heat distribution and consistent cooking temperatures, making it ideal for boiling, frying, and other high-heat cooking methods.

Over time, surface elements can burn out or become less efficient, leading to uneven cooking or failure to heat up at all. This can be due to a variety of reasons, including prolonged use, overheating, or physical damage.

Symptoms of a bad Large Surface Element include:

• The element does not heat up
• It heats unevenly or only partially
• Visible damage to the element, such as blistering or cracks
• The element takes longer than usual to heat up

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This component is positioned beneath the burner element to catch spills and drips that occur during cooking. It helps keep the cooktop clean and maintains efficient heat distribution by reflecting heat back towards the cookware.

You should replace the burner bowl if it becomes stained, rusted, or damaged. Over time, exposure to high heat, food spills, and cleaning chemicals can cause the burner bowl to deteriorate, affecting its appearance and functionality.

Symptoms of a bad burner bowl include:

• Visible stains, rust, or discoloration
• The burner element not fitting securely or wobbling
• Difficulty in cleaning due to stubborn residue or corrosion
• Reduced heat efficiency due to the bowl’s condition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Positioned beneath the burner element, this bowl catches spills and drips that occur during cooking. It helps keep the cooktop clean and ensures efficient heat distribution by reflecting heat back towards the cookware.

Causes of a bad burner bowl can include exposure to high heat, food spills, and cleaning chemicals, which can lead to staining, rusting, or damage over time. A deteriorated burner bowl can affect its appearance and functionality.

Symptoms of a bad burner bowl include:

• Visible stains, rust, or discoloration
• The burner element not fitting securely or wobbling
• Difficulty in cleaning due to stubborn residue or corrosion
• Reduced heat efficiency due to the bowl’s condition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This support rod restores stable support and alignment for the designated assembly in your range, helping keep components secure and reducing unwanted movement or sagging over time. What it does:

• Provides rigid support for the attached component or panel
• Replaces a bent, missing, or corroded rod to restore proper fit
• Helps reduce rattling, sagging, or misalignment
• Direct-fit replacement to match the original support geometry

• 1 support rod

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool completely
• Support the related assembly while removing the old rod to prevent dropping
• Transfer any clips or retainers from the original part if present and reinstall in the same orientation
• Secure attachment and clearances before returning the appliance to service

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This is the door pad. Consider replacing both when replacing trim number WB07T10230

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

Size: 8-18 BA POR 3/4 SN
