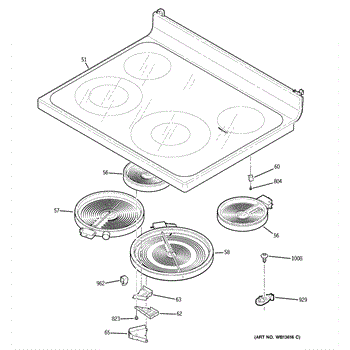

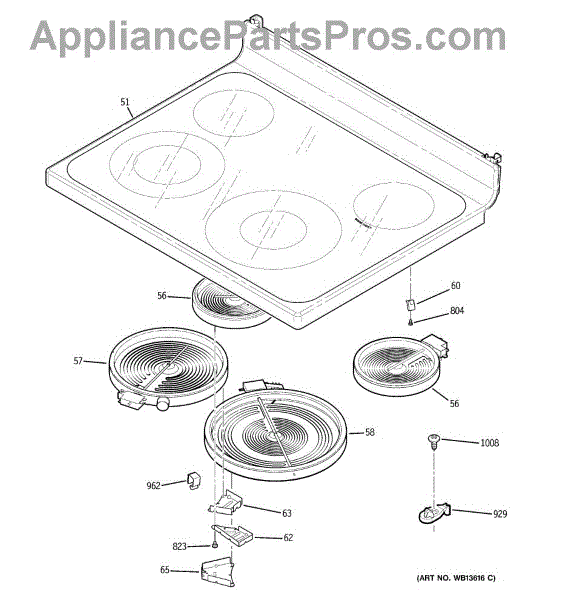

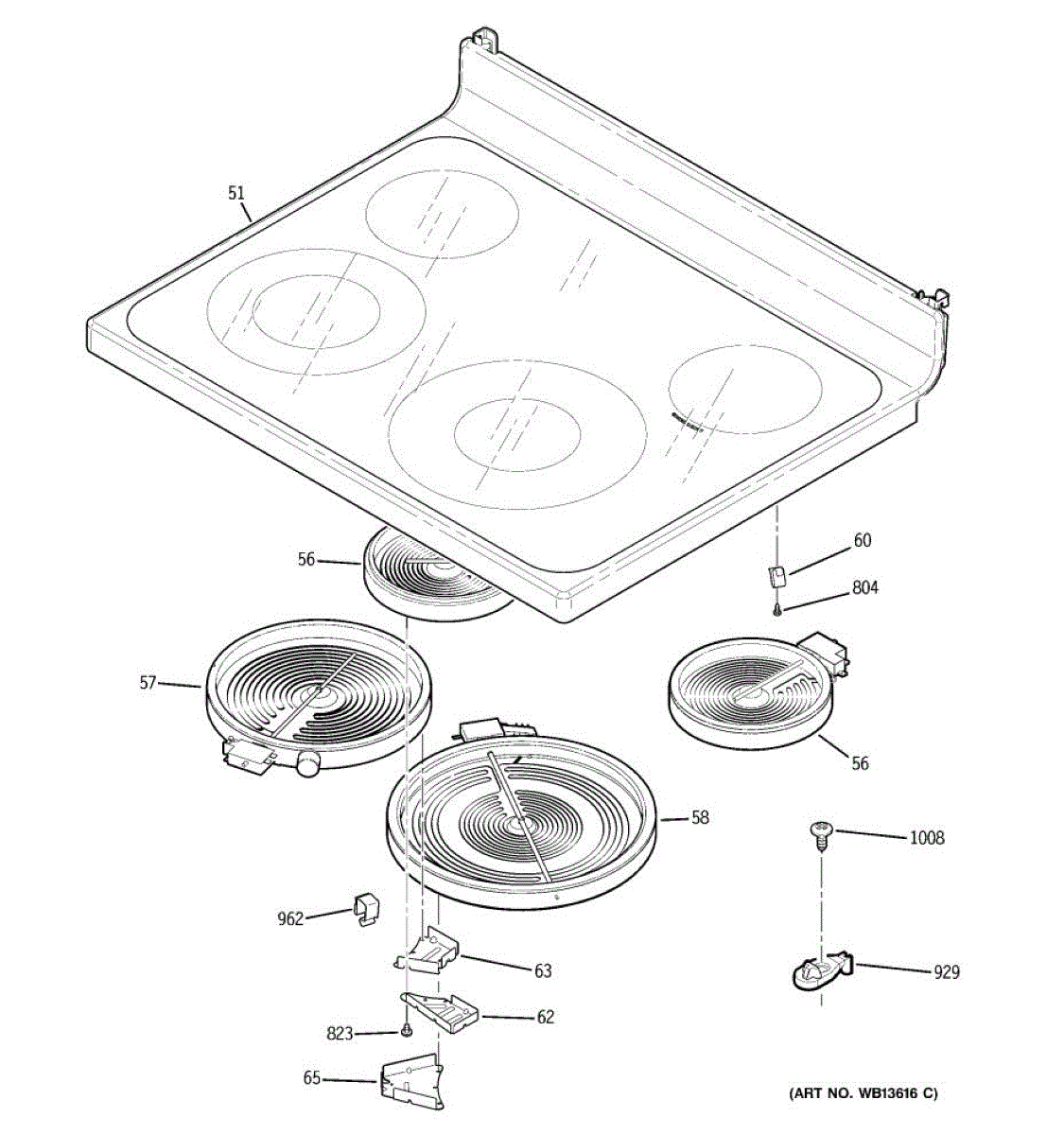

Parts for Ge JBP67CM1BB: 02 - Cooktop Parts

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dual

This radiant element bracket secures the oven's radiant cooktop element, keeping it properly positioned for reliable heat transfer and safe operation. A worn or broken bracket can allow the element to sag or shift, causing noise or uneven heating. What it does:

• Supports and centers the radiant heating element under the cooktop
• Keeps the element stable to prevent movement, rattling, or contact with other components
• Helps maintain consistent heat distribution across the cooking surface
• Reduces risk of abrasive wear to element leads and connection points

• Disconnect power to the appliance before attempting any repair
• Inspect mounting area and hardware; replace any damaged screws or clips
• Ensure bracket seats fully and the element is properly aligned before restoring power

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Size: 8-18 BA POR 3/4 SN
