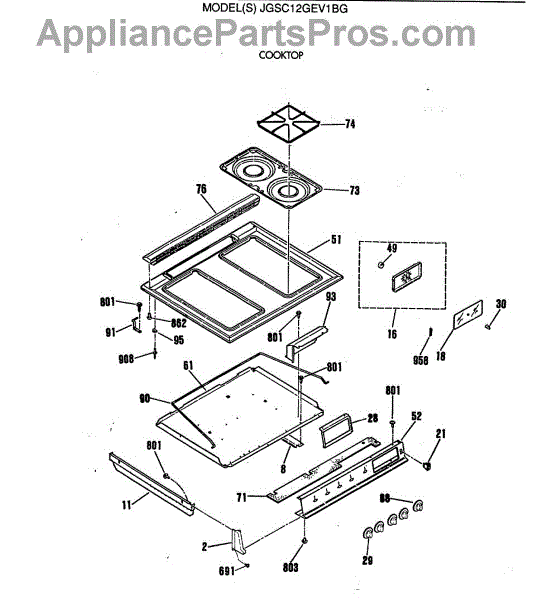

Parts for Ge JGSC12GEV1BG: 02 - Cooktop Parts

Color: Black

This gas valve knob replaces a worn or broken stove/range control knob to restore safe, reliable burner control. It provides a clear grip and index for turning the valve to ignite and adjust the flame. What it does:

• Replaces a damaged, cracked, or missing gas control knob so you can turn burners on, off, and to low/hi settings
• Restores a secure grip and visible position indicator for accurate flame adjustment
• Stops slipping or spinning issues caused by a stripped or worn mounting hub
• Helps eliminate difficulty turning the valve or selecting burner settings

• One gas valve knob

• Turn off the appliance and gas supply and disconnect power before servicing
• Pull old knob straight off the valve stem; press new knob firmly onto the stem until seated
• Confirm knob index aligns with valve markings and operates smoothly without binding

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

This replacement burner box bottom is the lower metal pan that supports and protects the range's burner assembly, helping contain spills and direct heat away from internal components for safer, more reliable operation. What it does:

• Provides a protective base for the burner assembly and internal wiring/components
• Helps channel heat and spills away from sensitive parts to reduce corrosion and damage
• Keeps burners aligned and seated properly for consistent ignition and flame pattern
• Worn, rusted, or warped pans can lead to uneven flames, burner misalignment, or visible damage under the cooktop

• Disconnect the appliance from power and shut off the gas supply before servicing
• Allow the range to cool completely and remove surface components (grates, burners, cooktop) per the owner's manual
• Handle metal edges carefully; rusted parts may have sharp areas
• Follow OEM instructions and torque guidelines when reinstalling; replace any damaged fasteners or gaskets as needed

Color: chrome. Measures about 9 inches wide by 19 inches deep.

A metal stiffening bracket that reinforces the appliance cabinet or panel to restore proper alignment and reduce flex. Fits where a small structural support bracket has worn, bent, or broken, helping panels sit securely. What it does

• Provides structural support to a cabinet, door or control panel area to prevent sagging or movement
• Restores correct alignment when a bent or broken bracket allows gaps or rubbing
• Reduces vibration and rattling caused by loose or weakened support
• Works as the replacement structural bracket that fastens with original hardware

• Disconnect power before beginning any repair; if appliance uses gas, turn off the gas supply first
• Remove exterior panels or trim as needed to access the damaged bracket; keep track of original fasteners
• Use appropriate hand tools; avoid over-tightening screws to prevent panel distortion

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.
