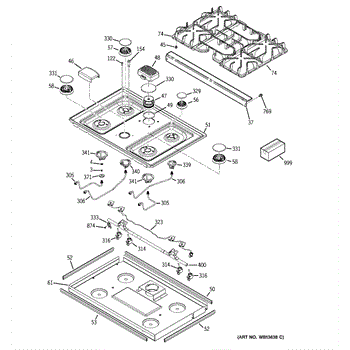

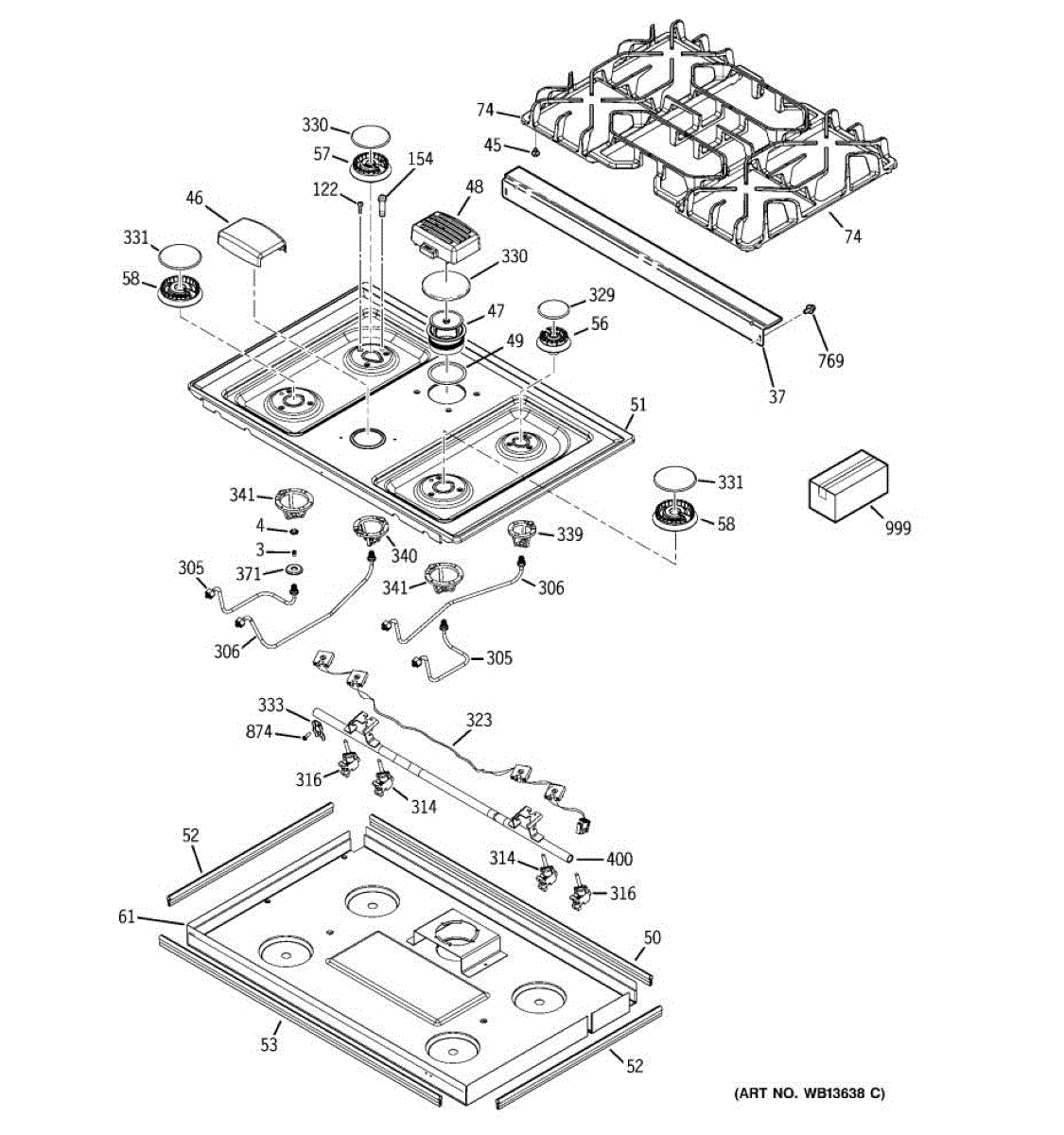

Parts for Ge JGSP28CEK4CC: 02 - Cooktop Parts

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Decorative filler backsplash trim panel for ranges. Installs between cooktop and wall. Replace if cracked, discolored, or missing for a complete look.

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

Vent cap for range ventilation system. Covers and protects the vent opening. Replace if cracked, damaged, or missing to maintain proper airflow.

Replace your range vent gasket to prevent heat loss and maintain proper ventilation. Ensures a tight seal around the vent opening. Verify fit with your model.

Seals the left edge of your range cooktop to the chassis, containing spills and fumes. Replace when worn to restore a clean seal and easier cleanup.

Seals the right edge of your electric range cooktop to prevent spills from entering the chassis. Replace if worn, cracked, or no longer sealing properly.

Replace your range burner box gasket to prevent gas leaks and ensure proper burner operation. Install when you notice gaps or deterioration around the burner box. Verify fit with your model number before ordering.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Rear right tube assembly for gas ranges. Installs behind the cooktop to route gas supply. Replace if cracked, damaged, or leaking to restore safe operation.

Fix a burner that won't light, won't adjust, or has uneven flames with this gas cooktop valve. Controls gas flow to individual burners for safe operation.

Oven won't heat or igniter not glowing? This range igniter assembly ignites the gas burner to heat your oven. DIY repair typically takes 30 minutes.

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Black burner cap kit for gas cooktops. Replaces cracked, worn, or corroded caps. Restores appearance and protects burner assembly. Includes caps only.

Secures gas valve connections on your cooktop. Replace if loose, cracked, or causing gas leaks. Verify fit with your model number before ordering.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Replace your range burner box seal to prevent gas leaks and maintain proper combustion. Essential when worn, cracked, or damaged. Verify fit with your model.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement mounting screw for securing panels, trim, and brackets on ranges. Needed when original screws are missing, stripped, or damaged during repairs.
