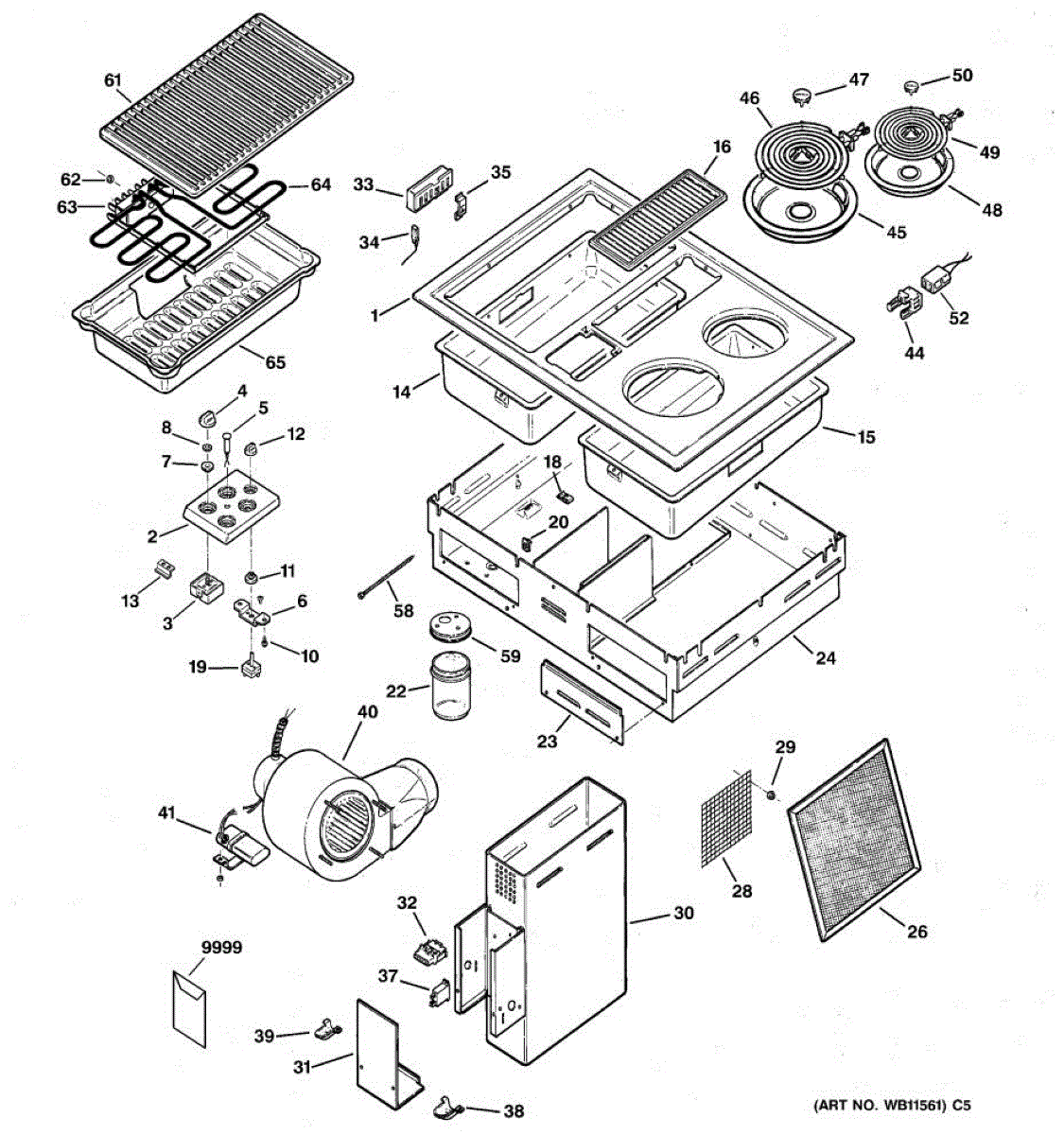

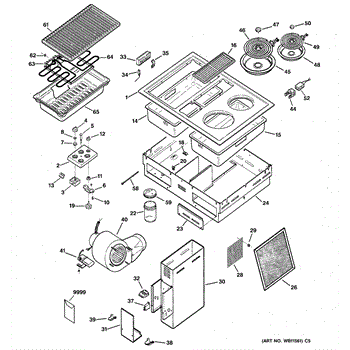

Parts for Ge JP385BD1BB: 01 - Cooktop Parts

Color: glossy black. Measures about 1 inch in diameter, and 1 inch deep.

This selector switch lets you choose the oven's operating mode from the front control knob. Replacing a worn switch restores reliable mode selection so power is routed correctly to the cooking function you select. What it does

• Connects the control knob to the proper circuit to engage the selected oven function
• Restores consistent operation when the oven won't start or won't stay in certain modes
• Addresses issues like only one function working or intermittent mode changes
• Helps when the knob turns but doesn't change functions or the selector shaft feels loose

• 1 selector switch

• Disconnect power at the breaker or fuse panel before servicing; allow the appliance to cool
• Pull off the control knob and remove the control panel/backguard to access the switch
• Move wires to the new switch one at a time, matching positions (take a photo or label leads)
• Secure the switch, reassemble, reinstall the knob, and test each oven function

Typically for 30" models. Color: metallic. Measures about 13 inches high by 11-1/2 inches deep.

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

A replacement thumb screw that secures panels and components without tools for quick hand-tightening. Ideal for small appliance access points where frequent removal or adjustment is needed. What it does:

• Provides a hand-tightened fastening point for removable panels and brackets
• Replaces stripped or lost thumb screws to restore secure, tool-free access
• Helps stop rattling or looseness caused by missing or damaged screws
• Fits 10-24 threaded holes with a 2.0" length for proper engagement

• Hand-tighten; avoid using pliers or power tools to prevent stripping threads
• Confirm thread size and length match your application before installing
• If metal fatigue or thread damage is present, replace mating fastener or insert as needed
• Disconnect power to the appliance when working near electrical components

This OEM replacement part is a grill unit assembly for the cooktops. The grill unit assembly is the coil assembly that heats the stove grill. It provides the heat used to cook on the stovetop grill. Over time, due to excessive wear and tear, the grill unit can become inoperable. If the grill on the stovetop is no longer heating or turning on, it might be time to replace it. Luckily, replacing this part is a fairly simple process.To begin, start by unplugging the stove. After the power has been cut, lift the grill top grates from the stove. Once removed, locate the grill unit and pull it outward to release the attached prongs connected to the stove. After releasing the old unit, align the new grill unit's prongs to the openings on the stove and attach them. Place the grate cover back over the grill unit and restore power to the appliance.This genuine replacement part is sold individually and is compatible with General Electric, Hotpoint, and RCA brand cooktops.
