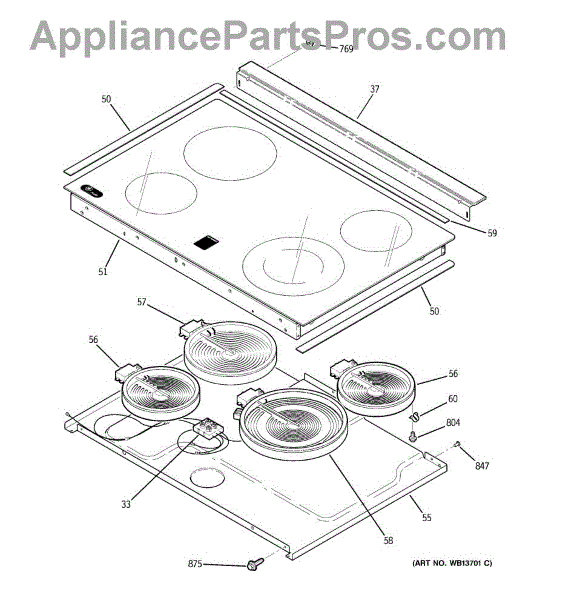

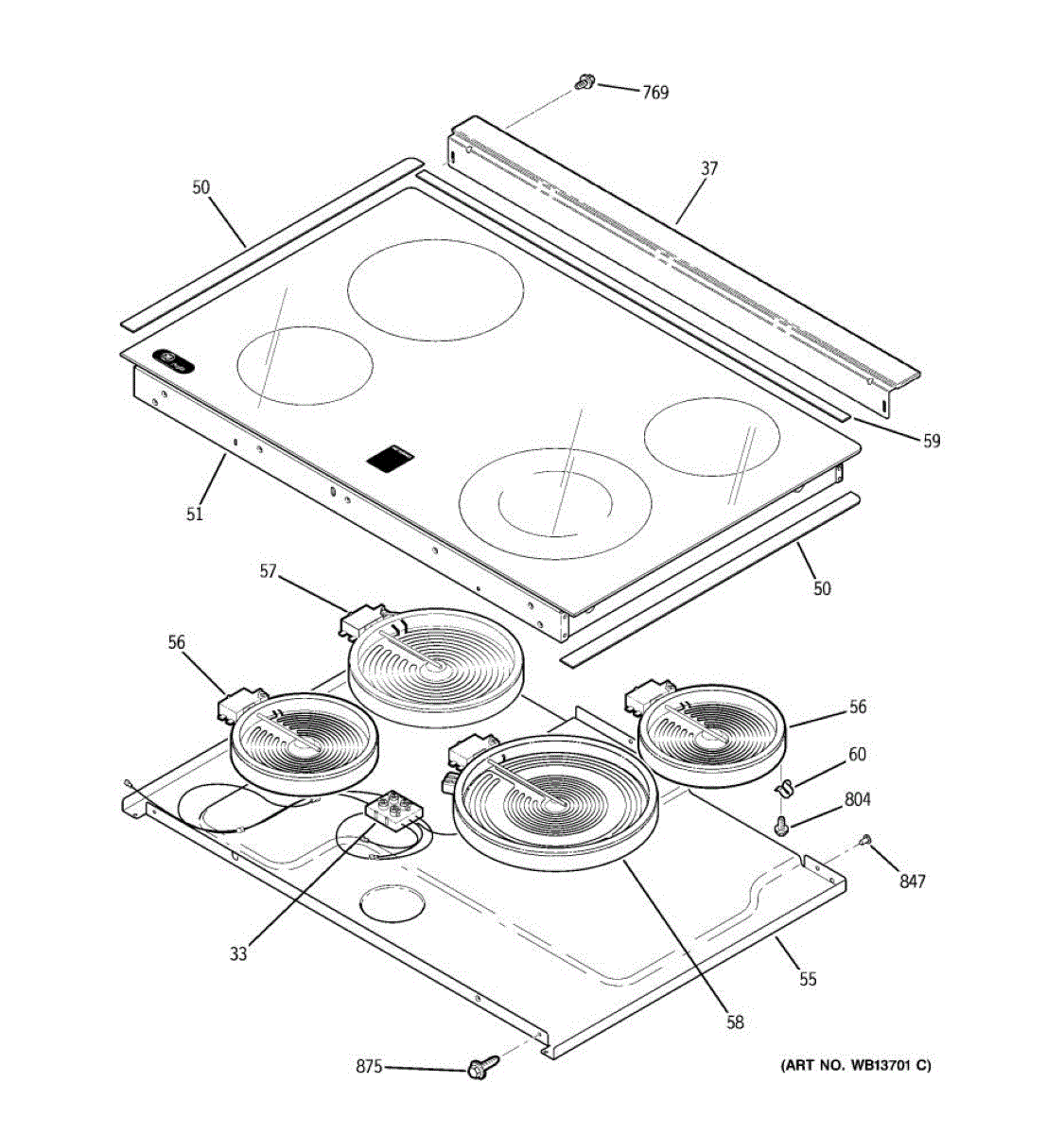

Parts for Ge JS998SK4SS: 02 - Cooktop Parts

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant surface element fits a 9-inch dual burner on glass-ceramic cooktops. It restores proper heating and lets you choose inner or full-ring heat, bringing back fast response and even cooking performance when the original element fails.

• Provides radiant heat to the glass cooktop burner area
• Dual design offers two selectable heating zones using inner and outer coils
• Typical failure symptoms: no heat, heats only on one ring, uneven/slow heating, or won't regulate
• Visible breaks or burned areas on the element coil indicate replacement is needed

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift/remove the glass top to access the element; handle glass carefully
• Note wire positions; transfer any mounting brackets/clips from the old element to the new one
• Avoid flexing the element or touching the heating surface with bare hands; verify diameter and terminal layout match the original before reassembly

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Black. 8-18 AB HXW 3/8
