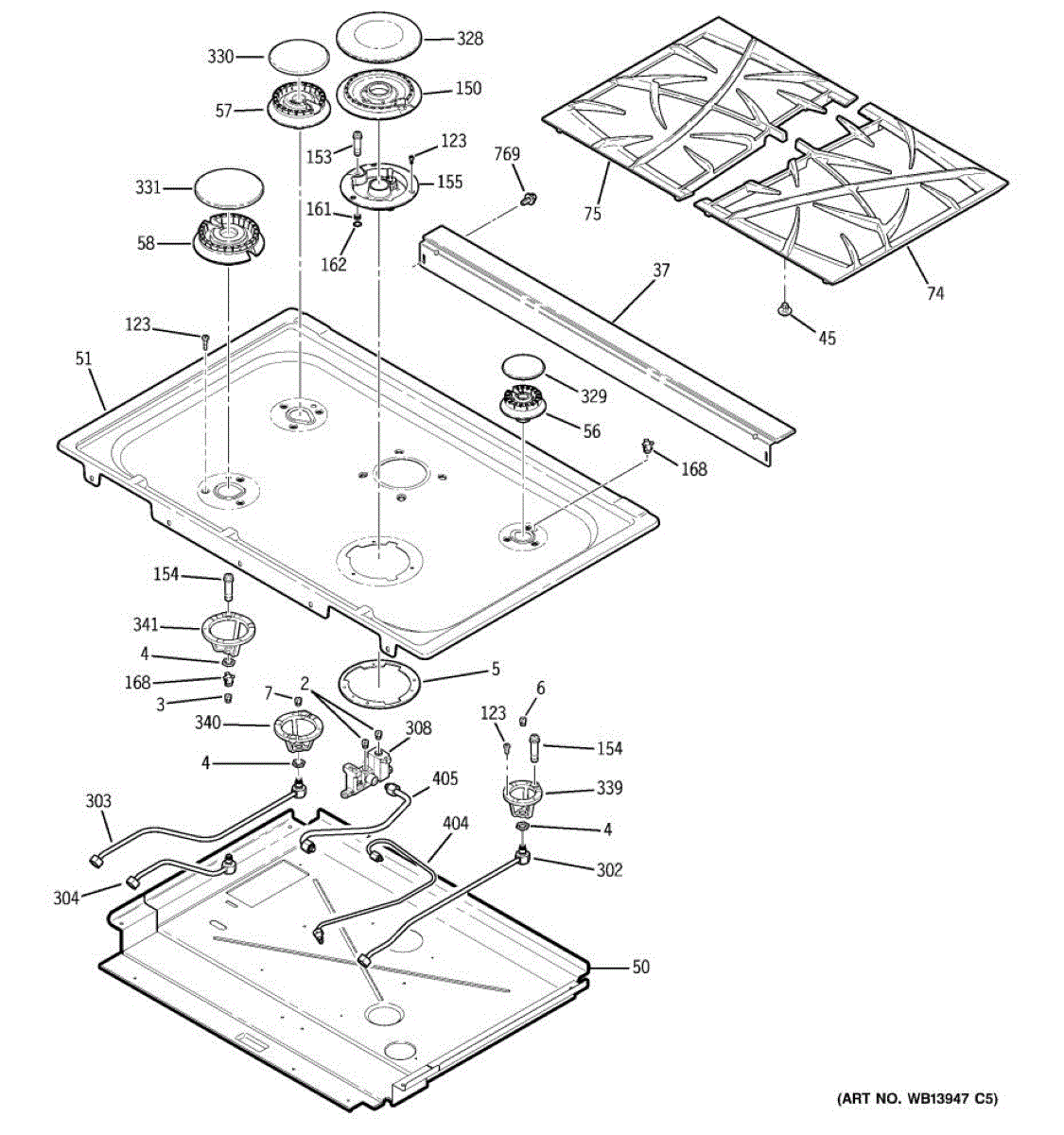

Parts for Ge P2S975BEM4BB: 02 - Cooktop Parts

This orifice spud directs natural gas from the valve to the burner, restoring proper flame shape and more consistent heat on compatible gas ranges and cooktops. Replace when the burner flame is weak or uneven. What it does:

• Channels natural gas into the burner orifice to create a steady, correct flame.
• Replaces a worn, clogged, or damaged spud that can cause low, sputtering, or uneven flames.
• Helps restore reliable ignition and more consistent cooking temperatures.
• Designed specifically for natural gas (NG) systems — do not interchange with LP parts.

• Turn off the appliance power and shut off the gas supply before beginning work.
• After installation, check all connections for leaks and test each burner for proper flame and ignition.

Liquid propane. Main burner.

Liquid propane. High altitude. Main burner

This orifice spud meters gas to a single burner for LP (propane) applications, helping restore proper ignition and stable flame performance when the original spud is blocked, damaged, or the wrong size. What it does:

• Directs and meters LP gas flow to the burner for correct combustion
• Replaces a worn, clogged, or incorrect orifice that can cause weak or uneven flames
• Helps restore consistent ignition and heat output when the burner performs poorly
• Used as part of LP fuel system/orifice configurations on compatible gas ranges

• Turn off the gas supply and disconnect power before servicing appliance
• Only install the correct orifice for your fuel type (LP);
• Use proper tools and avoid overtightening to prevent damage to the spud or burner

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement main top restores the cooktop surface and appearance of your range. A factory-style main top provides a clean, finished look and supports burners and components for safe operation. What it does

• Replaces a cracked, dented, or discolored cooktop surface to restore proper fit and appearance
• Provides a stable mounting surface for burners, burners bowls, and trim pieces
• Helps prevent heat and grease from reaching internal components through damaged areas
• Reduces rattling or misalignment caused by a warped or bent top

• Turn off and disconnect power (and gas if applicable) before starting work
• Remove burner grates, burners, and control panel components as needed to access the top
• Handle carefully to avoid scratching the finished surface; two-person lift recommended for alignment
• Use existing hardware unless new fasteners are explicitly included with your order

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A heavy-duty cast grate assembly that restores a stable cooking surface on gas cooktops. Replaces a cracked, warped or missing grate so pots and pans sit level and heat evenly for safer cooking. What it does:

• Supports cookware over the burner for stable, even heating
• Replaces broken, cracked, warped or sagging grates that cause wobbling
• Helps prevent direct contact between cookware and burner heads
• Restores correct clearance for reliable ignition and flame performance

• Allow cooktop to cool completely before removal or installation
• Replace by lifting out the old grate and setting the new grate into place—no special tools usually required
• Inspect surrounding cooktop surfaces and burner caps for proper fit after installation

The Cooktop Screw is an OEM replacement part for GE cooktops and ranges. This screw secures the cooktop components, ensuring they remain firmly in place during use. Properly installed screws contribute to the safety and stability of the appliance, preventing loose or shifting parts.

Over time, cooktop screws can become loose, corroded, or stripped due to frequent heating and cooling cycles or accidental mishandling. Missing or damaged screws can compromise the cooktop's integrity and safety.

Symptoms of a bad or missing cooktop screw include:

• Loose or wobbly cooktop components
• Rattling noises during operation
• Difficulty aligning or securing parts properly
• Visible rust or wear on the screws

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This head burner main is the primary gas burner head used on compatible gas ranges to direct and distribute the flame for proper cooking. It replaces a damaged or corroded burner head to restore even heating performance. What it does:

• Directs gas to the cooktop for ignition and controlled flame distribution
• Helps maintain even heat across the cooking surface for consistent results
• Can resolve symptoms like uneven flame, visible damage, or poor ignition at the burner
• Works with the burner cap and valve assembly as part of the burner system

• Turn off gas supply and power to the appliance before starting any work
• Remove grates and burner caps to access the burner; follow OEM disassembly guidance
• Replace only with the exact part number to ensure proper fit and function

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Electrode Top is an OEM part for GE gas ranges. It is designed to produce the spark necessary to ignite the gas burner, ensuring the burner lights up quickly and efficiently.

You should replace the electrode top if it becomes worn out, damaged, or fails to produce a spark. Common causes of a bad electrode top include buildup of food debris, exposure to moisture, or physical damage to the electrode or its connections.

Symptoms of a bad Electrode Top include:

• The burner not igniting or taking a long time to ignite
• A weak or absent spark
• Clicking sounds without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

18K Simmer

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

18K

This burner cap covers the gas burner head to protect internal parts and help shape the flame for even heat. It's a simple, low-cost replacement that restores proper burner operation and appearance. What it does:

• Covers and protects the burner head and ports from spills and debris
• Helps direct and stabilize the burner flame for more even heating
• Prevents flame lift or irregular flame patterns caused by damaged/misaligned caps
• Restores correct spacing between flame and cookware for safer cooking

• One replacement burner cap

• Turn off the range and allow all components to cool completely before handling
• Remove old cap, clean the burner head and ports of debris, then set the new cap in place aligned to fit flat
• Check that the cap sits level and does not wobble; misalignment can cause poor ignition or flame issues

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Small. Color: Grey. It measures close to 3 inches in diameter.

Color: Black. Small

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Medium. Color: Grey. It measures about 3 inches in diameter.

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
