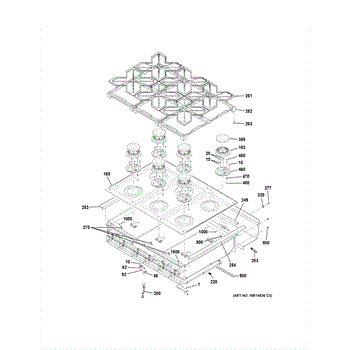

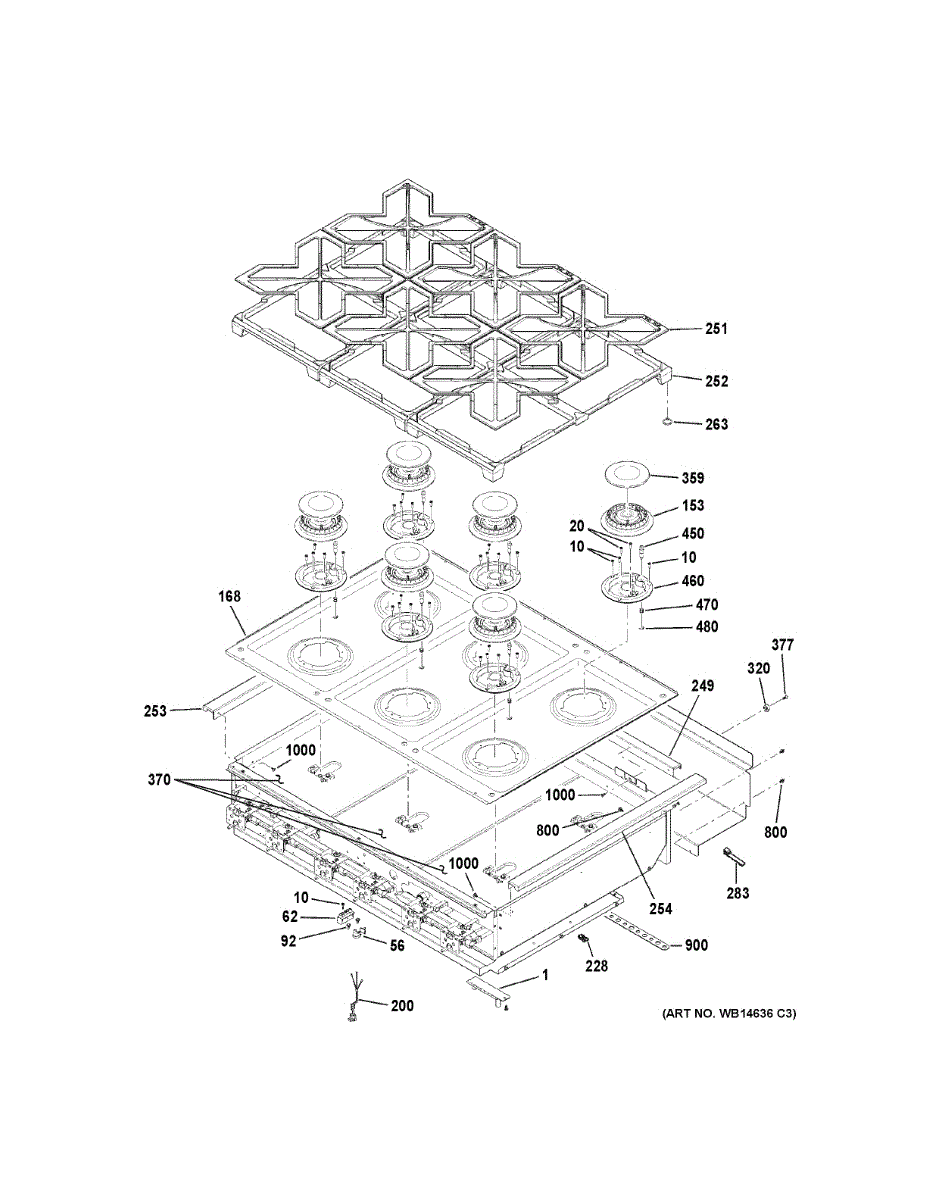

Parts for Ge CGU366SEH2SS: Cooktop Parts

This carrier orifice assembly routes and meters gas to a surface burner so the cooktop lights and maintains a steady flame. It restores proper gas delivery for reliable burner performance and safer operation. What it does:

• Holds the orifice that meters gas flow to the burner for correct flame size and stability
• Ensures consistent ignition and even heating across the burner
• Can address weak, uneven, or inconsistent flames and burners that struggle to light
• Works as the mounting interface between the gas valve/orifice and the burner head

• Shut off gas supply and electrical power before servicing the appliance
• Basic hand tools are typically required; avoid forcing fittings or overtightening

Specs: 8-32 MCH PNT15

The Cooktop Screw is an OEM replacement part for GE cooktops and ranges. This screw secures the cooktop components, ensuring they remain firmly in place during use. Properly installed screws contribute to the safety and stability of the appliance, preventing loose or shifting parts.

Over time, cooktop screws can become loose, corroded, or stripped due to frequent heating and cooling cycles or accidental mishandling. Missing or damaged screws can compromise the cooktop's integrity and safety.

Symptoms of a bad or missing cooktop screw include:

• Loose or wobbly cooktop components
• Rattling noises during operation
• Difficulty aligning or securing parts properly
• Visible rust or wear on the screws

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a burner head, and it is intended for use ranges or stove top ovens. This is a genuine replacement part made by General Electric. Burner heads are used on the top of stoves or ranges to provide heat.A new burner head might be needed if the current one is unable to turn on or off. Another way to determine if a new burner head is needed is if the knobs indicate the burner should be putting off heat but the burner head does not feel hot to the touch. Be sure the current burner head is fully connected before determining whether a new one is needed.This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with ranges or stoves made by General Electric.

This pan unit is the oven's bottom tray that catches drips and shields the oven cavity and lower components from spills and debris. It helps keep the oven interior cleaner and preserves heating elements from direct contact with food residues. What it does:

• Collects spills, crumbs and grease that fall during cooking or baking
• Protects the oven floor, heating elements and internal components from corrosion and damage
• Reduces smoke and burning odors caused by food debris contacting hot surfaces
• Restores proper support and alignment for lower oven racks and components when the original pan is warped or damaged

• One pan unit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove oven racks and any insulation or covers to access the pan; handle sharp edges carefully
• Verify correct orientation and seating so the pan does not interfere with heating elements or door operation
• If the pan was damaged by overheating or corrosion, inspect surrounding parts and replace as needed

This surface burner grate supports cookware over the flame on a gas cooktop or range, providing a stable, level surface for cooking. Replace a cracked or warped grate to restore safe pan support and consistent heating.

• Supports pots and pans at the correct height over the burner
• Provides stable, level placement to promote even heating
• Replaces grates that are cracked, chipped, or warped
• Common signs: wobbling cookware, uneven cooking, or a grate that no longer sits flat

• Turn off all burners and allow the cooktop to cool completely
• Lift off the old grate; clean the area beneath as needed
• Place the new grate, ensuring it seats properly and rests flat on all contact points
• Verify pan stability before lighting a burner

This grate frame is designed for ranges and allows pots and pans to sit over when being used for cooking. The grate frame can become damaged from dropping, striking, or placing improper or heavily weighted cookware on top of it. When the frames crack or break, items can't sit on top of them properly, and this will cause uneven heating. A replacement frame will need to be ordered. Before installing this part, make sure the surface isn't hot and unplug the appliance from its power source. The old grate frame should easily lift up from its position. Discard the old frame and insert the new part.This GE range burner grate frame is a genuine OEM replacement part sourced directly from GE. The grate is available individually. This product is compatible with GE appliances.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

This burner cap fits the 18K high-output burner on your gas cooktop or range. It sits on the burner head to shape the flame and protect it from spills, helping restore an even flame pattern and clean, finished look.

• Sits atop the burner head to distribute the flame evenly across the 18K burner
• Helps maintain stable simmer and full, consistent heat
• Shields the burner head from spills and debris that can affect ignition
• Typical signs it's needed: uneven or yellow flames, delayed ignition, rattling/warped cap, visible chips or cracks

• Turn off gas and power; allow the surface to cool completely
• Lift off the old cap; clean and dry the burner head seating area
• Center the new cap on the burner head; ensure it sits flat and fully seated
• Test ignition and flame; reseat the cap if the flame is uneven

The Electrode Top is an OEM part for GE gas ranges. It is designed to produce the spark necessary to ignite the gas burner, ensuring the burner lights up quickly and efficiently.

You should replace the electrode top if it becomes worn out, damaged, or fails to produce a spark. Common causes of a bad electrode top include buildup of food debris, exposure to moisture, or physical damage to the electrode or its connections.

Symptoms of a bad Electrode Top include:

• The burner not igniting or taking a long time to ignite
• A weak or absent spark
• Clicking sounds without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

18K Simmer

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type
