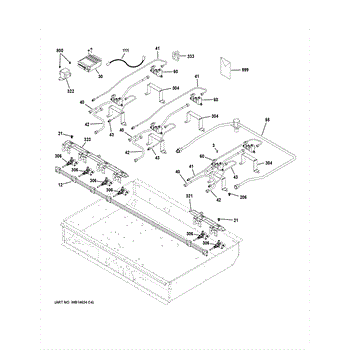

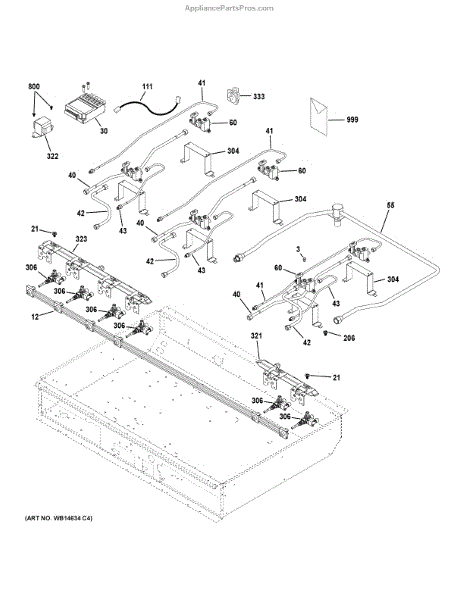

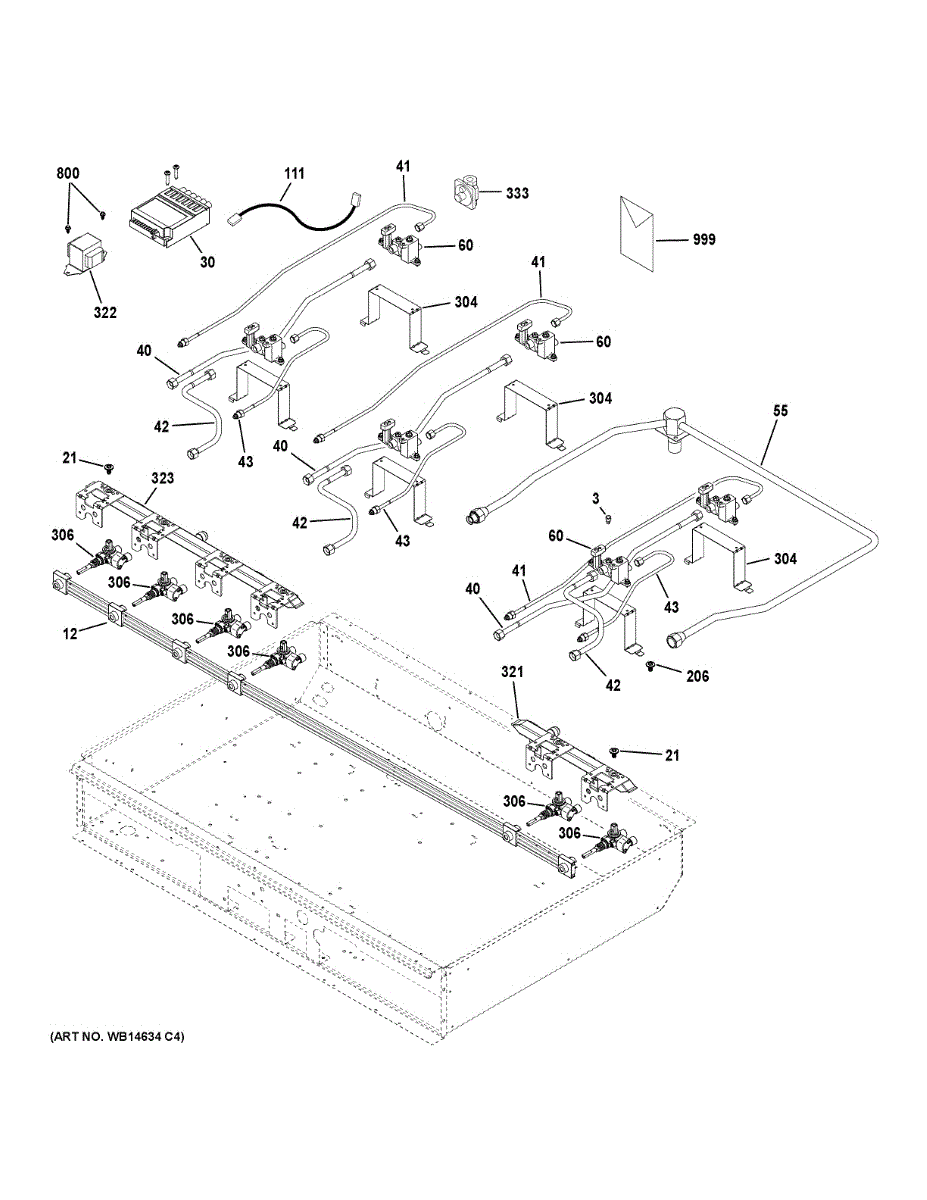

Parts for Ge CGU366SEH2SS: Gas & Burner Parts

This spud orifice is the gas flow jet that meters fuel to a griddle burner, restoring proper flame size and heat for cooking. It's a direct-replacement consumable used in gas griddle assemblies. What it does:

• Precisely meters gas to the griddle burner so the flame burns correctly for even heating
• Helps resolve weak, uneven, or absent griddle flames when the orifice is clogged or damaged
• Reduces improper combustion symptoms such as sputtering or inconsistent heat output
• Works as a replacement component in burner/griddle fuel delivery systems

• One spud orifice for griddle burner

• Turn off the gas supply and power to the appliance before beginning work
• Replace only with the matching orifice for your appliance;
• Use basic hand tools; avoid forcing fittings to prevent damage to the burner or manifold

Natural gas. Main burner.

Natural gas. Simmer burner

Liquid propane. Main burner.

Liquid propane. Simmer burner

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This six-point spark ignition module for gas cooktops/ranges converts line voltage into high-voltage pulses that fire the burner igniters. It restores consistent, reliable lighting across multiple burners when you turn a knob.

• Distributes high-voltage pulses to up to six surface-burner igniters when a burner switch is turned on
• Helps resolve no spark/click on all burners, no spark on some burners, intermittent ignition, or continuous clicking
• Replaces a module that produces weak, erratic, or no spark
• Ignition control only; it does not regulate gas flow or flame size

• Disconnect power and shut off gas before servicing
• Photograph and label all wires; transfer them one at a time to the matching terminals (six HV outputs plus power/ground)
• Mount securely in the original location and keep connections dry; after installation, ensure burner caps are seated and igniters are clean

18K

High-voltage harness routes power between high-voltage components in a microwave oven, restoring safe electrical connections and preventing intermittent operation or arcing when replacing a damaged or burned wiring assembly. What it does:

• Connects the microwave's high-voltage components to maintain proper power flow.
• Failing or damaged harnesses can cause no-heat, intermittent heating, arcing, burning smell, or blown fuses.
• Replaces frayed, melted, or corroded high-voltage wiring that risks shorting or unsafe operation.
• Designed to restore original electrical routing and secure connector fit for reliable operation.

• Disconnect power and unplug the appliance before servicing. Ensure the high-voltage capacitor is properly discharged—do not attempt service without this step.
• Inspect connectors, insulation, and routing; replace damaged clips or retainers and secure wiring away from sharp edges and moving parts.
• Follow the wiring diagram for correct connections.
• Never operate the appliance with covers or safety panels removed.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Valve Dual is an OEM replacement part for GE gas ranges that feature dual fuel capabilities. Located beneath the center burner head, this dual valve simultaneously regulates gas and electric functions for hybrid cooking options.

Symptoms of issues include:

• Inconsistent or unstable electric element heating
• Irregular gas burner ignition and temperature control
• Abnormal sounds originating from the center cooking location

Causes typically involve the degradation of internal thermostatic components from prolonged combined gas/electric use. Physical obstructions blocking valve operation could also impair functionality.

This genuine GE dual valve is compatible with select Hotpoint, RCA and Kenmore ranges as well.

This pipe manifold assembly routes gas from the range's main valve to the individual burners, restoring proper fuel flow for reliable heating. Designed to replace a worn or damaged manifold to help get burners operating correctly. What it does:

• Distributes gas evenly from the main valve to each cooktop burner
• Replaces bent, cracked, or corroded manifold tubing that can block flow
• Addresses symptoms like burners that won't light, weak or uneven flames, or multiple burner failures
• Works with the appliance's existing valves and fittings to restore normal operation

• Turn off gas supply and unplug the appliance before starting work
• Check for leaks with a soap solution or approved leak detector after installation
• Only replace with the exact part number specified for your appliance

This replacement transformer converts household line voltage to the correct level for the appliance's control circuits. It restores stable power to the display and relays so the unit can start and run consistently.

• Converts incoming AC power to the proper voltage for electronic controls and relays
• Failure can leave the display blank and controls unresponsive even though power is supplied
• Intermittent resets or loss of functions can indicate a weakening transformer
• Replace if windings test open/shorted or the part shows overheating damage

• Disconnect power at the breaker before servicing; this part connects to line voltage
• Photograph and label wires; transfer connections one at a time to the new part
• Mount securely and route wiring away from sharp edges and hot components
• Restore power and verify the controls power up normally

This regulator controls gas pressure to the range/oven so burners and the oven heat consistently and safely. Replaces a failed regulator to restore proper flame behavior and reliable cooking performance. What it does:

• Regulates incoming gas pressure to the appliance's burner system
• Helps maintain steady, even flame height for consistent cooking
• Resolves symptoms like weak or uneven flames, burners that won't light, or poor oven heat
• Prevents over-pressurization that can cause unstable burner operation

• One regulator

• Turn off the gas supply and electrical power before beginning work
• Install using proper fittings and thread sealant rated for gas; tighten to OEM torque specs
• After installation, test all gas connections for leaks (do not use an open flame)
