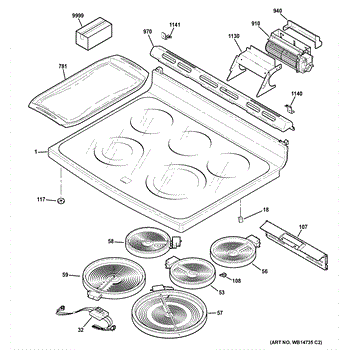

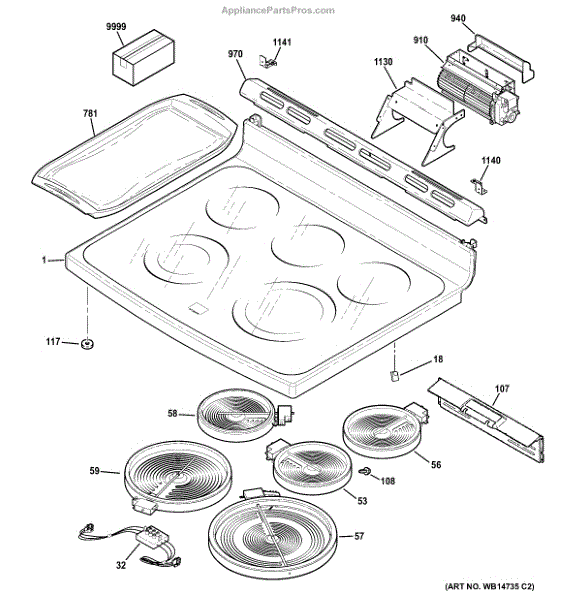

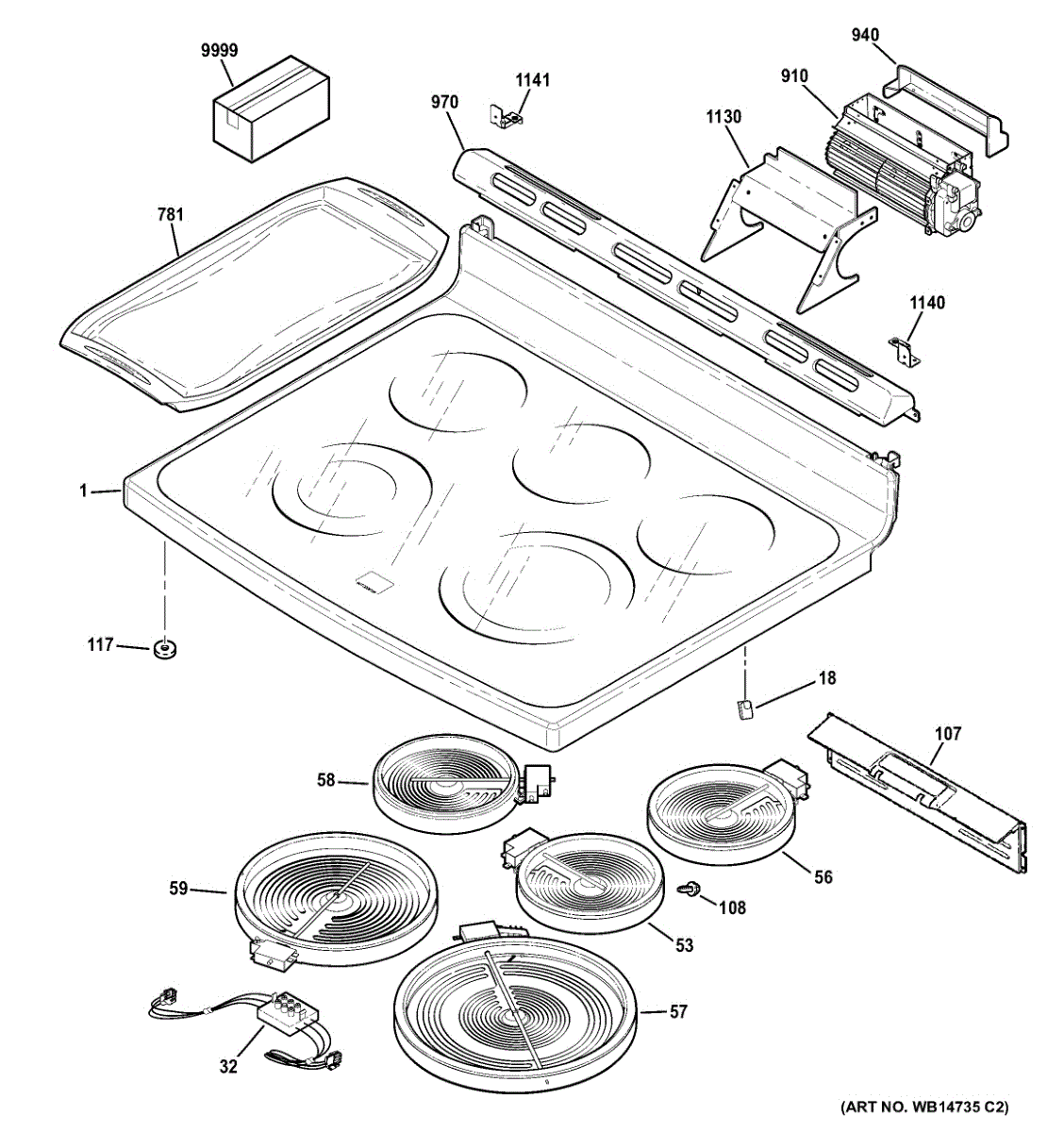

Parts for Ge CS980ST4SS: Cooktop Parts

This is a range top and glass assembly that is used on many ranges and stoves. These parts are found on the top of the stove and heat up to allow users to cook meals. This part is made of strong glass but can be damaged. It may crack, split, or experience other problems that make it unsafe for use. If the range top and glass assembly are damaged, they will need to be replaced.To replace these components, basic tools and work gloves will be needed. Unplug the range from the wall to prevent the appliance from coming on during the replacement process. Open the oven door to access the screws that hold the range top on the stove. Lift up the top away from the range to access burner knobs. Unplug the grounding cable and elements before removing the part. Replace with the new range top and glass assembly. Reinstall the elements and screw in the part before plugging back in the range.The range top and glass assembly are genuine OEM replacement parts that are sourced directly from the manufacturer. It is sold as a single kit. These parts are made to be used with ranges, ovens, and stoves by General Electric and Hotpoint.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 6" surface radiant element replaces a damaged or non-heating cooktop burner so your range heats evenly and cooks reliably. It fits into the cooktop opening and connects to the existing terminal block for standard operation. What it does

• Heats cookware by radiating heat from the glass-ceramic cooktop surface
• Restores a single 6" cooking zone that won't heat, cycles, or shows visible damage
• Works with standard cooktop terminal block connections and mounting clips
• Helps eliminate uneven cooking, no-heat, or intermittent heat symptoms

• One 6" surface radiant element

• Disconnect power at the breaker before servicing to avoid shock
• Remove the glass cooktop and access the element terminals per OEM instructions
• Verify terminal connections and element size/fit before final assembly

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Dual

This griddle radiant assembly is the heating element that warms the built-in griddle surface on select ranges, restoring consistent griddle heat for cooking. Replaces a failed or uneven griddle heating assembly to recover normal griddle operation. What it does:

• Provides direct radiant heat beneath the griddle plate for frying and grilling
• Heats the griddle surface evenly; may fix cold spots or weak griddle heat
• Replaces a burned-out or electrically open griddle element assembly
• Works as the OEM-fit heating component for affected griddle modules

• One griddle radiant assembly (heating element) as shown

• Disconnect power to the appliance before starting any repair
• Remove griddle plate and follow service manual for access to the element assembly
• Handle the griddle plate and element carefully to avoid damage to the surface or terminals
• Verify electrical connections and secure mounting; use proper wire connectors and strain reliefs

This tangential blower is the oven cooling fan assembly that moves air across the cavity and control area to help regulate temperature and prevent overheating. It restores proper airflow for safer, more consistent oven operation. What it does:

• Circulates air across the oven cavity and control electronics to help dissipate heat
• Prevents control board and components from overheating during use
• Reduces hot spots and helps maintain more even cooking temperatures
• Often linked to symptoms like loud or unusual fan noise, the fan not spinning, or oven components running hotter than normal

• One tangential blower assembly

• Disconnect power to the appliance before starting any repair
• Handle carefully; fan blades and sheet-metal openings can be sharp
• Verify fan rotation direction and mounting orientation before final reassembly
