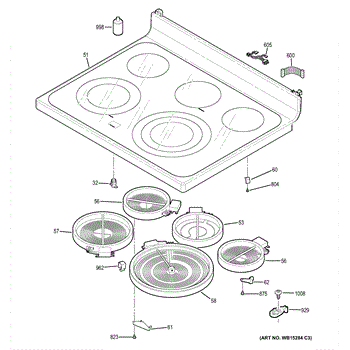

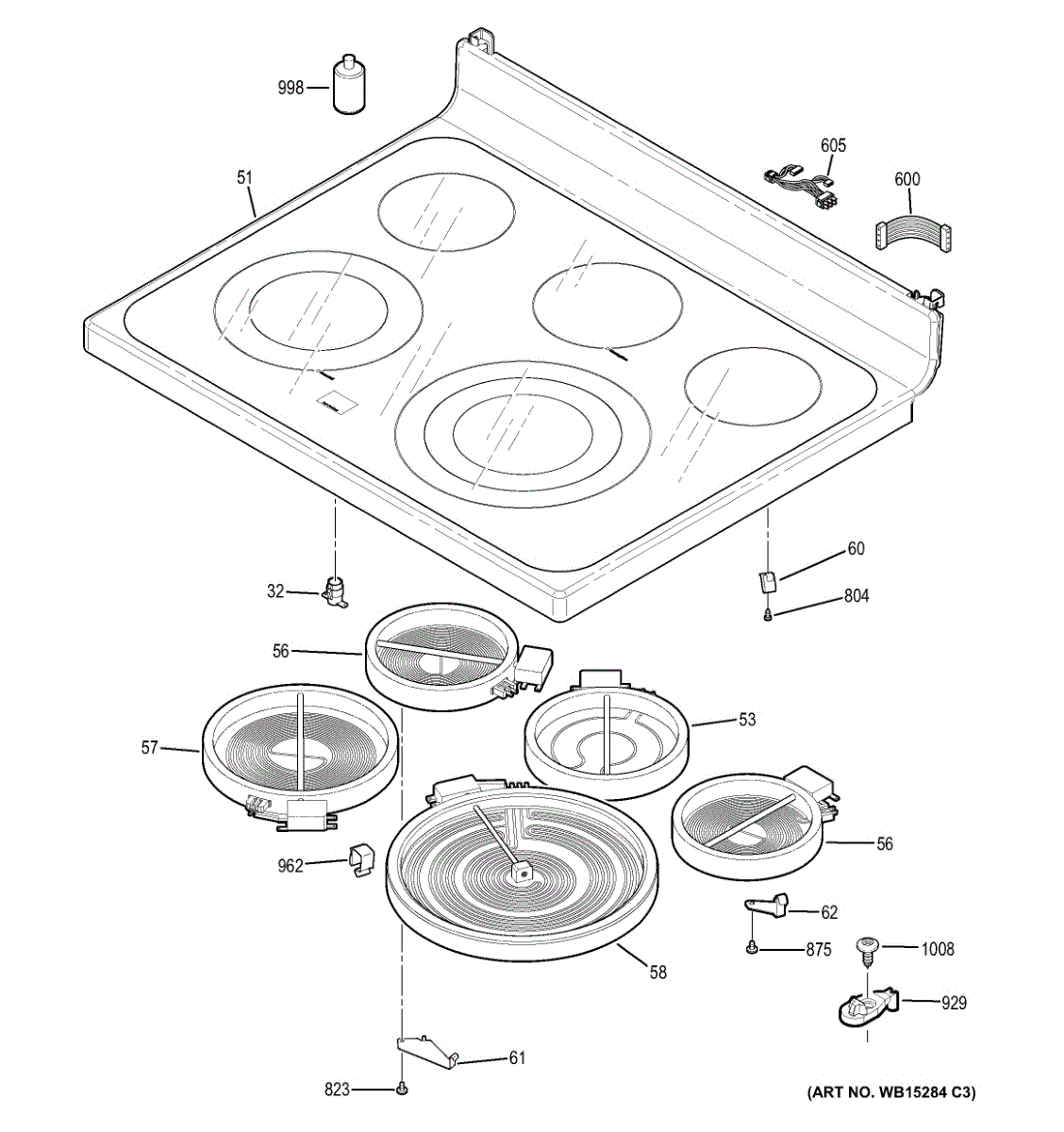

Parts for Ge JB745DF2BB: Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

This is a replacement glass range top manufactured by GE. Glass top stoves offer a smooth surface and are more aesthetically pleasing than old-style raised electric or gas burners. The ceramic/glass blend is also relatively durable, although it can be damaged in a number of ways. Dropping pots/pans on the glass will crack or break it. It can also be scratched by using cast iron pans with rough bottoms. If the glass top is cracked, badly scratched, or broken, it will need to be replaced. Operating the stove with substantial damage can be dangerous. To replace the top, first unplug the stove to avoid any potential accidents. Next, locate the screws that hold the nose to the oven body and remove them. Pull out on the stove top, and then remove the screws that hold the rear in place. This is the stovetop only – it does not include the heating elements.This genuine OEM part is sold individually. It fits GE and KitchenAid ovens.

The Element Radiant 6 Warmer is an OEM component specifically designed for GE electric ranges. This element plays an important role in warming plates and keeping cooked foods hot until serving.

Symptoms of a bad radiant warmer element include:

• Inability to maintain an elevated temperature on the warmer oven surface
• Fluctuating or uncontrolled warming temperatures
• Burning or scorching of foods left on the warmer for extended periods

Causes of failure can be cracking or breakage of the heating coils over time, insulation damage allowing shorts or arcing, or issues with the electronic temperature controls.

This OEM GE replacement element is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9 Dual is an OEM part for GE cooktops and ranges. It provides the heating surface for cooking and is designed to offer two different heating zones, allowing for versatile temperature control depending on the size of the cookware.

Causes of a bad element radiant can include burnouts from excessive use, damage due to spills or impacts, and electrical issues. A faulty heating element can result in uneven cooking or the element failing to heat up at all.

Symptoms of a bad Element Radiant 9 Dual include:

• The element not heating or only partially heating
• Uneven heating across the surface
• Visible damage or discoloration on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a stove's radiant heating element to the cooktop so the element stays aligned and stable during use. It helps maintain safe, consistent contact between the element and the cooktop assembly. What it does:

• Holds the radiant heating element in the correct position to prevent movement or sagging
• Keeps the element aligned to ensure even heating and reduce stress on terminals
• Helps stop the burner from wobbling or shifting when cookware is placed on it
• Can be used when a loose or misaligned element causes noise or improper seating

• Disconnect power to the appliance before inspecting or replacing the bracket
• Handle the heating element and terminals carefully to avoid damage or injury
• Basic hand tools are usually required; verify fit before final reassembly

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

Black. 8-18 AB HXW 3/8

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Size: 8-18 BA POR 3/4 SN
