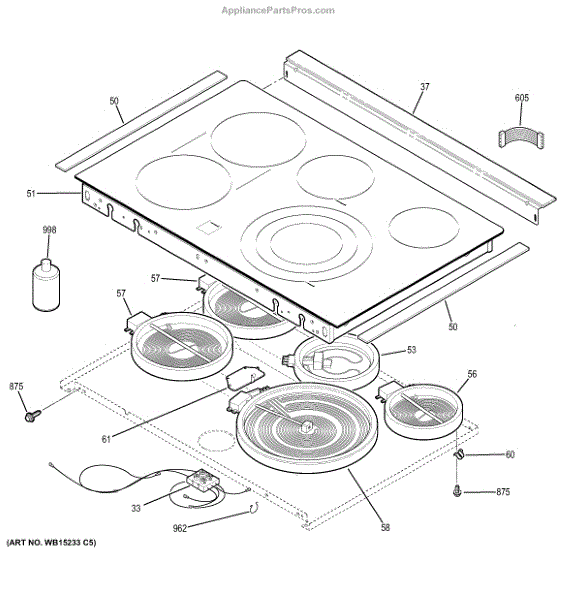

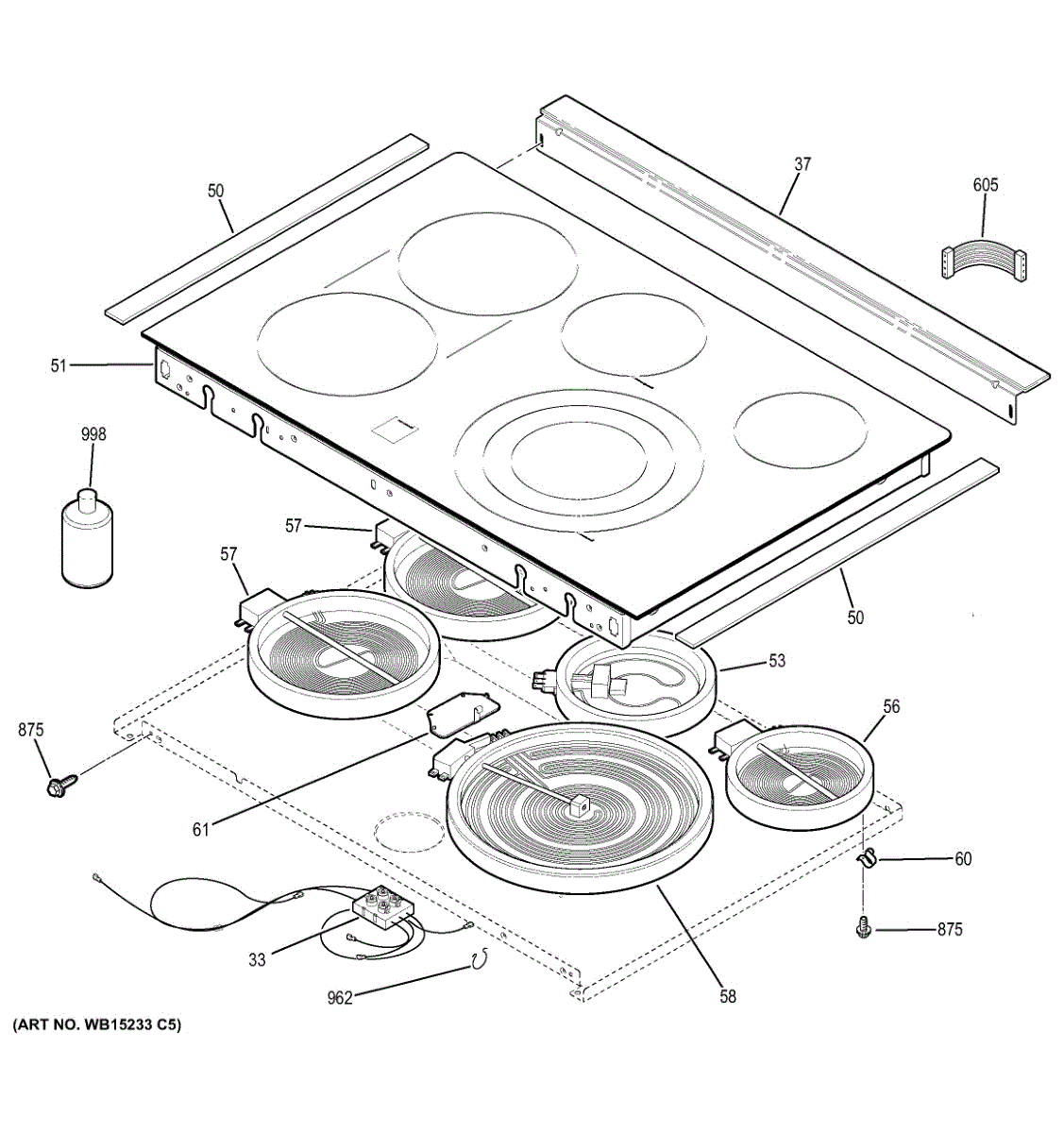

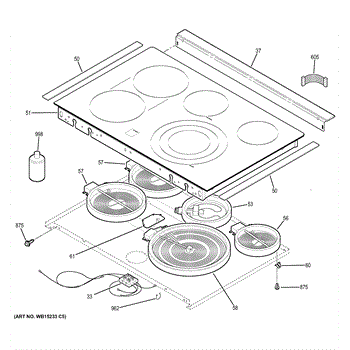

Parts for Ge JS750DF3BB: Cooktop Parts

This indicator light module controls the status lights on your range or cooktop, providing clear visual alerts during operation. Replace it to restore reliable, easy-to-see indicators for key functions. What it does:

• Illuminates key status indicators on the appliance's control area
• Helps when functions are active and when conditions require attention
• Common symptoms: lights do not illuminate, stay on continuously, flicker intermittently, or show heat-related damage
• Direct replacement restores normal indicator operation

• Includes: 1 indicator light module

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the module from the control area per your model's service information; note screw and wire locations
• Transfer connectors one at a time to the new module, secure it, reassemble, and test

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

Warming Element

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Haliant Element is an OEM part for GE cooktops and ranges, designed to provide versatile and powerful heating options. This element features a triple-ring design that allows for three different sizes of cookware to be heated efficiently on the same burner. It's ideal for situations requiring precise temperature control and flexibility, such as when cooking with large pots or pans that need even heat distribution.

Causes for a Triple Haliant Element to fail can include prolonged use leading to wear and tear, overheating that damages the internal components, or electrical issues such as short circuits.

Symptoms of a bad Triple Haliant Element include:

• The element does not heat up
• Only parts of the element heat up
• Unusual fluctuations in heat levels

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting bracket secures a radiant cooktop element to the glass/ceramic surface so the heater stays properly positioned for safe, even cooking. It replaces worn or broken support hardware to restore stable element mounting. What it does

• Holds the radiant heating element in place under the cooktop surface
• Prevents the element from shifting, sagging, or making poor contact
• Helps stop movement-related arcing or uneven heating symptoms
• Restores correct alignment after bracket damage or corrosion

• One radiant element mounting bracket

• Disconnect power to the appliance before starting any work
• Handle the glass/ceramic cooktop carefully to avoid cracks or chips
• Remove the cooktop or element assembly per service instructions to access the bracket
• Inspect fasteners and related hardware; replace any damaged screws or clips and test element function after reassembly

This is the main top wire harness that routes electrical connections to the cooktop components, restoring power and signal paths so burners, switches, and igniters function correctly. Replaces a worn or damaged harness to regain reliable operation. What it does:

• Carries power and control signals between the console, switches, and cooktop elements
• Enables burner control, ignition, and indicator functions when intact
• Commonly replaced when wires are burnt, frayed, melted, or connectors are damaged
• Helps resolve intermittent or complete loss of cooktop power and unresponsive controls

• One main top wire harness as shown

• Disconnect power at the breaker or unplug the appliance before starting any work
• Inspect connector pins and routing; secure harness away from hot surfaces and moving parts
• Use proper wire clips and fasteners; replace any damaged terminal connectors

Black. 8-18 AB HXW 3/8
