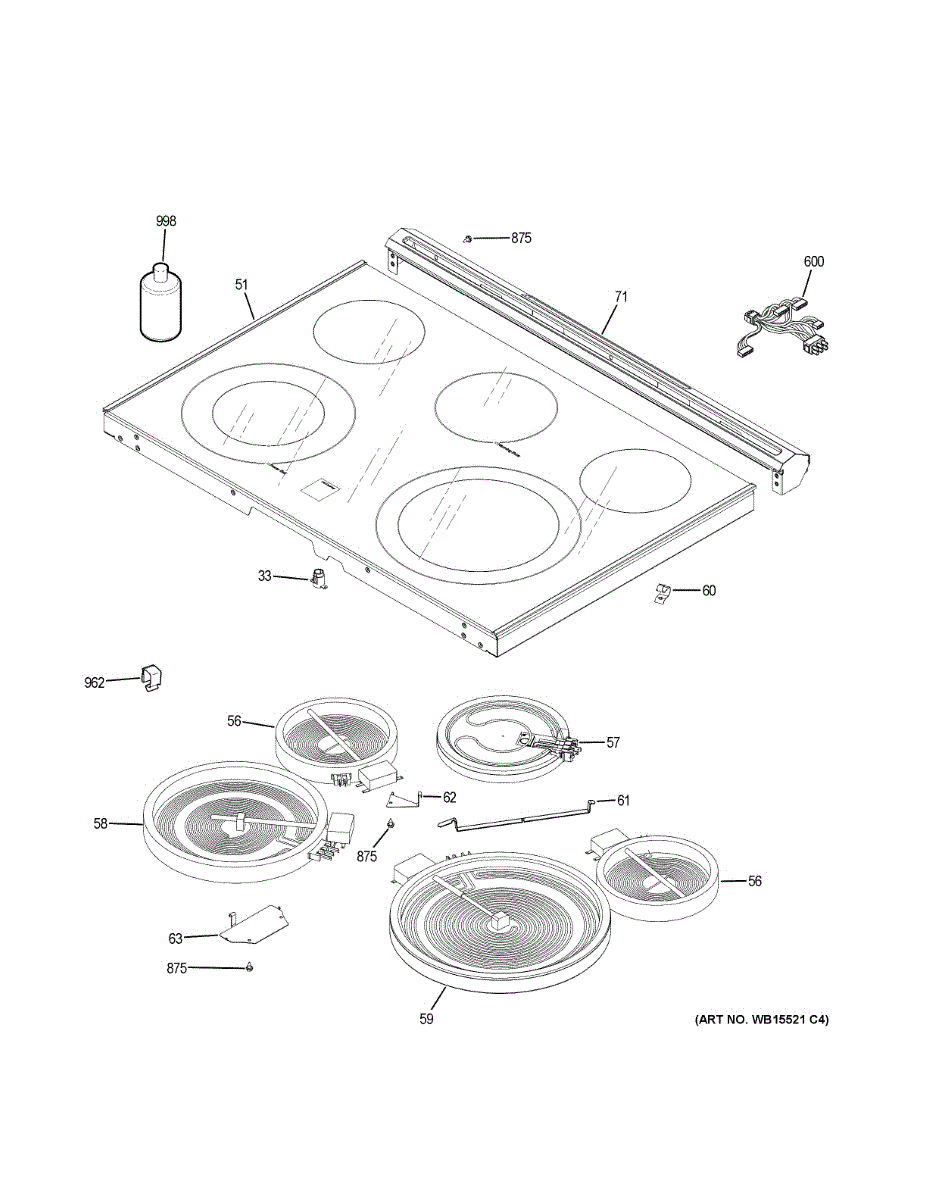

Parts for Ge JS760FP2DS: Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

This maintop glass assembly replaces the main glass cooktop panel to restore a smooth, stable surface and protect underlying components. It refreshes appearance and supports burners and cookware for safe, even operation. What it does:

• Replaces cracked, chipped, or shattered maintop glass to eliminate sharp edges and restore a flat cooking surface.
• Protects internal components and wiring from spills, heat, and debris.
• Provides stable support for burner components and cookware.
• Restores proper openings and alignment around burners for safer operation.

• Disconnect power (and gas, if applicable) before attempting replacement to avoid electrical shock or gas hazards.
• Wear cut-resistant gloves and eye protection when handling glass; lift carefully to avoid breakage.
• Remove knobs, grates, and burner components per service instructions; align mounting tabs and secure hardware when installing.
• Verify the appliance model and part number before ordering; larger glass assemblies may require two people to install safely.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This metal mounting bracket secures a radiant heating element to the cooktop so the element stays aligned and stable during use. It restores proper fit and reduces movement that can cause intermittent contact or uneven heating. What it does:

• Holds the radiant heating element in place to prevent movement or sagging
• Keeps electrical contacts aligned to reduce arcing, flicker, or intermittent heating
• Helps maintain even heat distribution by stabilizing element position
• Replaces a bent, broken, or missing bracket that allows the element to shift

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle the glass cooktop and element carefully to avoid cracking or injury
• Verify correct bracket orientation and mounting location before tightening hardware
• Use basic hand tools; if the element or wiring is damaged, replace those parts.

The Rear Vent Trim and Gasket Assembly is an OEM part for GE ranges. It seals the rear vent opening of the range, directing hot air and potential gas fumes outside through the exhaust vent during oven use. Without an intact seal provided by the gasket and vent trim, combustion byproducts can enter the kitchen presenting safety and performance issues.

Causes of a bad range rear vent assembly include wear over years of use with high heat cycles, cracking or degradation of sealing materials, or damage from cleaning or impacts around the vent area.

Symptoms of an issue include:

• Foul odors detected in the kitchen during use of the oven
• Inefficient or uneven baking and broiling
• Visible openings or gaps seen around the rear vent perimeter
• Detached, cracked, or missing components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
