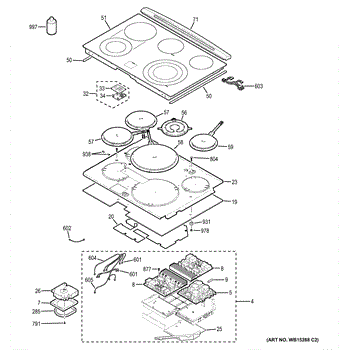

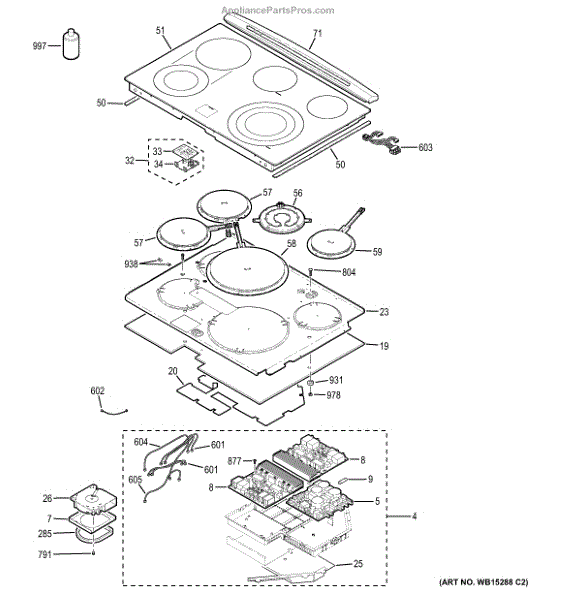

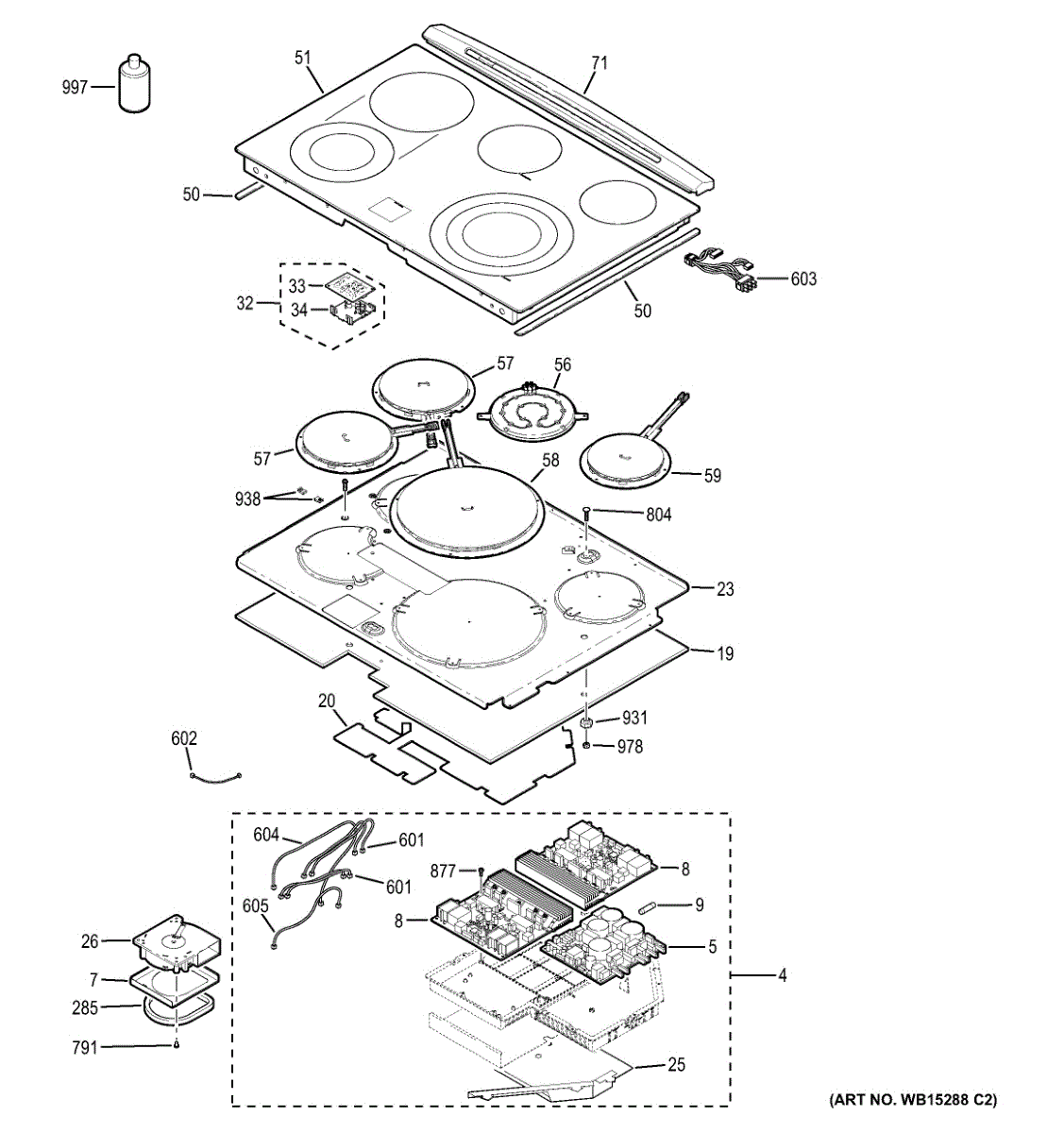

Parts for Ge PHS920SF2SS: Cooktop Parts

This generator board assembly is the electronic module that controls ignition and spark-related functions, helping restore reliable ignition and electrical signaling on compatible gas appliances. What it does:

• Controls ignition/spark generation so burners or oven igniters light properly
• Re-establishes electrical signaling between appliance controls and ignition system
• Works as a direct replacement for the failed ignition/control module on supported models

• Disconnect power and gas supply before starting any work; follow all appliance safety procedures.
• Handle the board carefully to avoid ESD damage; avoid touching circuit traces and components.
• Inspect related wiring, connectors, and igniters for damage or corrosion before reinstalling.

This 250V, 20A line fuse safeguards the appliance's power circuit by interrupting current during an overload or short. Replacing a blown fuse can restore power once the root cause is corrected.

• Opens the circuit if current exceeds 20 amps or a short occurs
• Helps protect internal wiring and control components from damage
• Typical blown-fuse symptoms: no power, dead display, won't start
• Restores line continuity after the underlying issue is resolved

• Disconnect power at the breaker/unplug before servicing
• Replace only with the same rating (250V, 20A); never bypass or upsize the fuse
• If a new fuse blows again, stop and diagnose the underlying fault before further replacement

This maintop gasket seals the cooktop/maintop area to keep liquids, crumbs and debris from entering the range's internal components. It helps reduce odors and prevents buildup under the maintop for cleaner operation. What it does:

• Forms a protective seal between the cooktop and maintop to limit spills and debris intrusion
• Helps reduce the chance of odors or smoke from food/residue entering the control/inner cabinet
• Restores a flush fit of the maintop to improve appearance and prevent gaps
• Useful when an old or damaged gasket is torn, compressed, or missing

• One maintop gasket

• Disconnect power to the appliance before any service; ensure surface is cool
• Lift or remove the maintop per manufacturer instructions to access gasket area
• Clean mating surfaces of residue before installing the new gasket for a proper seal
• If adhesive or clips are present, retain or replace them as required; handle glass or enamel tops carefully

This maintop glass assembly replaces cracked or damaged cooktop glass on compatible electric ranges, restoring a smooth, even cooking surface and improving appearance. Ideal when chips, cracks or shattered glass affect use or safety. What it does:

• Replaces the range's upper glass maintop to restore a flat, stable cooking surface and clean visual appearance.
• Protects internal components under the cooktop from spills and debris by restoring the glass barrier.
• Addresses common symptoms like visible cracks, chips, shattered glass, or an uneven/unstable burner area.
• Fits as a direct maintop replacement when the original glass is broken or cosmetically damaged.

• Disconnect power to the range before starting and ensure the glass is cool to the touch.
• Handle the glass with gloves and lay it on a padded surface to avoid damage during installation.
• Remove grates, burner caps and any retainers per your model's service diagram before swapping the glass.

This lower oven warming element heats the oven's warming/holding compartment so food stays warm until serving. Replaces a damaged or non-heating lower element to restore consistent low-temperature operation. What it does:

• Heats the oven's warming/lower compartment for holding cooked food
• Replaces elements that show visible damage, burn-through, or no heat output
• Helps restore even low-temperature performance when the warmer function fails
• Works with the oven's temperature control and safety circuits to provide steady heat

• One lower oven warming element

• Disconnect power at the breaker before beginning any repair
• Wear gloves; element edges and terminals may be sharp
• Verify proper wiring and secure terminal connections during installation

This wiring harness routes power and signals between components to restore proper electrical connections in the appliance. It replaces a damaged or worn harness to help resume reliable operation and safe power delivery. What it does

• Connects power and control circuits between the control board and components to enable normal function
• Replaces frayed, burnt, or broken wires that can cause intermittent power loss or component failures
• Helps stop symptoms like no power to affected components, intermittent operation, or visible wiring damage
• Maintains correct routing and connector fit to prevent mis-wiring when installed as directed

• One factory-style wiring harness as shown

• Disconnect power at the breaker or unplug the appliance before starting any work
• Match connector shapes and wire colors to the originals; do not modify wires or connectors
• Inspect nearby clips and grommets and replace any that are cracked or missing to prevent chafing

This wiring harness routes power and signals between the appliance control and components so circuits operate reliably. Replace a damaged harness to restore electrical connections and reduce intermittent faults or non-functioning controls. What it does:

• Transfers power and control signals between the control board and components.
• Restores complete electrical pathways when wires are frayed, burned, or broken.
• Helps eliminate intermittent operation, no-start conditions, or component failures caused by open or shorted wiring.
• Matches OEM connector layouts and wire routing to maintain factory performance.

• One wiring harness assembly.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Handle connectors by the housings — do not pull on wires — and secure pin engagement.
• Route harness along original clips and channels; avoid sharp edges or hot surfaces.

This wire harness connects appliance control circuits using a BB-style connector to restore reliable electrical connections. It replaces a damaged or worn multi-conductor lead that can cause intermittent or no power to circuits. What it does:

• Carries signals and power between control components and accessory modules using a BB-style connector
• Replaces frayed, burned, or broken wiring that can cause intermittent operation or failure to start
• Helps restore reliable connections when terminals are corroded or loose
• Prevents arcing or shorting from exposed conductors when installed correctly

• One wire harness with BB-style connector

• Always disconnect power at the breaker or unplug the appliance before starting work
• Match connector orientation and wire routing to the original harness; secure with existing clips or ties
• Inspect mating terminals and wiring for heat or corrosion; replace damaged terminals before connecting

This wire harness provides the factory-style electrical connections between appliance components to restore reliable signal and power routing. It replaces a damaged or worn harness to help resolve intermittent or failed component operation. What it does:

• Routes electrical signals and power between control components and sensors
• Restores lost or unreliable connections that can cause intermittent operation or failure to respond
• Uses matching molded connectors for a direct fit with original terminals
• Maintains proper wire routing to prevent chafing or heat damage when installed correctly

• Always disconnect power (unplug or shut off the breaker) before servicing electrical components
• Compare the new harness to the original to confirm connector types and lengths before installation
• Route the harness away from sharp edges and heat sources; secure with original clips or fasteners

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style
