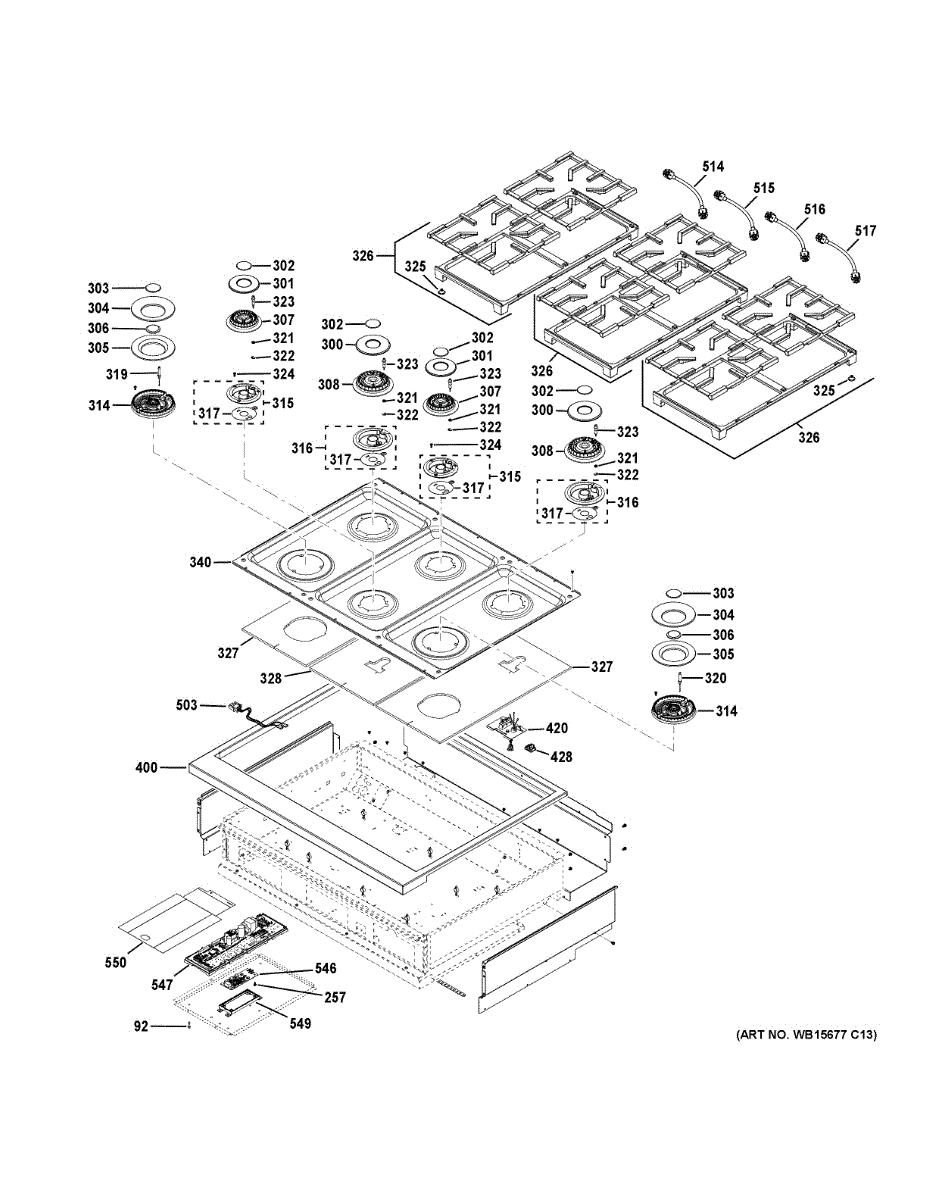

Parts for Ge ZGU366NT2SS: Cooktop Parts

This burner cap fits the 18K high-output burner on your gas cooktop or range. It sits on the burner head to shape the flame and protect it from spills, helping restore an even flame pattern and clean, finished look.

• Sits atop the burner head to distribute the flame evenly across the 18K burner
• Helps maintain stable simmer and full, consistent heat
• Shields the burner head from spills and debris that can affect ignition
• Typical signs it's needed: uneven or yellow flames, delayed ignition, rattling/warped cap, visible chips or cracks

• Turn off gas and power; allow the surface to cool completely
• Lift off the old cap; clean and dry the burner head seating area
• Center the new cap on the burner head; ensure it sits flat and fully seated
• Test ignition and flame; reseat the cap if the flame is uneven

This burner cap sits on the gas burner head to shape the flame and shield the burner from spills. Replacing a worn or missing cap restores reliable ignition and even heat for consistent cooking results.

• Distributes the burner flame evenly for proper heating
• Protects the burner head from spills and debris
• Helps ensure quick, reliable ignition when properly seated
• Replace if chipped, warped, rusted, or missing; symptoms can include hard-to-light burners or yellow/uneven flames

• Turn off gas and power; allow the cooktop to cool completely
• Lift off the old cap and clean the burner head surface
• Align and seat the new cap flush and level; test burner ignition and flame pattern

The Inner Cap Brass Cooktop is an OEM part for GE-sealed gas burners. Located under each burner head, it serves as the decorative protective barrier between the flame source and cooktop surface.

Symptoms of a bad inner cap brass include:

• Warped or misshapen shape from high heat exposure over time
• Heat discoloration detracting from aesthetic
• Scratches, pitting, or burns on visible surfaces
• Failure to properly seat and seal under the burner head

Prolonged fiery combustion naturally causes metal fatigue and changes in material properties. This genuine GE replacement restores optimal heat deflection and a consistent surface level for safe and easy cleaning. Compatible GE and Monogram gas cooktop models maintain authentic factory finishes and performance.


This burner cap sits atop the gas burner head to shape and shield the flame. Replacing a chipped, warped, or missing cap restores reliable ignition and an even, stable flame for consistent cooktop performance.

• Covers the burner head to properly shape and spread the flame for even heating
• Protects the burner head from spills, debris, and drafts
• Correct seating helps ensure quick, reliable ignition
• Common symptoms: uneven or yellow flames, extended clicking before ignition, sooty cookware, or visible cap damage

• Allow the cooktop to cool completely; disconnect power and shut off gas if working near ignition components
• Lift off the old cap; clean the burner head and seating surface
• Set the new cap flat and centered; it should sit level with no wobble
• Test ignition and flame; reseat the cap if the flame is uneven or noisy

This enamel outer burner cap fits over the outer ring of a gas range or cooktop burner. It shapes a stable, even flame and protects the burner head from spills to help ensure quick ignition and consistent heating.

• Distributes flame from the outer ring for even heat across cookware
• Supports reliable ignition; a warped, chipped, or missing cap can cause long clicking or delayed lighting
• Shields burner ports from spills and debris that can clog and reduce performance
• Seats flush on the burner head; misalignment can lead to yellow or uneven flames

• Turn all controls off and allow the surface to cool completely before servicing
• Lift off the old cap; clean and dry the burner head and mating surfaces
• Center the new cap on the burner so it sits flat without rocking
• Light the burner to verify a stable, even flame; reseat the cap if needed

This outer cap (AFB) fits the appliance's airflow/fan assembly and protects the blower opening while helping direct airflow. It restores proper clearance and prevents debris entry for more reliable operation. What it does:

• Covers and protects the blower/airflow opening to keep lint and debris out
• Helps maintain correct airflow direction through the blower assembly
• Can address noisy or restricted airflow symptoms when damaged or missing
• Restores proper fit and sealing around the fan area to reduce air leaks

• Disconnect power to the appliance before beginning any service
• Remove only the panels required to access the blower housing; keep track of fasteners
• Inspect surrounding seals and the blower for damage while replacing the cap

This inner burner cap sits over the center of the gas burner head to shape the flame and shield the burner ports. Restore an even flame pattern and reliable ignition when the original cap is worn, warped, or missing.

• Covers the inner ring of the burner head to focus heat and protect ports from spills
• Helps produce a stable, even flame for consistent cooking performance
• Aids ignition by properly channeling gas/air toward the igniter
• Common signs it's needed: uneven or yellow flames, delayed ignition or constant clicking, visible damage, or a cap that won't sit level

• Turn all burners off and allow the cooktop to cool completely before handling
• Match the cap to the correct burner; center it on the burner head and ensure it sits flat
• No tools required; do not force the cap into place
• After installation, light the burner to confirm an even flame around the ring

The Burner Head Assembly is an OEM replacement part for GE gas cooktops. Specifically designed for a 12,000 BTU output, this burner assembly is responsible for delivering efficient and powerful heat to your cookware, providing precise heat distribution and flame control.

Symptoms of a faulty head burner assembly include:

• Uneven heating or hot spots on cookware
• Weak or inconsistent flames
• Difficulty in adjusting flame intensity

A bad head burner assembly can occur due to wear and tear over time, clogs or blockages in the burner ports, or damage from spills or heavy pots. If you notice issues such as uneven heating, weak flames, or difficulty in adjusting the flame intensity, it may be time to replace the old or damaged head burner assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This burner head assembly delivers a focused, high-heat flame for a gas cooktop or range, restoring proper burner performance for even cooking. It replaces a worn or damaged burner head to help re-establish correct ignition and flame shape. What it does:

• Directs and shapes the burner flame for consistent heat output across cookware
• Works with the burner cap and valve to maintain steady ignition and flame height
• Commonly replaces burner heads that are cracked, corroded, or producing uneven flames
• Can resolve issues like weak flames, yellow tipping, or flame blowout under normal use conditions

• Turn off the gas supply and electricity to the appliance before starting any work.
• Remove grates and burner caps; lift out the old burner head and set the new piece in place—verify correct alignment with the valve or orifice.
• Keep parts and screws organized; tighten fittings just until snug to avoid damage.

This surface ring burner replaces a damaged or worn cooktop burner ring to restore proper flame distribution on gas ranges. It fits into the burner assembly and provides a stable base for the burner cap and grate. What it does:

• Replaces a cracked, warped, or corroded burner ring that interferes with even heating
• Helps correct uneven or wandering flames caused by a damaged ring
• Restores proper alignment for the burner cap and grate for reliable cooking
• Can reduce sputtering or interrupted ignition when the ring is the source of the problem

• Always shut off the gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the burner ring; confirm part orientation before removal
• Hand-tighten fittings only; do not modify the part or appliance gas fittings
• If you smell gas, stop work immediately, ventilate the area.

This AFB oven igniter lights the gas burner by producing the hot glow needed to ignite gas for baking and broiling. It restores reliable ignition so the oven can reach and maintain cooking temperatures. What it does:

• Glows hot to ignite the oven/broil burner when the control calls for heat
• Replaces a cracked, broken or non-glowing igniter that prevents the oven from heating
• Helps stop repeated clicking or failed ignition caused by a faulty igniter
• Works as the direct replacement for the oven ignition component specified for compatible GE gas ranges

• One oven igniter (AFB) as shown

• Disconnect power and shut off the gas supply before starting any repair
• Handle the igniter carefully — the tip and ceramic are fragile and may break if dropped or touched
• Basic hand tools are typically required; verify correct orientation and secure mounting before restoring power/gas

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

A replacement spark electrode that creates the ignition spark for a gas cooktop burner so burners light reliably. Fits common GE ranges and helps restore normal ignition when a burner won't light. What it does:

• Produces the high-voltage spark that ignites the gas at a surface burner
• Stops ignition failure symptoms like no spark, inconsistent lighting, or constant clicking
• Works with the burner cap and valve to enable normal burner operation
• Replaces a cracked, broken, or corroded electrode that prevents ignition

• One igniter (spark electrode)

• Disconnect power to the appliance before starting any repair; shut off gas supply if applicable
• Handle the ceramic tip carefully to avoid chipping; do not touch the electrode tip with bare hands
• Verify correct orientation and secure mounting; ensure proper clearance from the burner cap

Specs: 8-32 MCH PNT15

This grate foot cushions and stabilizes the burner grate on your gas range or cooktop. Replacing worn or missing feet helps stop wobbling, reduce rattling, and protect the cooktop surface from scratches and chips.

• Supports and levels the grate at its contact points on the cooktop
• Provides a non-slip buffer to reduce noise and vibration
• Helps prevent scratches and damage to the cooktop surface
• Common signs to replace: missing/brittle feet, grate rocks or wobbles, marks on the surface

• Allow the appliance to cool completely before starting
• Remove the grate; pull off the worn foot and clean the mounting area of residue
• Press the new foot firmly into place; if your model uses an adhesive pad or high-temp adhesive, follow OEM instructions and cure time
• The grate sits level and stable before use

This cooktop burner grate supports pots and pans above the flame for safe, stable cooking. Replace a cracked, warped, or missing grate to restore a level surface and consistent heat contact on your gas range or cooktop.

• Provides sturdy support for cookware over the burner
• Maintains proper pan height and clearance for efficient heating
• Helps prevent pans from tipping or rocking during use
• Common symptoms: cracks, broken prongs, warping, wobbling cookware, or excessive chipping

• Ensure all burners are off and the surface is completely cool before handling
• Lift off the old grate and clear any debris from the support area
• Place the new grate so it sits flat and centered over the burner
• Verify stable pan contact before cooking

This maintop is the upper cooktop surface that supports burners and cookware, restoring a clean, finished look and protecting internal components from spills and debris. Designed as a direct replacement to maintain proper fit and function. What it does:

• Replaces a damaged, warped, or heavily scratched maintop to restore safe, stable support for burners and cookware.
• Protects underlying wiring and components from spills and food debris that can cause corrosion or damage.
• Helps maintain proper burner alignment and appearance for smooth, reliable cooking.
• Matches black finish to keep the cooktop looking uniform and easy to clean.

• One black maintop

• High-level replacement; disconnect power to the appliance before starting to prevent shock.
• Removal usually requires lifting off burners and removing retaining screws—keep fasteners and trim for reuse unless damaged.
• Handle edges carefully to avoid scratching the finish; use a soft surface and a helper for alignment.

This mounting bracket secures the range/oven power supply assembly to the appliance frame, keeping the supply stable and properly positioned for reliable operation and safe electrical connections. What it does:

• Holds the power supply assembly in place to prevent movement and vibration
• Helps maintain correct alignment of electrical connections to avoid intermittent power
• Reduces strain on wiring and components that can cause arcing or connection issues
• Supports safe operation by keeping the supply mounted away from heat and other parts

• Turn off and disconnect power at the breaker before servicing to avoid electrical shock
• Handle sharp sheet-metal edges with care and wear gloves
• Verify proper orientation and secure all fasteners; confirm wiring is routed clear of moving parts and heat sources
