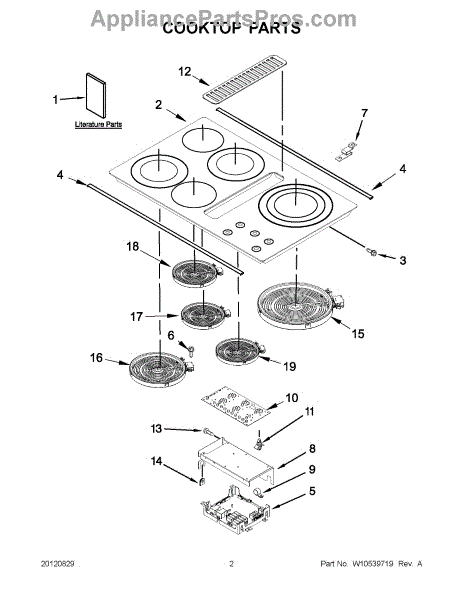

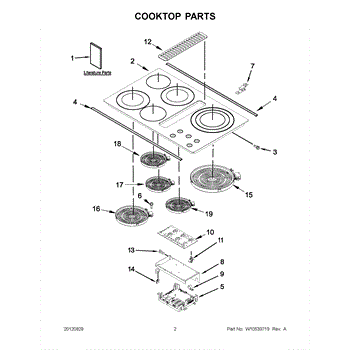

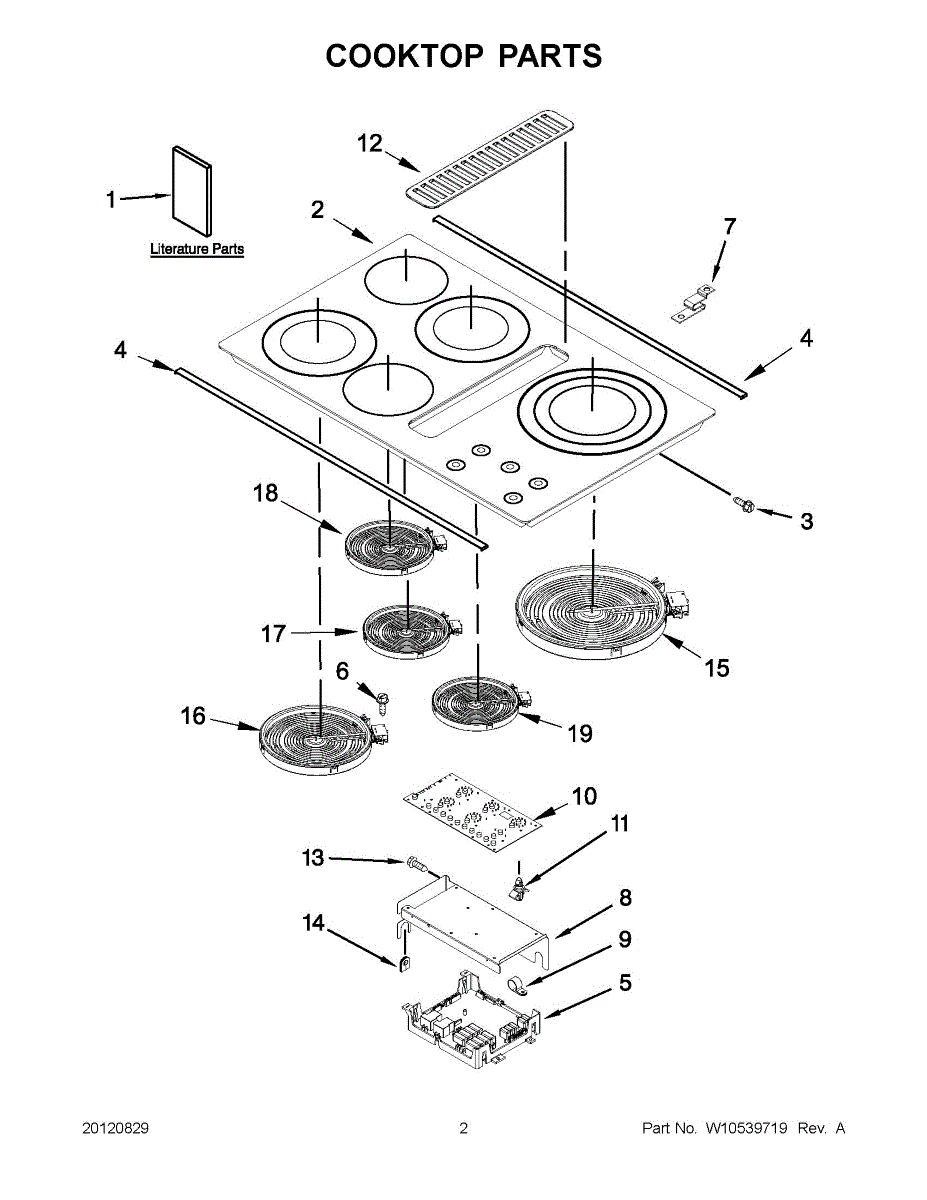

Parts for Jenn-Air JED4536WS02: 01 - Cooktop Parts

This is the main cooktop surface assembly that houses the heating elements and provides the cooking surface. It includes the glass or metal top where pots and pans are placed for cooking. Replace this part if the cooktop surface is cracked, warped, or has damaged heating element connections that prevent proper cooking.

This glass cooktop provides the main cooking surface for your electric range with a smooth, easy-to-clean finish over the heating elements. It distributes heat evenly across the cooking surface while protecting the elements underneath. Replace this cooktop if it's cracked, has burn marks that won't clean off, or heating elements are visible through the glass.

Replacement trim piece that restores the finished edge around your cooktop. Covers gaps between cooktop and countertop. Replaces worn, dented, or bent trim.

This control board relay replaces the relay on the appliance's electronic control to restore reliable switching of high-current components. It helps the control safely turn motors, heaters and compressors on and off as commanded. What it does

• Acts as the high-current switching relay mounted to the electronic control board
• Enables the control board to power motors, heaters or compressors when needed
• Can resolve intermittent or no-operation symptoms caused by a failed relay
• Stop clicking, non-start, or loss of specific functions when replaced

• Disconnect power to the appliance before starting any repair.
• Handle the relay and control board by the edges; avoid touching circuitry.
• Verify harness connectors seat fully and wires are undamaged before reassembly.
• After installation, restore power and run a short test cycle to ensure proper operation.

Fixes a loose or sagging oven heating element. This support bracket secures your bake element in proper position for safe, even heating. Easy install.

This is an air grille that covers the downdraft vent opening on a cooktop or range. It allows air to flow into the downdraft ventilation system while providing a finished appearance on the cooktop surface. Replace this grille if it is cracked, warped, discolored, or if the vent slats are broken and restricting proper airflow.

Burner only partially heating or not working? This surface heating element restores even cooking. DIY-friendly repair with photos of wire connections.

If your cooktop burner won't heat or only partially heats, this radiant surface element restores consistent heating. Most DIYers complete in 45-60 minutes.

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Warming element not heating? This low-watt surface element restores gentle heat to keep food at serving temperature. Simple DIY repair in under 30 minutes.
