Parts for Kenmore 917.4368213 (9174368213, 917 4368213): Cooktop Parts

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Package of 12

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling

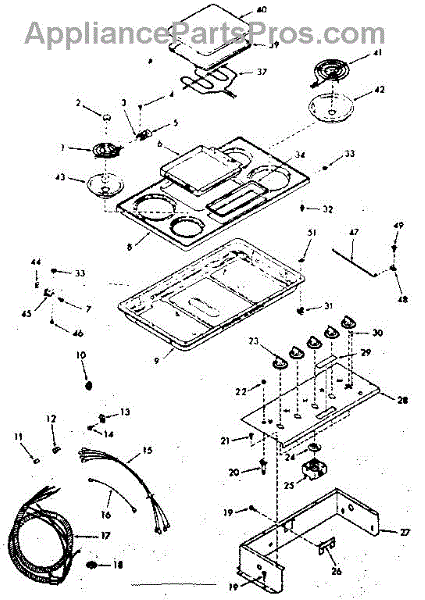

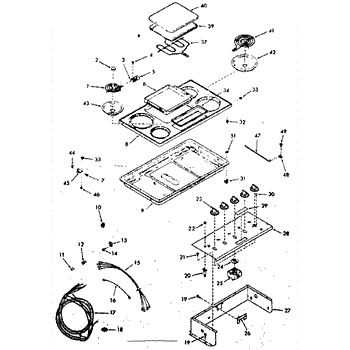

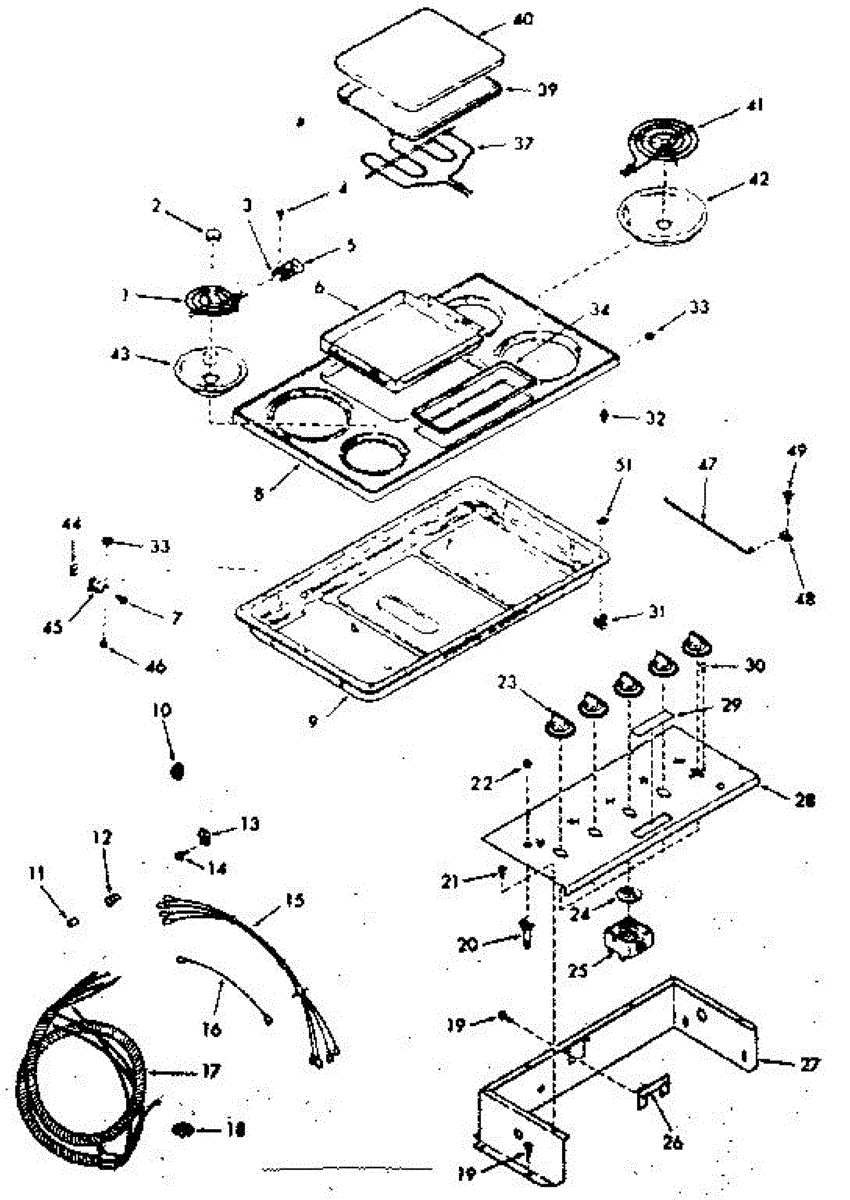

• Refer to your model's parts diagram to confirm location and quantity

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This terminal block support is an electrical insulator that holds and protects the oven/range terminal block assembly, helping keep power connections secure and separated. Replaces a cracked or melted support to restore safe terminal mounting. What it does

• Secures the terminal block in place so incoming power wires stay properly positioned
• Keeps live terminals separated to reduce risk of shorting or arcing
• Commonly replaced when the support is cracked, broken, burned or warped
• Helps restore reliable electrical connection after terminal-block damage

• One terminal block support/insulator

• High-level replacement: disconnect power at the breaker before service; part installs near the incoming-power terminal block
• Inspect adjacent wiring and terminal block; replace any damaged connectors or wires

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

The 8-Inch Large Drip Pan is an OEM part for GE ranges and cooktops. This drip pan is designed to sit beneath the heating element, catching any spills, drips, or overflow that occurs during cooking. It helps to protect the range from food debris and liquids, making cleaning easier and preventing damage to the stove's surface.

Symptoms of a failing Drip Pan include:

• Visible wear, rust, or corrosion on the pan
• Difficulty in fitting the pan securely beneath the heating element
• Accumulation of burnt food or discoloration that cannot be cleaned
• The pan becoming warped or damaged from high heat exposure

Causes of a bad drip pan can include regular wear and tear from frequent use, exposure to high temperatures, and spills from cooking. Over time, these factors can lead to rust, corrosion, and other forms of damage that necessitate replacement.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.

The 6 Inch Small Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit beneath the burner element to catch spills and drips that occur during cooking. This helps keep the stovetop clean and reduces the risk of burns and fire by preventing spills from coming into direct contact with the heating elements. For the 8-inch large drip bowl order WB32X106

Symptoms of a bad Drip Pan include:

• Rust or corrosion that can no longer be cleaned off
• Warping or changes in shape that prevent it from fitting properly under the burner
• Accumulation of stubborn residues that can't be removed, leading to smoke and odors during cooking

Common causes for replacing the drip pan include prolonged exposure to high heat which can cause discoloration and deformation, as well as accidental damage during cleaning or heavy use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
