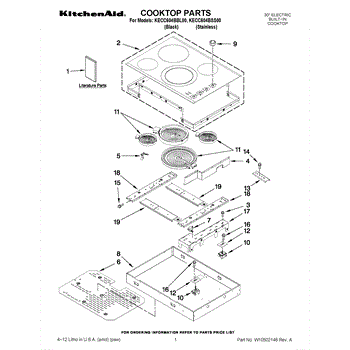

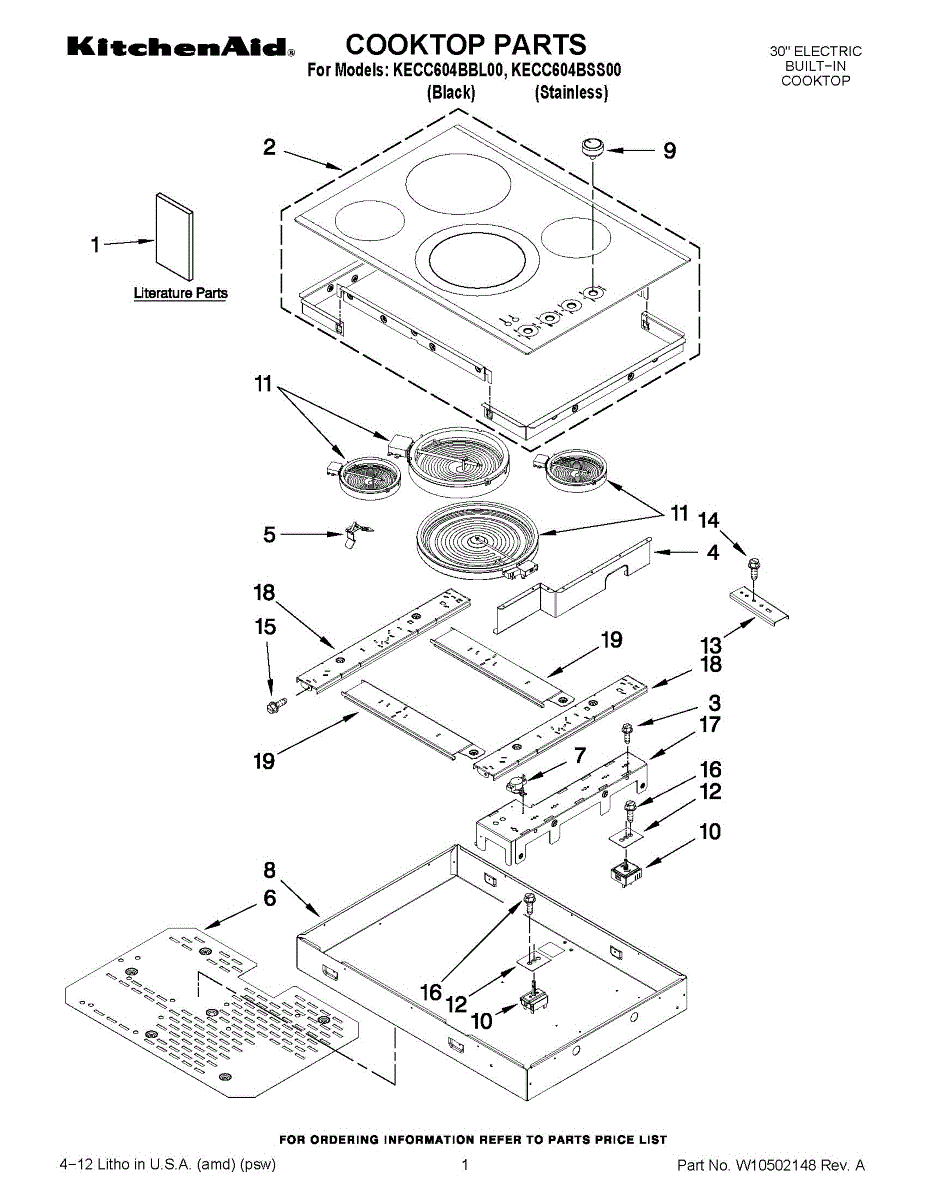

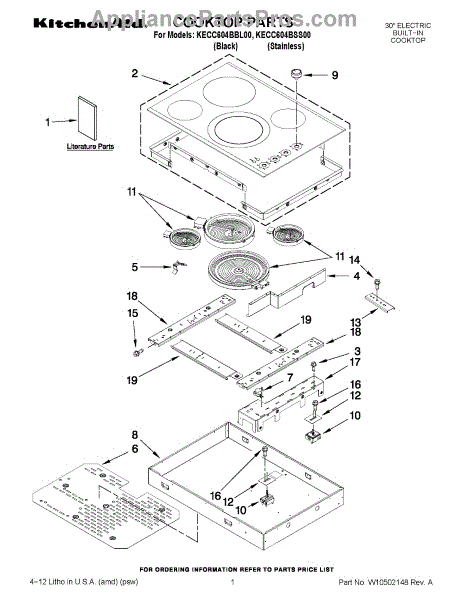

Parts for Kitchenaid KECC604BBL00: 01 - Cooktop Parts

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

This control knob restores manual control of a range or cooktop burner so you can select heat settings with a secure, easy-to-grip dial. Designed to match the original fit and feel for simple replacement. What it does:

• Replaces a cracked, stripped, or missing control knob so you can turn burners or temperature controls smoothly
• Provides tactile detents and clear position changes for reliable setting selection
• Prevents slipping on the shaft that causes inaccurate or inconsistent control
• Helps restore a finished look to the control panel when the original knob is damaged

• Disconnect power (and gas supply if applicable) before servicing the appliance
• Remove the old knob by pulling straight off the control shaft; align splines and push the new knob onto the shaft until seated
• Do not force or hammer the knob onto the shaft; verify correct fit and function before reapplying power or gas
• If the shaft is damaged or the knob doesn't seat properly, inspect the control valve/shaft and replace as needed

This infinite switch is the user control for an electric cooktop surface element, letting you select variable heat settings for cooking. Replaces a failed control to restore responsive temperature adjustments. What it does:

• Regulates power to a surface heating element so the burner cycles through low to high heat settings
• Helps fix burners that won't heat, only work on certain settings, or don't change temperature smoothly
• Provides a direct replacement for a worn or intermittent burner control that causes inconsistent cooking
• Works with ranges that use a separate infinite-style selector for each top burner

• One infinite switch

• Disconnect power to the range at the breaker before servicing to avoid shock risk
• Access usually requires removing the back console or cooktop—refer to your model's service manual for instructions
• Handle terminals carefully; ensure correct wiring and secure connections before testing

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

This dual infinite switch controls power to a dual radiant surface element, providing smooth, adjustable heat for the inner ring or both rings of the burner. Replace a worn switch to restore precise temperature control and consistent performance.

• Regulates voltage to the surface element for variable heat levels
• Selects inner-only or dual-ring operation as designed by the control
• Common symptoms of a failed switch: no heat, stuck on high, uneven or unresponsive temperature, only one ring heats
• Helps restore reliable low-to-high settings on the dual burner

• Disconnect electrical power at the breaker before servicing
• Remove the control/back panel and knob to access the switch
• Photograph wiring and transfer leads one at a time to matching terminals on the new switch
• Secure the switch, reassemble panels/knob, restore power, and test both single- and dual-ring settings

This 300mm, 3000W radiant surface element restores the large cooking zone on a smooth-top range or cooktop. Replace it to bring back consistent, even heating when the large burner stops working or only heats partially. What it does:

• Supplies radiant heat to the large surface burner beneath the glass cooktop
• Common fix for a burner that won't heat, only part of the ring glows/heats, or shows a visible burned spot/break
• Helps restore even heating and proper cycling when the original element has failed

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the glass top per service instructions to access the elements; support the glass and keep insulation in place
• Transfer mounting hardware and wires one at a time to matching terminals; handle the ceramic element carefully—it is fragile
• Reassemble and test the burner for proper operation before returning to use

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model
