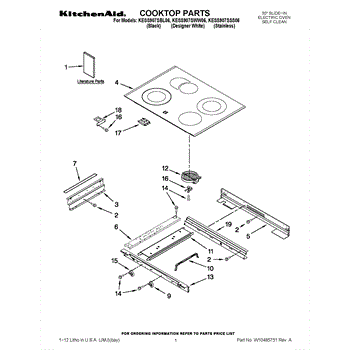

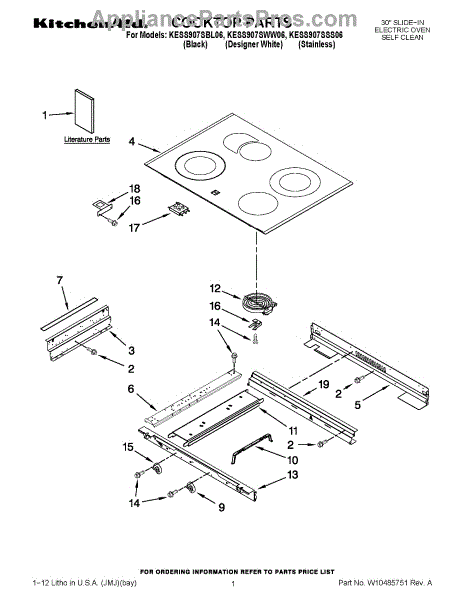

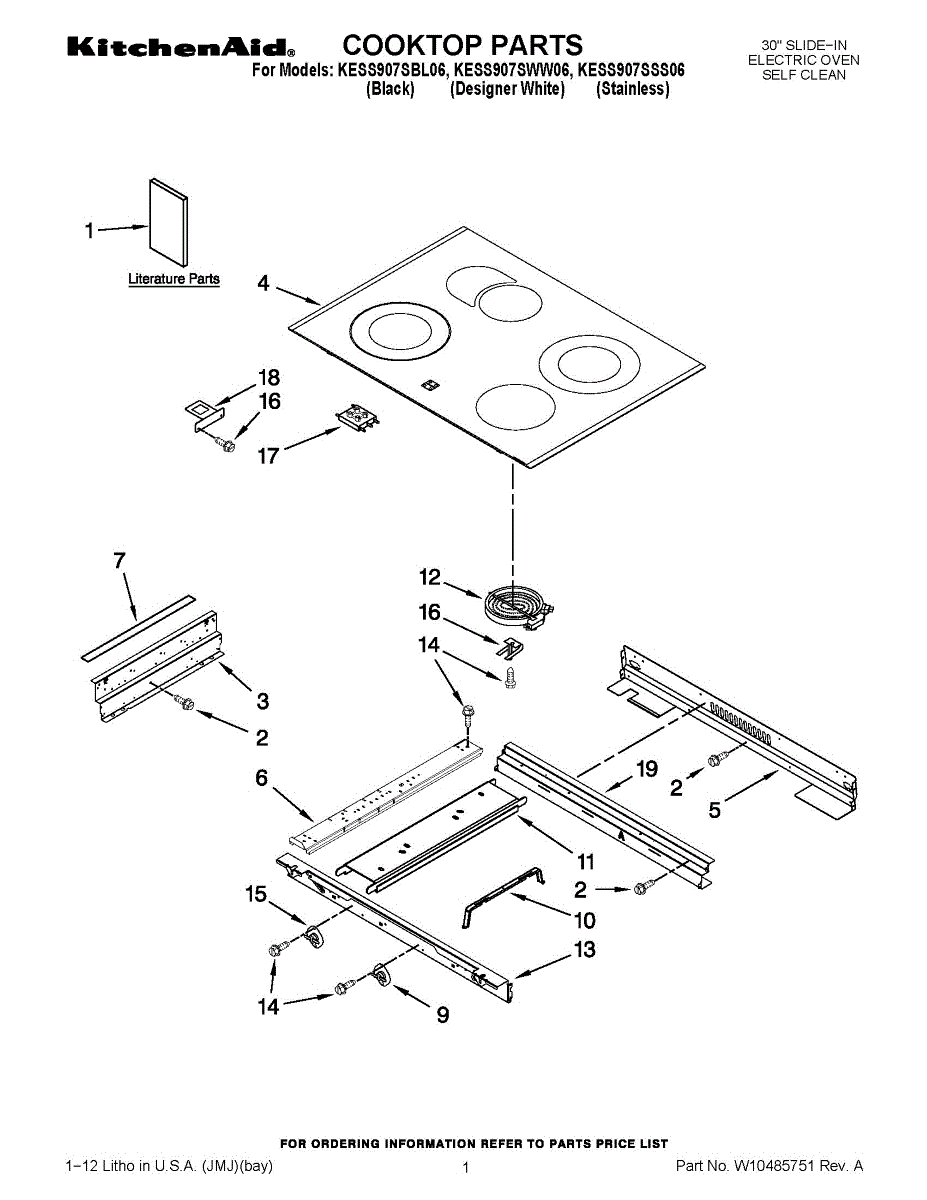

Parts for Kitchenaid KESS907SSS06: 01 - Cooktop Parts

Size: 6-32 x 3/8 inch.

Glass cooktop surface for ranges. Replaces cracked, chipped, or broken cooktops. Provides a flat cooking surface for burners. Essential repair part.

Black glass cooktop surface for electric ranges. Replaces cracked, broken, or damaged glass tops. Installs over heating elements with trim brackets.

Secures your oven gasket in place for a tight seal and consistent cooking. Replace if gasket is loose or heat escapes. Confirm fit with your model number.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Burner not heating evenly or taking too long to boil water? This surface heating element restores proper heat output. Moderate DIY repair.

Burner not heating or heating unevenly? This dual radiant surface element restores consistent heat to both rings. DIY-friendly, installs in 15 minutes.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Replacement tension spring for cooktop assemblies. Restores proper tension for moving components. Order when original is stretched, broken, or missing.

Hot surface
