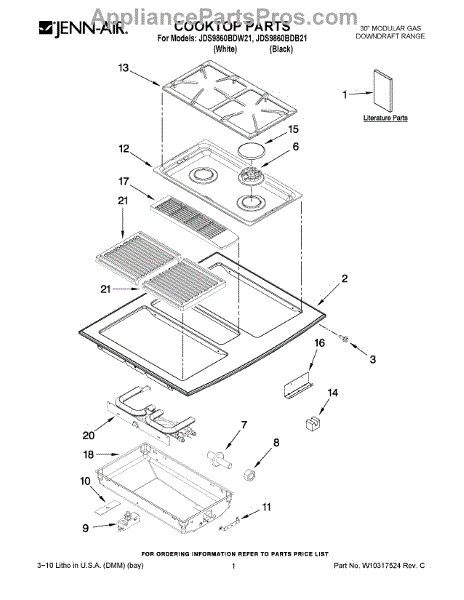

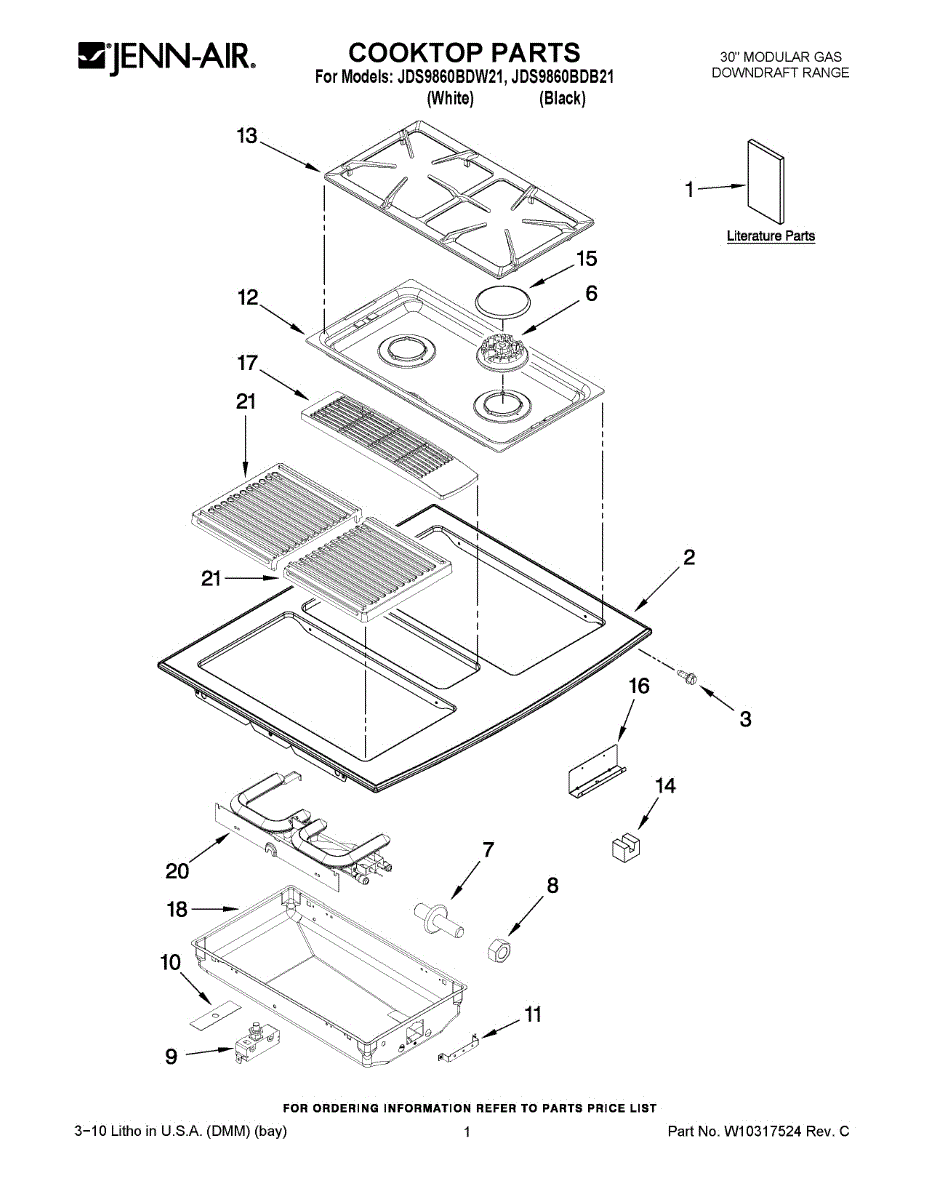

Parts for Maytag JDS9860BDB21: 01 - Cooktop Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

A replacement SN switch that restores the appliance's control function so selections and features respond reliably. Installs in the original switch location to return consistent on/off or selector operation after a switch failure. What it does:

• Opens and closes the electrical circuit to control the associated function or component.
• Replaces a worn or failed switch to stop intermittent operation or loss of control.
• Common symptoms it can fix: appliance not responding to a selector/setting, intermittent power to a component, or a component that won't turn on.
• Functions as the user-facing or internal control switch depending on the model application.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• May require removing an access or control panel; use basic hand tools and note wire locations before disconnecting.

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.
