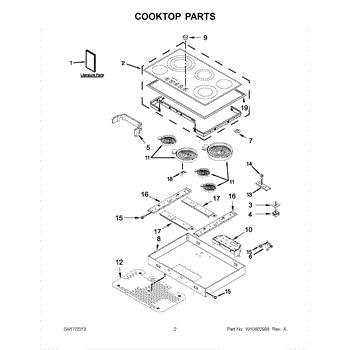

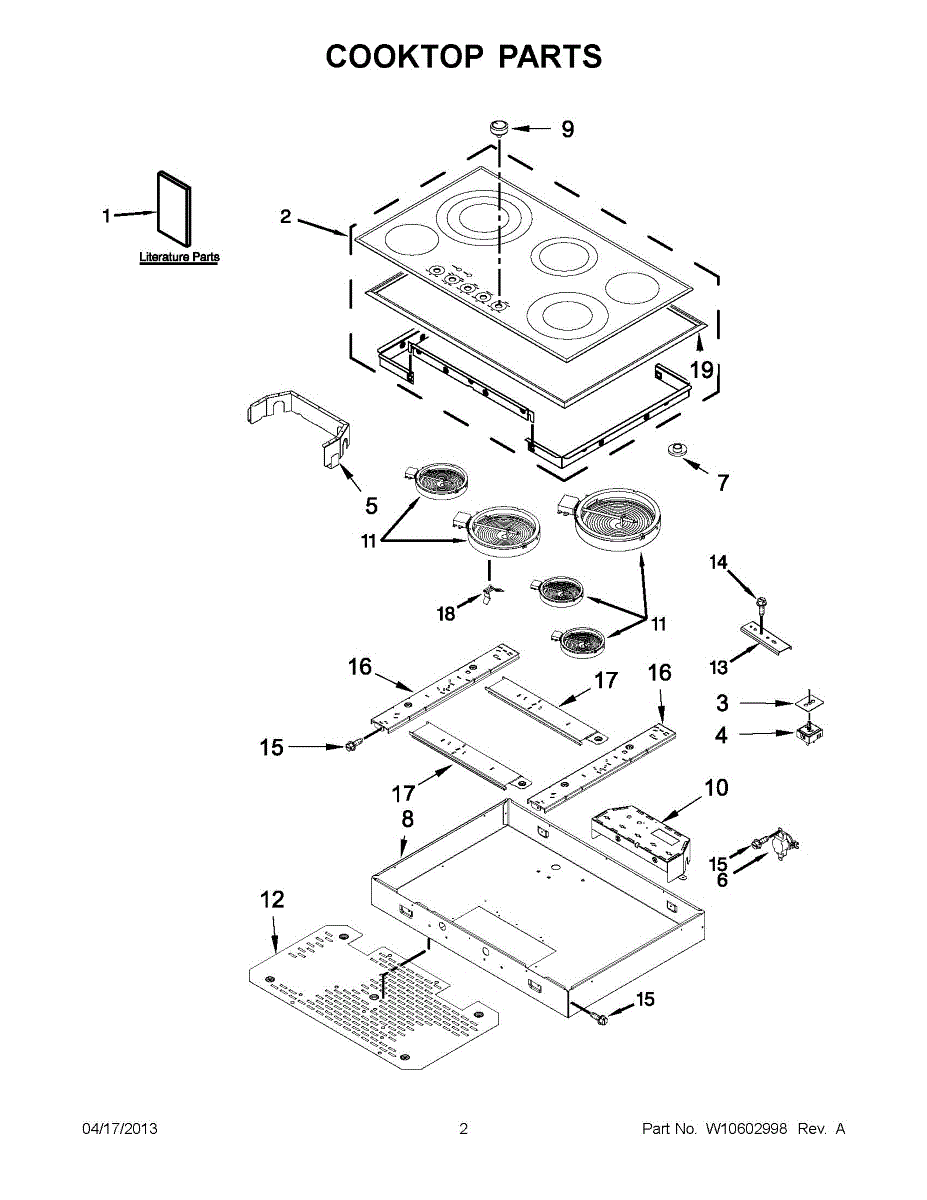

Parts for Maytag JEC3536BB00: 01 - Cooktop Parts

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This infinite switch is the user control for an electric cooktop surface element, letting you select variable heat settings for cooking. Replaces a failed control to restore responsive temperature adjustments. What it does:

• Regulates power to a surface heating element so the burner cycles through low to high heat settings
• Helps fix burners that won't heat, only work on certain settings, or don't change temperature smoothly
• Provides a direct replacement for a worn or intermittent burner control that causes inconsistent cooking
• Works with ranges that use a separate infinite-style selector for each top burner

• One infinite switch

• Disconnect power to the range at the breaker before servicing to avoid shock risk
• Access usually requires removing the back console or cooktop—refer to your model's service manual for instructions
• Handle terminals carefully; ensure correct wiring and secure connections before testing

This surface burner infinite switch is the behind-the-knob control for an electric cooktop or range. It regulates power to a single surface element so you can dial in and maintain the heat you need.

• Regulates on/off power cycling to a coil or radiant surface element for variable heat control
• Helps address issues such as a burner not heating, only heating on high, not turning off, or fluctuating temperature
• Installs behind the control panel; connects with spade terminals to line, load, and element leads
• Single-surface-element control for one burner position

• Disconnect power before servicing; this component carries high voltage
• Note wire positions or transfer one wire at a time from the old switch to the new switch
• Secure the switch to the control panel and align the shaft with the control knob
• Reassemble and verify smooth low-to-high burner operation

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops, intricately designed to regulate the heat of the burners. This essential component allows for precise temperature control, enabling users to adjust the heat setting from low to high with infinite variability, hence its name.

The primary causes for these issues often stem from electrical problems within the switch itself, such as worn contacts or internal components failing.

Symptoms of a malfunctioning Infinite Switch include:

• The burner not heating up or only reaching a single temperature, regardless of the setting
• The burner heating intermittently or not turning on at all
• Unpredictable temperature fluctuations, making cooking difficult and unreliable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

This genuine replacement control knob restores user control of a stove or range control panel for reliable temperature and setting selection. It replaces a cracked, loose, faded, or missing knob so you can safely and precisely operate your appliance. What it does

• Fits onto a stove/range control shaft to turn heat and function settings.
• Replaces worn, cracked, or non-engaging knobs that slip or won't turn.
• Restores clear tactile control for burners or oven functions.
• Helps prevent accidental setting changes from damaged knobs.

• One replacement control knob.

• Turn controls off and disconnect power to the appliance before servicing.
• Pull the old knob straight off the control shaft; press the new knob firmly onto the shaft until seated.
• Verify proper fit and function before returning the appliance to normal use.

Surface heating element that supplies a 700-watt top-burner heat source for compatible electric ranges, restoring reliable low-heat cooking and precise simmering performance on the affected burner. What it does:

• Provides 700W of heat for a small/simmer cooktop burner to support low- and medium-heat cooking.
• Replaces a burner element that won't heat, heats intermittently, or shows visible damage or burn marks.
• Restores normal burner operation so cookware heats more evenly on that zone.
• Fits into the existing cooktop receptacle and connects to the range wiring without additional heating components.

• Disconnect power at the circuit breaker or unplug the range before servicing.
• Allow the old element to cool fully before removal; handle terminals carefully to avoid bending.
• Inspect terminal clips and wiring for damage during installation; replace any damaged connectors or receptacles.

• Wattage: 700W
• Sold individually

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

Restore a reliable burner with this replacement surface element. It provides the heat your cookware needs so meals warm efficiently and evenly when the control is turned on, replacing a worn or failed top burner element. What it does:

• Heats the selected cooking zone when its control is engaged
• Replaces a failed, shorted, or physically damaged element
• Helps resolve issues like a burner not heating, heating only partially, or heating inconsistently
• Supports even cooking performance across the cooking surface

• 1 surface element

• Disconnect power at the breaker or unplug the appliance; allow all components to cool
• Access the element; support the cooktop surface if lifted
• Move wires to the new element one at a time to maintain correct connections; reuse existing brackets as needed
• Handle the element carefully; avoid touching heating surfaces and verify secure connections before reassembly and testing

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed
