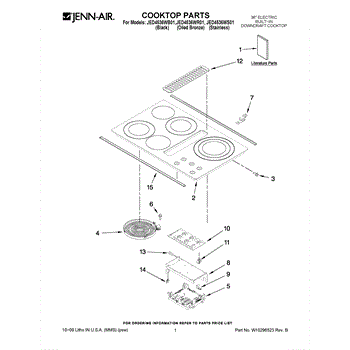

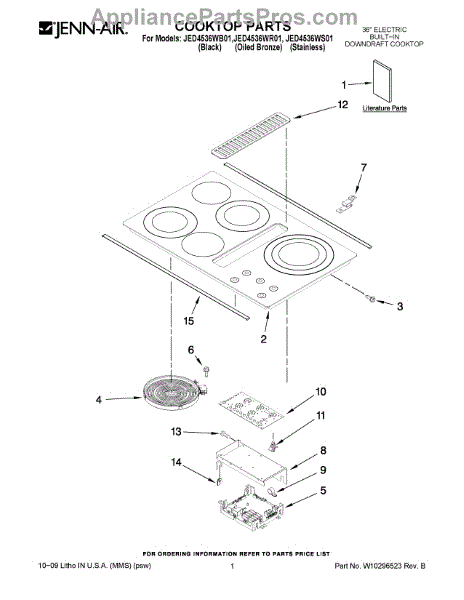

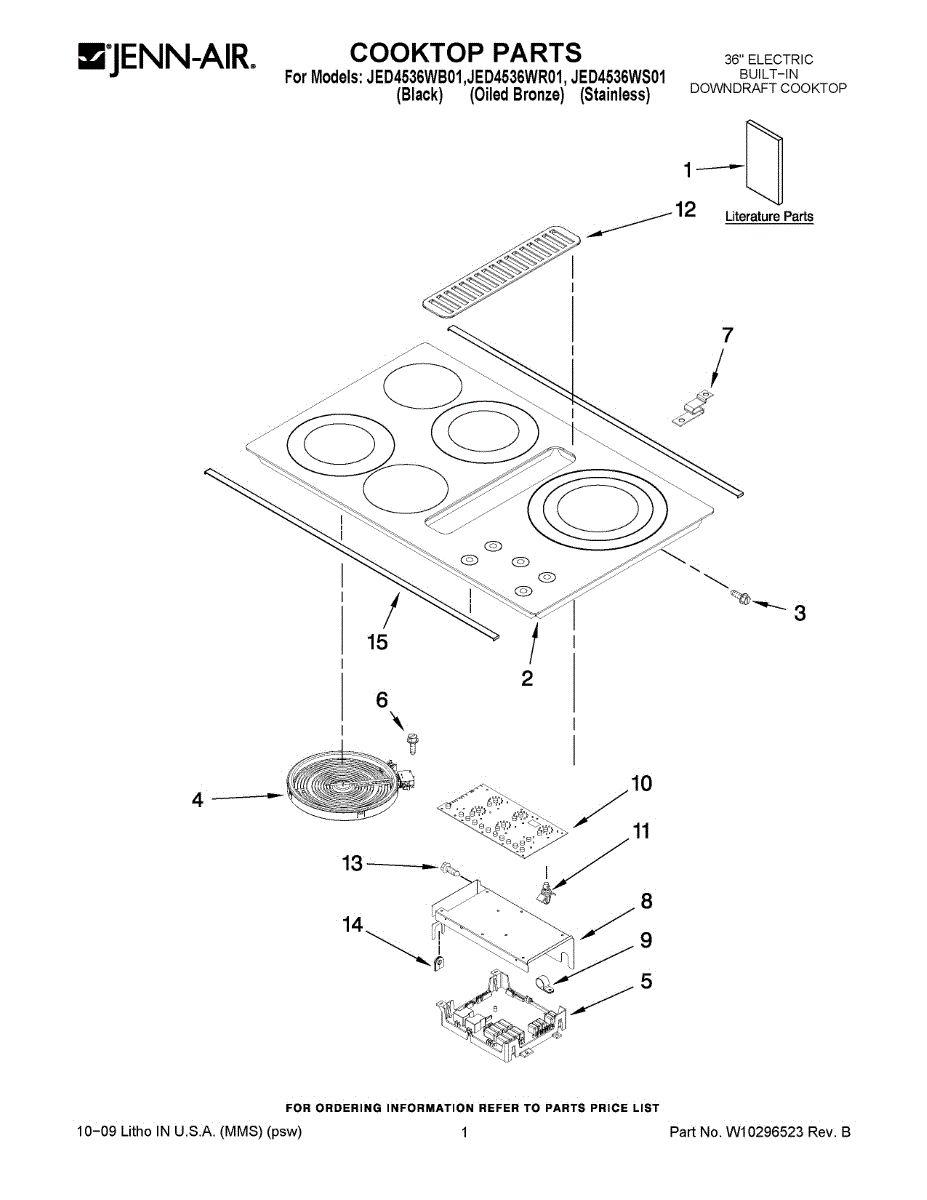

Parts for Maytag JED4536WS01: 01 - Cooktop Parts

The Cooktop is an OEM component specifically designed for Whirlpool electric ranges. Comprising the glass-ceramic surface with integrated heating elements below, the cooktop provides the essential cooking area. Through precise temperature controls, the cooktop allows for the versatile preparation of meals.

Causes of a bad cooktop can include cracks developing from thermal stress over many years of use. Mineral residues may accumulate on coil elements obscuring heat output.

Symptoms of a bad cooktop include:

• Pans heating unevenly or temperature control unreliability
• Discolored, pitted, or shimmering patches on the glass surface
• Loose, raised, or obstructed coils prevent flush contact

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.

This 100-watt surface element is the replacement warmer element used to keep food warm in compatible appliance warming drawers and compartments. Restores low-level heat so dishes stay at serving temperature between cooking and serving. What it does

• Provides low, consistent heat for warming drawers or warming compartments
• Replaces a failed or weak warmer element that no longer heats or maintains temperature
• Helps eliminate cold spots or inability to hold food at serving temperature
• Works as the heating source; element must be intact and wired correctly to function

• One 100W surface warmer element

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle the element and surrounding surfaces carefully; glass and ceramics can be fragile
• Verify electrical connections and mounting fit before final reassembly

This radiant surface element uses a ribbon-style heater to provide even heat beneath a glass-ceramic cooktop. Replace a failing burner to restore consistent, reliable heating on the affected cooking zone.

• Provides radiant heat to one surface burner zone beneath the glass top
• Works with the surface control to regulate cooking temperature
• Common fix for a burner that won't heat, heats unevenly, or takes too long to heat
• Replace if the element shows an open circuit when tested for continuity

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; support the glass top per service instructions to access the element
• Transfer wires from the old element to the new one position-by-position; secure using existing brackets
• Avoid touching the element surface; test operation before reassembly

The Element-Surf is an OEM part for Whirlpool electric ranges. The element-surface performs a role in safe, even heating.

Causes of a worn or damaged element-surface can include scratches, cracks or chips from cookware use over time. Surface level issues compromise effectiveness.

Symptoms of a damaged element-surface include:

• Uneven or slow heating between elements
• Exposure of electrical components below
• Food debris easily getting lodged in irregularities
• Loss of the glossy smooth appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This control board relay replaces the relay on the appliance's electronic control to restore reliable switching of high-current components. It helps the control safely turn motors, heaters and compressors on and off as commanded. What it does

• Acts as the high-current switching relay mounted to the electronic control board
• Enables the control board to power motors, heaters or compressors when needed
• Can resolve intermittent or no-operation symptoms caused by a failed relay
• Stop clicking, non-start, or loss of specific functions when replaced

• Disconnect power to the appliance before starting any repair.
• Handle the relay and control board by the edges; avoid touching circuitry.
• Verify harness connectors seat fully and wires are undamaged before reassembly.
• After installation, restore power and run a short test cycle to ensure proper operation.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This air grille is the top front vent cover for an over-the-range microwave. It channels airflow through the intake/exhaust opening and restores a secure, finished appearance when the original grille is cracked, loose, or missing.

• Covers and protects the microwave's upper vent opening
• Helps direct intake/exhaust airflow as designed
• Restores proper fit when tabs or mounting points are damaged
• Common signs include visible cracks, rattling, or a missing vent cover

• Disconnect power to the microwave before servicing
• Open the door; remove the screws securing the top grille
• Slide the grille to release the side tabs, then pull forward to remove
• Position the new grille and reuse the original screws; hand-tighten to avoid cracking

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.
