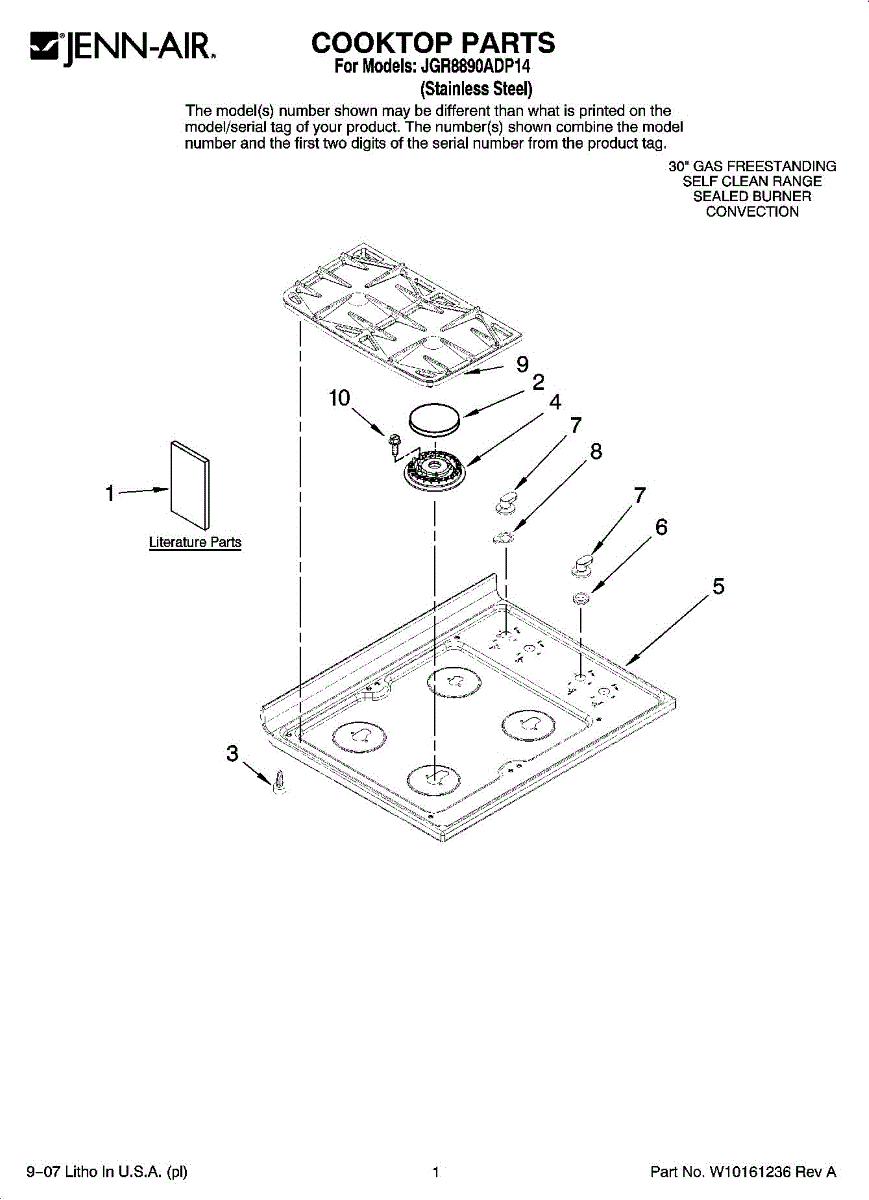

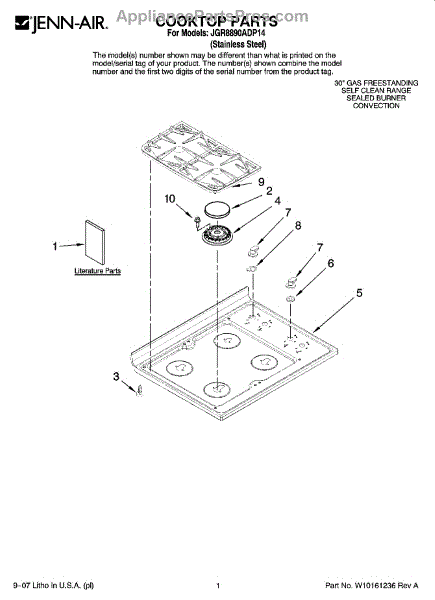

Parts for Maytag JGR8890ADP14: 01 - Cooktop Parts

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This replacement grommet seals and cushions a pass-through on your cooking appliance. It helps protect internal areas from spills, heat, and vibration while keeping the shaft, wire, or tube it surrounds securely positioned for smooth, rattle-free operation.

• Provides a tight seal where a shaft, wire, tube, or screw passes through a panel
• Helps prevent spills, grease, and heat from entering the chassis
• Cushions components to reduce vibration and wear
• Common signs of wear: missing, cracked, hardened, deformed, or loose-fitting grommet; rattling around the opening

• Disconnect power; for gas appliances, also shut off the gas supply
• Remove the knob or panel to access the old grommet
• Note orientation and seat the new grommet fully and evenly in the opening
• Reassemble and check that the component moves or fits without binding

This replacement control knob restores a clean, secure grip so you can select appliance settings smoothly. It fits onto the control shaft to operate the switch or valve when the original dial is cracked, stripped, loose, or missing.

• Turns the control shaft to select temperature, cycle, or function
• Replaces knobs that are cracked, stripped, loose, or missing
• Restores positive engagement with the underlying control
• Common symptoms: knob spins without turning the control, falls off, or wobbles

• Disconnect power; if working on a gas appliance, also shut off the gas supply
• Pull the old knob straight off the shaft
• Align the new knob with the shaft and press straight on—do not force
• If the control stem is damaged, replace the control before installing the new knob

This rubber grommet cushions and protects wiring or small appliance components from vibration and abrasion, helping reduce noise and prevent chafing where a wire or part passes through a housing. What it does:

• Cushions motor mounts or components to reduce vibration and rattling
• Protects wiring and hoses from chafing where they pass through sheet metal
• Keeps small parts seated and aligned in their mounting points
• Worn or damaged grommets can allow noise, rubbing marks, or intermittent wiring wear

• One grommet as shown

• Disconnect power to the appliance before starting any repair
• Remove panels as needed to access the worn grommet; replace with the same style grommet
• Inspect surrounding wiring, hoses, and mounting holes for damage and correct routing
• Use common hand tools

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
