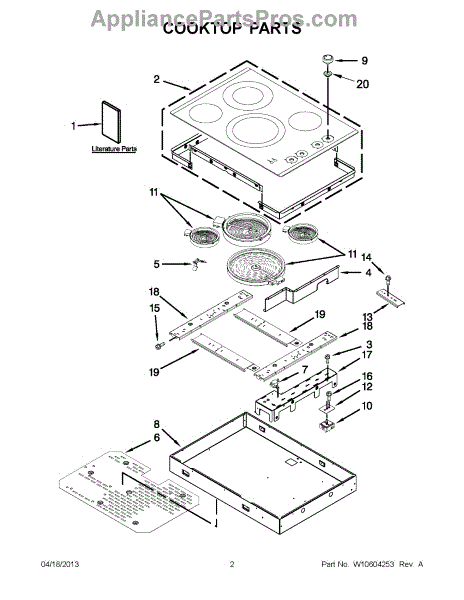

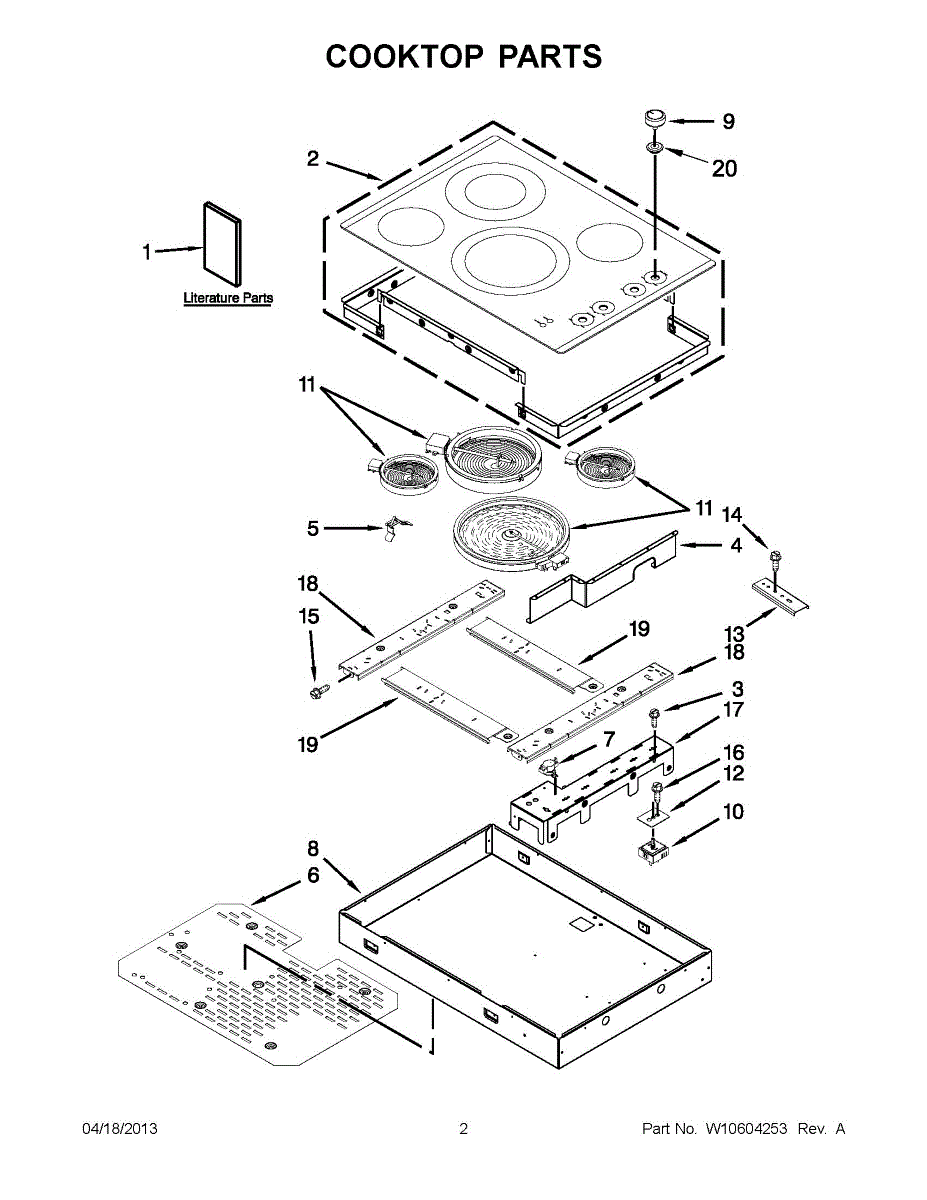

Parts for Maytag MEC9530BB00: 01 - Cooktop Parts

Replace your cracked, chipped, or damaged cooktop glass surface. This main top panel covers the burner area and provides a smooth, finished cooking surface.

Replacement glass cooking surface for electric cooktops. Installs as the main top panel. Needed when original glass is cracked, shattered, or broken.

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly

Replacement control knob for electric cooktops. Mounts to the control panel to operate burner settings. Needed when original is cracked, broken, or missing.

Replace your cooktop's control knob if cracked, broken, or missing. This die-cast knob installs on the control panel to adjust burner settings.

Burner won't heat or stuck on high? This infinite switch controls surface burner heat levels. Direct replacement restores precise temperature control.

Burner stuck on high or power light won't turn off? This infinite switch regulates cooktop element heat. DIY-friendly repair restores smooth temperature control.

Fix a burner that won't turn off, trips breakers, or sparks under glass. This dual infinite switch restores precise heat control. 3-hour DIY repair.

This 300mm, 3000W radiant surface element restores the large cooking zone on a smooth-top range or cooktop. Replace it to bring back consistent, even heating when the large burner stops working or only heats partially. What it does:

• Supplies radiant heat to the large surface burner beneath the glass cooktop
• Common fix for a burner that won't heat, only part of the ring glows/heats, or shows a visible burned spot/break
• Helps restore even heating and proper cycling when the original element has failed

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the glass top per service instructions to access the elements; support the glass and keep insulation in place
• Transfer mounting hardware and wires one at a time to matching terminals; handle the ceramic element carefully—it is fragile
• Reassemble and test the burner for proper operation before returning to use

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

Black rubber grommet that fits around cooktop control knobs. Prevents debris from entering the control panel. Replace if cracked, missing, or worn.
