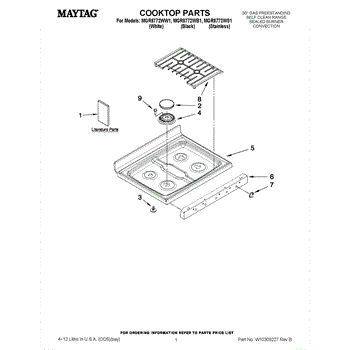

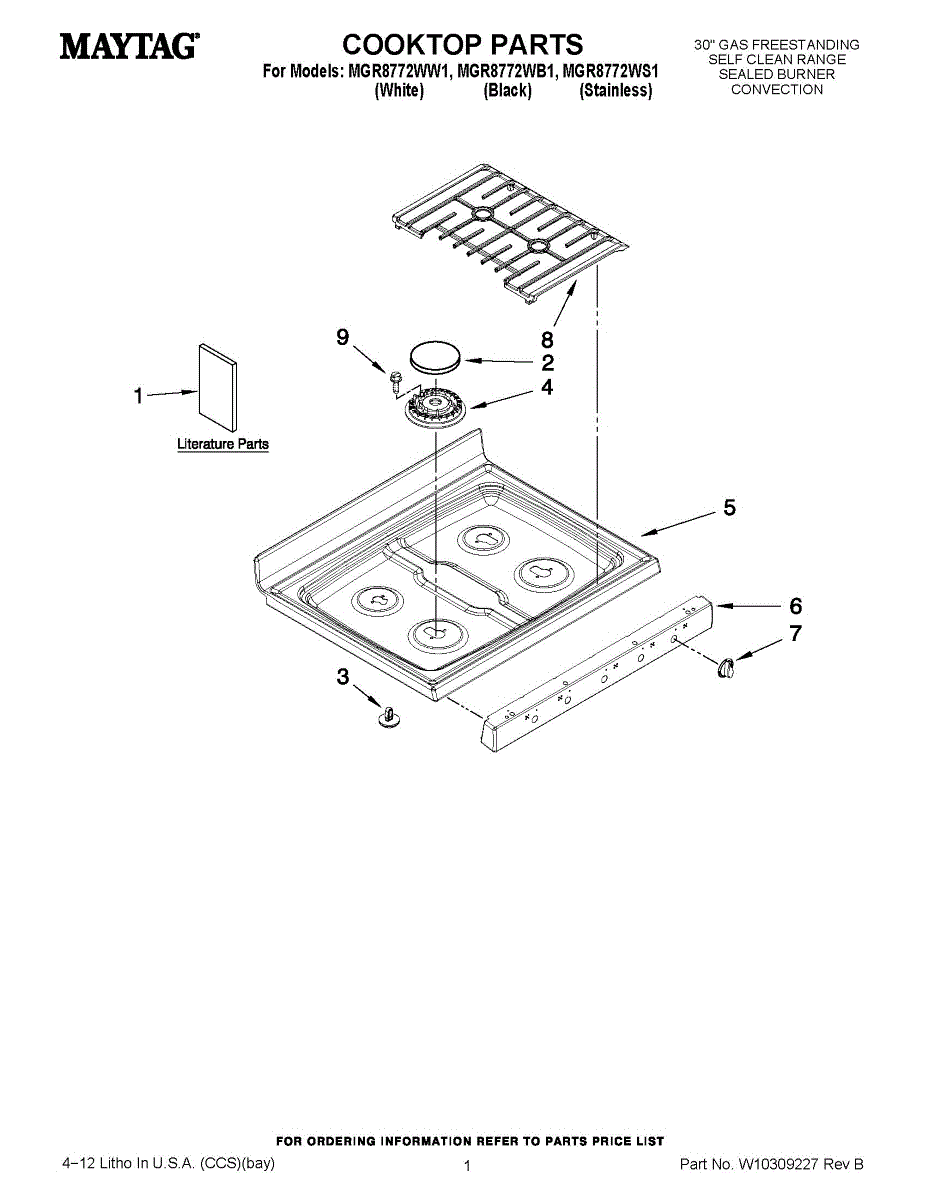

Parts for Maytag MGR8772WS1: 01 - Cooktop Parts

Color: Grey

Color: Grey

Color: Grey

The Cap-Burner (Black) is an OEM part for Whirlpool gas ranges and cooktops. This burner cap sits on top of the right rear burner head and helps distribute the flame evenly for efficient cooking. It also protects the burner head from spills and debris, ensuring proper functionality and longevity of the burner.

Over time, burner caps can become damaged or worn out due to constant exposure to high temperatures, spills, and regular cleaning. A bad burner cap can lead to uneven flames, poor cooking performance, and potential damage to the burner head.

Symptoms of a bad burner cap include:

• Uneven or irregular flame
• Flames that are too high or too low
• Difficulty igniting the burner
• Visible cracks or discoloration on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Cap is an OEM replacement part for Whirlpool gas ranges. This small part sits atop the gas burner on the left and right front to help direct flames from the jet and provide an even spread for efficient heating. Color: Black

Causes can be normal wear over time from cooking usage, as well as accidental objects left on burners that cause impact damages.

Symptoms of a damaged or worn burner cap include:

• uneven cooking temperatures
• flames that appear too high or inconsistent
• potential burner flashback or fire hazards if portions are cracked or missing.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Burner Cap (Black) is an OEM part for Whirlpool gas ranges. This cap sits on top of the burner head for the left rear and center, evenly distributing the flame for efficient cooking and protecting the burner head from spills and debris. It is designed to withstand high temperatures and ensure consistent heating performance. The caps fit the left and right front burners.

Common causes of a bad burner cap include chipping or cracking from thermal stress, rust or corrosion from spills, and wear from frequent cleaning.

Symptoms of a bad burner cap include:

• Uneven or weak flame distribution
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• The burner not functioning efficiently

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Stainless

Color: White. Measures about 2 inches in diameter.

Color: Black. It measures about 2 inches in diameter.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
