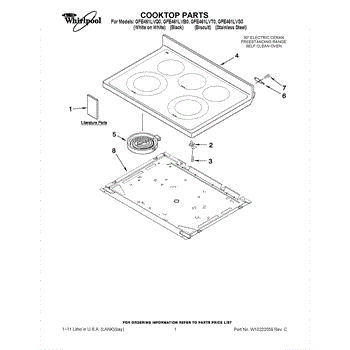

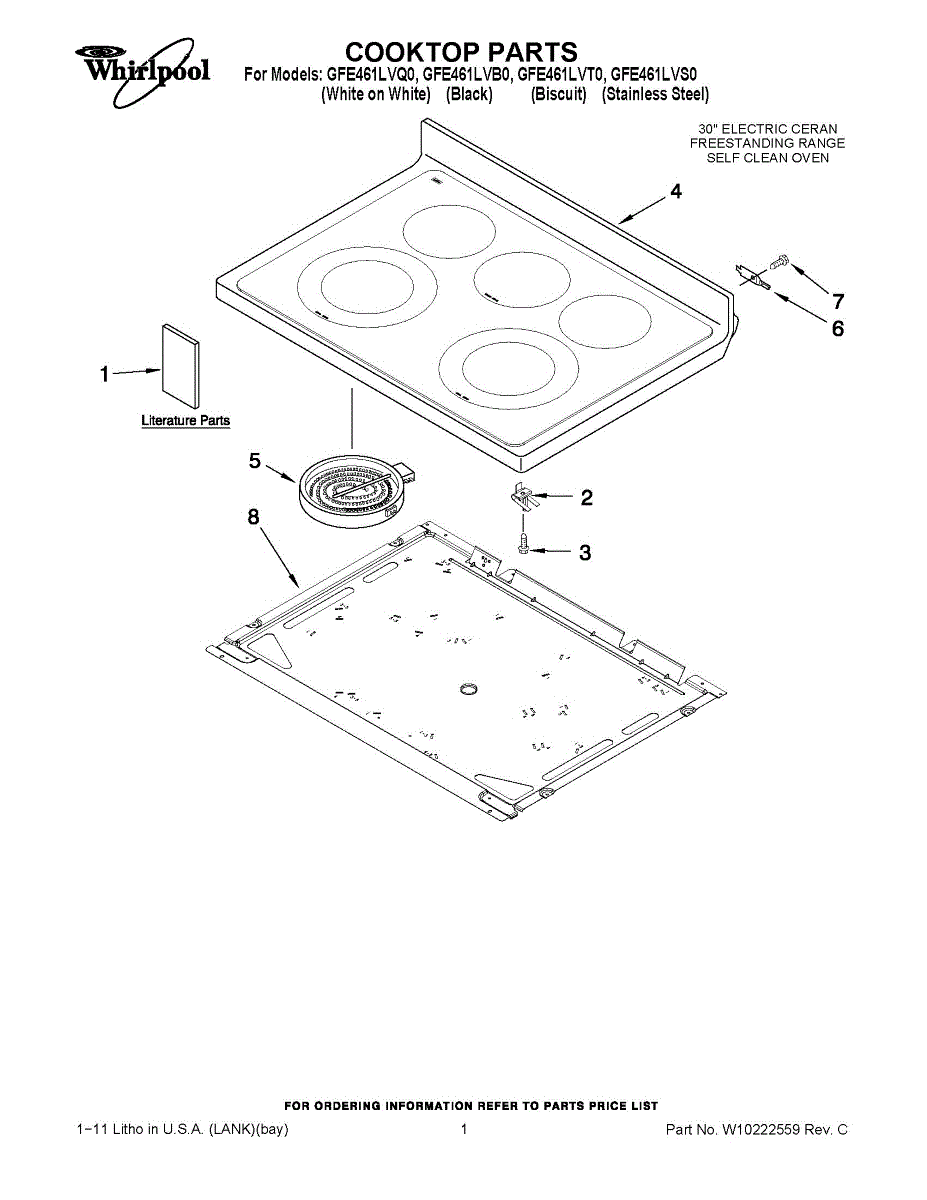

Parts for Whirlpool GFE461LVB0: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This 6-32 machine screw is a direct-fit fastener used to secure appliance panels and components. It provides a reliable replacement for stripped or missing screws to restore proper fit and reduce vibration or looseness. What it does:

• Secures panels, brackets, and internal components to keep parts aligned and stable
• Restores proper fastening when original screws are missing, stripped, or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Compatible with metal-to-threaded-hole connections that use 6-32 hardware

• Use the correct driver and avoid over-tightening to prevent stripped threads or damaged components
• Disconnect power and follow appliance safety guidelines before servicing
• If threads are damaged, replace both screw and any damaged insert or nut as needed

Color: Biscuit

Color: White

The Cooktop is an OEM component specifically designed for Whirlpool ranges.

Causes of a bad cooktop can include cracks or breaks in the glass surface, non-functional or faulty heating elements that will not reach proper cooking temperatures or damage to electronic controls.

Symptoms of a bad cooktop include:

• Uneven or slow heating of elements
• Elements that will not turn on or only function at certain power levels
• Fractures, chips or breaks in the glass cooking surface
• Improper sensing of cookware leading to inaccurate heating

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore models.

This surface heating element replaces a failed warm zone on an electric cooktop or range, restoring the low-temperature heating area used for keeping food warm. Designed to match OEM fit and function for compatible units. What it does:

• Provides the low-temperature "warm zone" heating needed to keep plates and dishes warm
• Heats at lower temperatures than main burners for gentle warming
• Commonly used when the warm area does not heat or maintain temperature
• Helps correct symptoms like a cold or intermittently heating warm zone, or uneven warming

• Disconnect power to the appliance before starting any repair
• Allow the cooktop to be completely cool and handle glass or ceramic surfaces carefully
• Follow your appliance's service manual for safe removal and installation; use basic hand tools
• Do not install if the cooktop glass is cracked or damaged—replace the glass top first

This is a dual radiant surface element for a smoothtop range. It restores reliable heating on one burner position with adjustable small/large cooking zones for better control and even heat on compatible glass cooktops.

• Heats cookware using two selectable zones (small or full) to match pan size
• Replaces a worn or non-heating burner element on the cooktop
• Common symptoms: element won't heat, only one ring heats, uneven heating, or cycling off too soon
• Helps resolve tripped-limiter behavior caused by a failing element assembly

What's included: One dual radiant surface element assembly Install notes:

• Disconnect power before servicing; surface elements are high-voltage components
• Lift or remove the cooktop to access the element
• Transfer any mounting brackets and reconnect wires to the same terminals
• Avoid touching the radiant surface; handle by the frame to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
