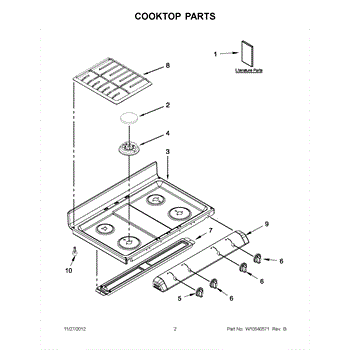

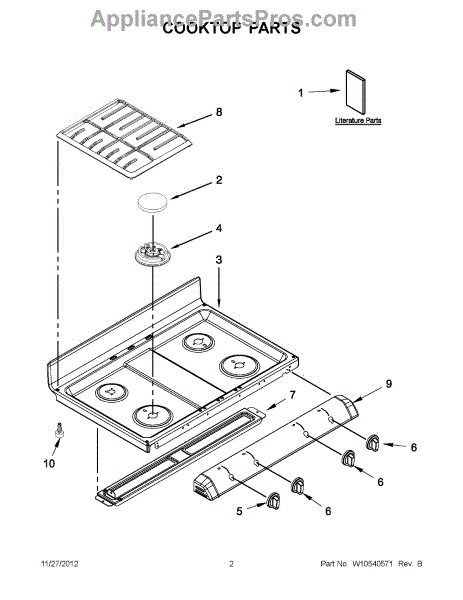

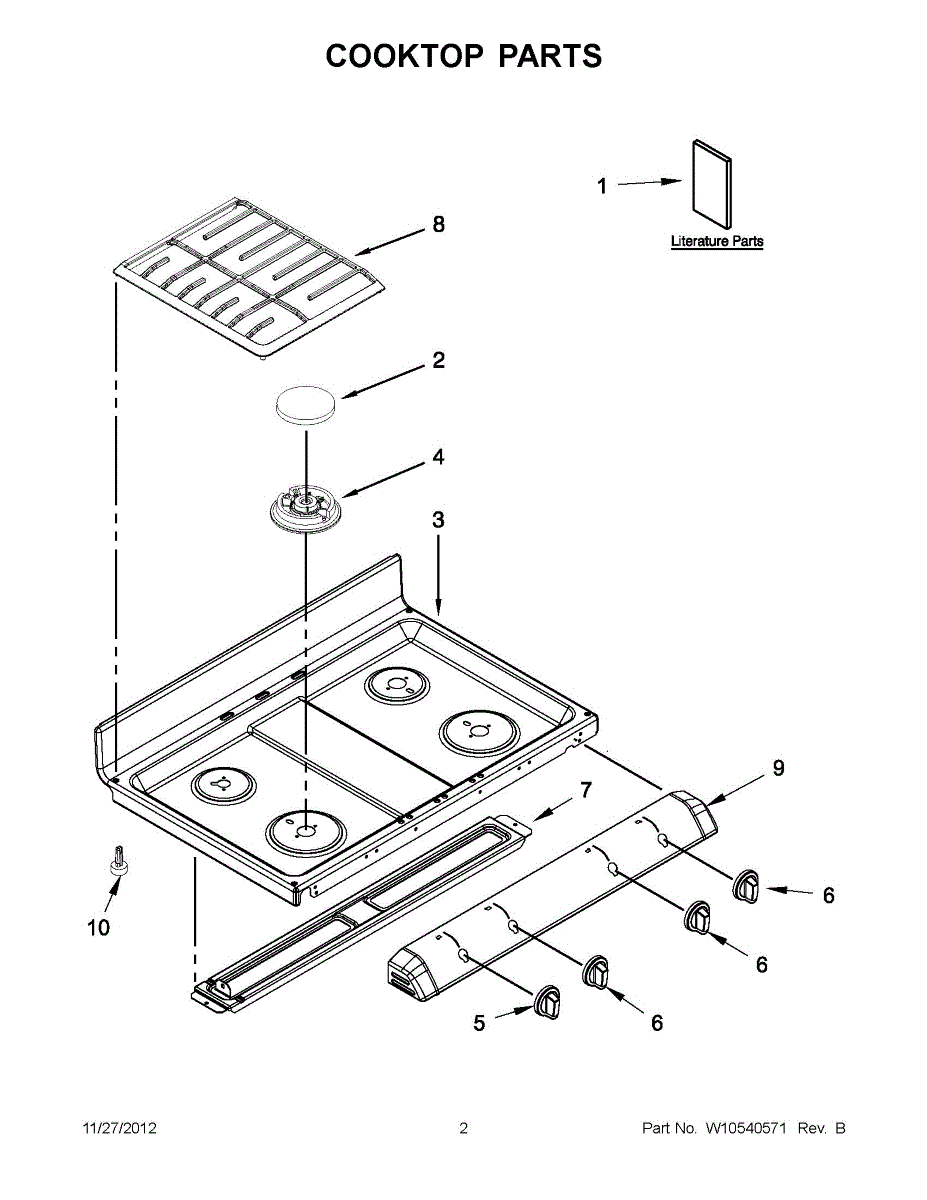

Parts for Whirlpool GGG388LXQ04: 01 - Cooktop Parts

This burner cap is a replacement top piece for a 4-inch sealed cooktop burner. It helps distribute flame evenly and protects the burner base from spills and debris for more consistent cooking and easier cleanup. What it does:

• Covers and protects the burner head from food spills, grease and cookware contact
• Helps shape and stabilize the burner flame for even heat across cookware
• Restores proper burner aesthetics when a cap is cracked, chipped or missing
• Compatible with sealed gas cooktop burners using a 4-inch cap design

• One burner cap (4-inch)

• Turn off gas supply and ensure burners are cool before replacing the cap
• Remove old cap and set new cap onto the burner head, making sure it seats flat and centered
• No tools typically required; if cap won't seat, inspect burner head for debris or damage
• If you smell gas or burner does not light properly after installation, stop.

Replacement burner cap for the 4-inch sealed gas burner on your cooktop. Restores proper flame shape and helps keep the burner head clear of spills and debris for reliable ignition and even cooking. What it does:

• Covers the burner head to promote an even, focused flame for consistent heat distribution.
• Helps prevent food and liquid from entering the burner assembly and interfering with ignition.
• Can resolve common symptoms like uneven or yellowing flame, lifted flame, or a burner that doesn't heat evenly when the cap is damaged or missing.
• Fits onto the burner post and works with the existing burner head and igniter to maintain normal operation.

• Allow the cooktop to cool completely and turn off the gas supply or power to the appliance before servicing.
• No tools are normally required; remove the old cap and seat the replacement cap flat on the burner head.
• Make sure the cap is properly centered—misalignment can cause ignition issues or uneven flame.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: brushed chrome. It measures about 2 inches in diameter.

The Whirlpool Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows control over the heat settings of burners.

Over time, the knobs on your appliance may become worn or damaged due to frequent use, exposure to heat, or accidental impacts. This wear and tear can lead to difficulty in adjusting settings accurately or even prevent the knob from engaging with the control shaft entirely.

Symptoms of a bad Whirlpool Knob include:

• Difficulty in turning the knob or adjusting settings
• The knob slipping or not gripping the shaft properly
• Visible cracks, melting, or other physical damage to the knob
• The knob not aligning correctly with the designated settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cooktop grate kit replaces worn or damaged grates to restore a stable cooking surface and even pot support on compatible gas ranges. Durable replacement grates help maintain safe, consistent cooking performance. What it does:

• Replaces cracked, warped, or missing cooktop grates to restore stable cookware support
• Provides a continuous cooking surface for even heating across burners
• Helps prevent pots and pans from rocking or sliding during use
• Restores appearance to the cooktop area and simplifies cleanup of burner spills

• Replacement grate kit

• Turn off the range and let all surfaces cool completely before handling grates
• Lift grates straight up to remove; set replacement grates into position so they sit level on the cooktop
• Check burner caps and alignment after installing grates to ensure proper burner operation
• Clean grates with non-abrasive pads and mild detergent; avoid harsh chemicals that may damage finishes

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel
