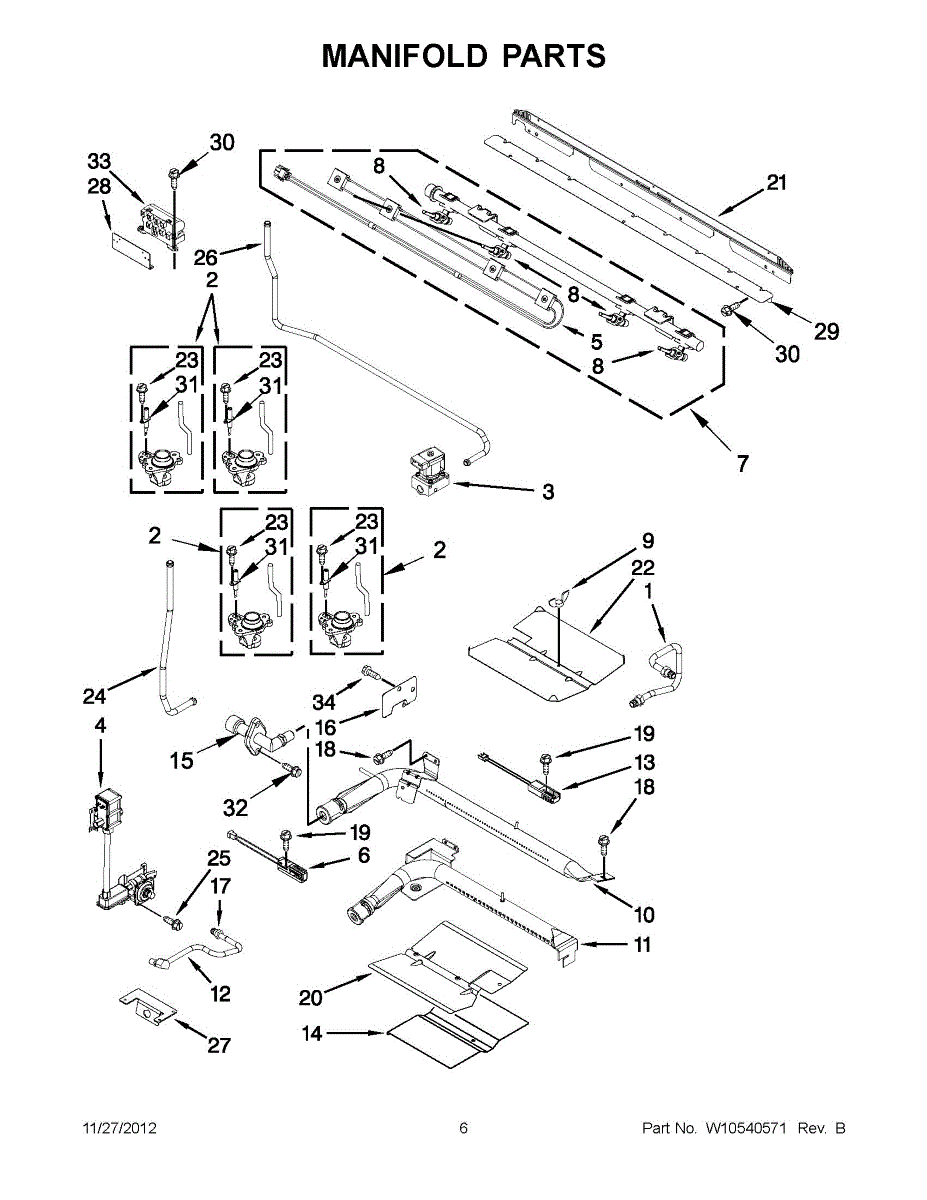

Parts for Whirlpool GGG388LXQ04: 03 - Manifold Parts

This gas tubing is the direct-fit replacement part that routes natural or liquid propane gas between range components, restoring safe fuel flow for proper burner operation. It replaces worn or damaged tubing without modifying factory connections. What it does:

• Carries gas from the valve to burners or manifold to enable ignition and normal burner flames
• Commonly replaced when tubing is corroded, cracked, kinked or leaking
• Can stop symptoms such as persistent gas smell, burner failure to light, or intermittent flame
• Matches OEM fit and connection locations for a straightforward swap

• One gas tubing

• Shut off the gas supply and disconnect power before starting any work
• Only install on compatible appliances; use approved fittings and follow torque specs from the appliance manufacturer
• Check all connections for leaks after installation using a soapy-water solution or approved gas leak detector

This Holder-ORF (15K) is a replacement mounting clip that secures a small oven or range component so it stays in position and operates reliably. It restores proper fit where a cracked or missing holder causes loose parts or rattling. What it does

• Secures and supports the related ORF component in the appliance assembly
• Prevents shifting, rattling, or misalignment of the mounted part
• Restores stable operation after breakage, cracking, or wear
• Matches OEM fit to help maintain original assembly alignment

• One replacement Holder-ORF (15K)

• Disconnect power to the appliance before starting any repair
• Access may require removing outer panels or trim; keep track of fasteners
• Replace the holder without forcing parts; verify correct orientation before tightening

This orifice holder secures the gas orifice to the valve assembly so the burner receives a steady, directed gas flow for reliable ignition and stable flames. It's a small replacement part that restores correct fuel delivery at the burner. What it does:

• Holds the burner orifice in place and aligns it with the gas valve
• Directs gas flow from the valve into the burner tube for proper combustion
• Common symptom: burner won't light or lights weakly
• Common symptom: uneven or unstable flame at a burner

• Turn off the gas supply and unplug the appliance before servicing
• Use basic hand tools; note orientation so the orifice seats correctly
• After installation, check for proper ignition and inspect for gas leaks

This orifice holder secures the gas orifice for a 9K burner, keeping the burner jet aligned for a steady, reliable flame. It replaces a worn or damaged holder to restore normal burner performance. What it does:

• Holds the 9K gas orifice in place so gas flows through the correct jet
• Supports consistent flame size for even cooking/heating
• Can help address weak or uneven flames or burners that fail to light reliably
• Prevents orifice movement that can cause misdirected gas flow

• Turn off the gas supply and unplug the appliance before starting work
• Use appropriate tools; handle orifice and holder carefully to avoid damage
• After installation, check fittings for tightness and test burner lighting per OEM instructions

This gas valve regulator controls and stabilizes incoming gas pressure to the range's burners, helping ensure consistent flame performance and safe operation.

• Regulates gas pressure supplied to the appliance for proper burner performance
• May help resolve weak, irregular, or no flame at the burners or oven
• Can address issues like delayed ignition, uneven heating, or burner outage
• Safety-critical component in the gas supply path

• Disconnect gas and electrical supply before servicing
• Verify gas type and inlet orientation match your appliance configuration
• Check for leaks with an approved leak-detection method after installation
• Recalibrate or adjust only per the manufacturer's instructions

This switch valve harness routes power between the control/switch and valve to allow reliable operation. Replacing a damaged harness restores proper electrical connections and helps the valve or switch respond correctly. What it does

• Provides the factory-style wiring connection between the control/switch and valve
• Ensures consistent power delivery to enable valve or switch actuation
• Commonly replaced when connectors are burned, pins are bent, or wiring is frayed
• Helps stop intermittent operation, no-response, or failure to actuate caused by wiring faults

• Disconnect power to the appliance (unplug or shut off breaker) before servicing
• Turn off water supply if working near valves or water lines
• Match connector shapes and pin orientation; do not force connectors together
• Inspect mating connectors and clean corrosion before reconnecting; test operation after reassembly

The Oven Igniter is an OEM part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas burner.

Causes can be standard wear and tear on the delicate metallic coil. Additionally, food or liquid spills may lead to premature breakdown or surface corrosion.

Symptoms of a faulty igniter include:

• Oven or burners failing to turn on or stay lit
• Requires repeated attempts at ignition before activating
• No spark or glow seen through the observation window

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This manifold assembly routes and controls water flow to your appliance's dispenser and ice/water outlets, restoring reliable delivery and preventing unwanted leaks. Designed as a direct-fit replacement for the factory manifold. What it does:

• Directs water to multiple outlets using four individual valves for precise flow control
• Replaces a failed or leaking manifold to stop dripping or standing water
• Restores water delivery when dispenser or ice/water functions do not dispense
• Ensures proper routing of inlet water to downstream components

• One manifold assembly (4-valve)

• Disconnect power and shut off the water supply before beginning repair
• Drain residual water from lines to reduce spillage when removing the old manifold
• Inspect and replace any worn tubing or clamps while access is available

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This oven broil burner supplies high, direct heat for broiling and browning food in the oven, restoring broil performance and even surface cooking. It replaces a worn or damaged broiler element to help regain consistent broil results. What it does

• Produces the intense, direct heat required for broiling and browning
• Works with the oven's ignition system to light and maintain the broil flame
• Helps restore even browning and searing on top of foods
• Commonly used when broil flame is weak, uneven, or won't stay lit

• Disconnect power and shut off gas supply before starting work
• Follow OEM diagram for correct orientation and secure mounting
• Inspect and replace any damaged gaskets or fasteners for a proper seal
• After installation, test broil function and check for proper ignition and flame

Oven burner (bake burner) provides the main bake flame for a gas oven, restoring even heat for baking and roasting. It replaces a worn or damaged burner to help the oven reach and hold correct baking temperatures reliably. What it does:

• Supplies the primary bake flame to heat the oven cavity for baking and roasting.
• Ignites to produce a steady flame so the oven can reach and maintain set temperatures.
• Use when the oven fails to heat, heats unevenly, has a weak flame, or when the burner shows corrosion or physical damage.
• Fits as a direct replacement bake burner for compatible gas ovens.

• Turn off the gas supply and disconnect electrical power before servicing.
• Follow OEM instructions and use proper tools; ensure burner seats correctly and fasteners are secure.
• After installation, check all gas connections for leaks and follow manufacturer procedures to relight or test the oven.

This gas tubing supplies gas from the oven manifold to the burner assembly, restoring a safe, direct fuel path for proper ignition and heating. Use when tubing is cracked, corroded, kinked, or leaking. What it does:

• Carries gas from the appliance's manifold or valve to the burner(s)
• Maintains a sealed, flexible connection to allow component movement
• Replaces damaged, corroded, or pinched tubing that can cause leaks or poor ignition
• Helps restore consistent burner performance and proper heating when tubing is compromised

• Turn off gas supply and electrical power before starting any service
• Verify correct orientation and secure fittings to avoid leaks; use OEM-specified fittings and torque
• Leak-test all connections with a soap solution or approved leak detector before returning appliance to service

This gas tubing is a direct-fit replacement line that routes gas between components and restores a secure fuel path for safe burner operation. It helps stop leaks and ensure consistent gas flow to the appliance. What it does

• Replaces damaged, cracked, or corroded gas tubing that can cause leaks or loss of gas flow
• Restores a sealed connection between the gas valve and burner or between gas components
• Can resolve symptoms such as gas odor, intermittent ignition, or weak burner flame when tubing is the cause
• Designed to match OEM form and fit for straightforward replacement when listed for your model

• One gas tubing assembly as shown

• Shut off the gas supply and unplug the appliance before starting any work
• After installation, test all fittings with a leak detection solution; do not use an open flame
• Follow all local codes and OEM instructions for fittings, sealants, and torque values

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement fitting connects the appliance's water line to its internal plumbing so water flows where it's needed and stays sealed. It restores a proper watertight connection to help stop leaks and ensure reliable water delivery. What it does:

• Connects the external water supply line to the appliance's internal water inlet
• Creates a secure, watertight seal to prevent drips and leaks at the connection point
• Supports consistent water flow for ice makers, dispensers, or valves where used
• Can resolve symptoms like visible leaks, reduced water flow, or intermittent filling

• One replacement fitting

• Turn off the water supply and unplug the appliance before installing
• Inspect mating surfaces and replace any damaged O-rings or gaskets as needed
• Hand-tighten first, then snug with appropriate tools; avoid over-tightening
• If plumbing sealant is recommended by your installer, use plumber's tape on threaded connections only

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

Size: 10-24X5/16-NI

This burner baffle directs heat and flame away from sensitive components to help maintain even cooking and protect the range's internal parts. It's a direct-replacement trim piece used on compatible gas ranges and cooktops. What it does:

• Shields and redirects burner flame to reduce hot spots and protect nearby components
• Helps maintain more consistent surface temperatures during use
• Prevents flame impingement on adjacent parts that can cause discoloration or premature wear
• Supports proper burner operation by holding components in correct alignment

• One burner baffle

• Disconnect power and shut off the gas supply before starting work; allow all components to cool
• Basic hand tools are typically required; handle the baffle carefully to avoid bending or scratching
• Verify correct fit and orientation from the parts diagram before final reassembly

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner spark electrode creates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode helps restore quick, reliable ignition and can reduce excessive clicking at the affected burner. What it does:

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure fast, consistent ignition for the specific burner
• Common symptoms can include no spark/no light at one burner, weak or intermittent sparking, or continuous clicking from a damaged/contaminated insulator
• For the surface burner ignition circuit

• 1 spark electrode

• Disconnect power and shut off gas before servicing; allow the cooktop to cool completely
• Remove burner cap and head to access the electrode; note wire routing and connection
• Transfer/reuse any mounting hardware; avoid stressing or cracking the ceramic insulator
• Align the tip to the burner per service information and ensure all connections are secure before restoring power and gas

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Orifice spud secures the burner orifice to the gas valve/manifold and directs fuel to the burner for proper flame performance. Replaces a damaged or corroded spud to help restore correct gas flow at the burner. What it does:

• Holds the burner orifice in place and channels gas from the valve to the burner.
• Helps maintain consistent flame size for even heating and cooking.
• Commonly used when a burner has weak, uneven, or intermittent flame performance.
• Replace if the spud is cracked, corroded, damaged, or leaking.

• Turn off the appliance's gas supply and disconnect power before beginning any repairs.
• Remove burner components per the service manual and install the spud in the same orientation as the original.
• Hand-start threads, then snug with the appropriate wrench—do not overtighten.
• After installation, check fittings for leaks with an approved leak-detection method; if you smell gas or suspect a leak, stop.
