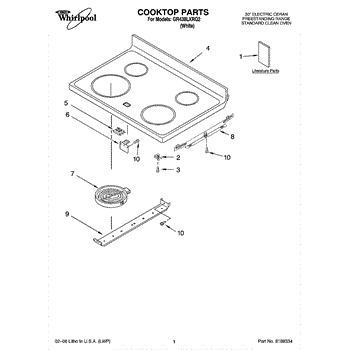

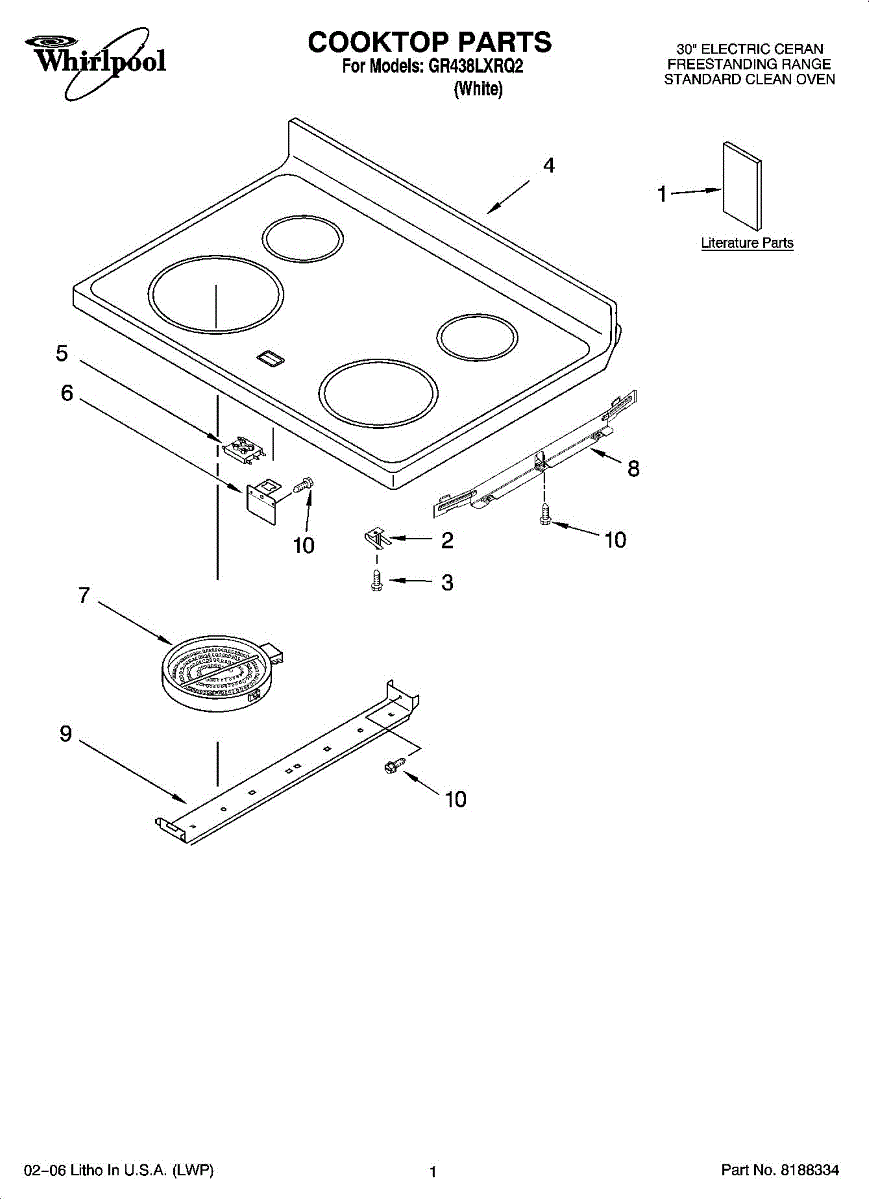

Parts for Whirlpool GR438LXRQ2: 01 - Cooktop Parts

Element locator spring attaches cooktop burner brackets to the surface. Replaces broken, missing, or worn springs that secure element mounting hardware.

Secure panels and components with this 6-32 machine screw. Replaces stripped, missing, or damaged fastening screws to restore proper fit and stability.

Hot surface

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Burner not heating? This radiant surface element restores heat to your glass cooktop. DIY-friendly repair, typically done in 15 minutes with our video.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
