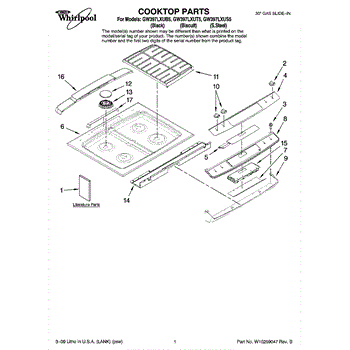

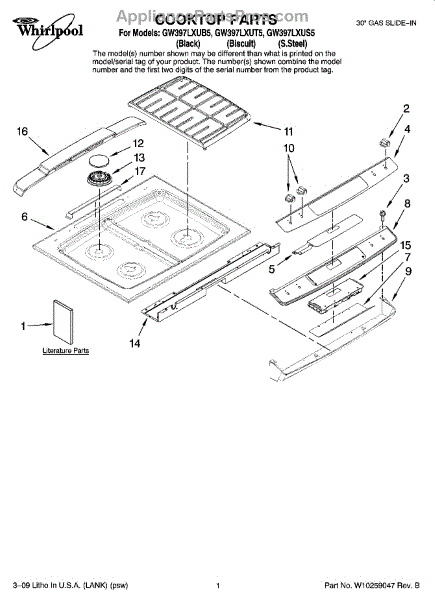

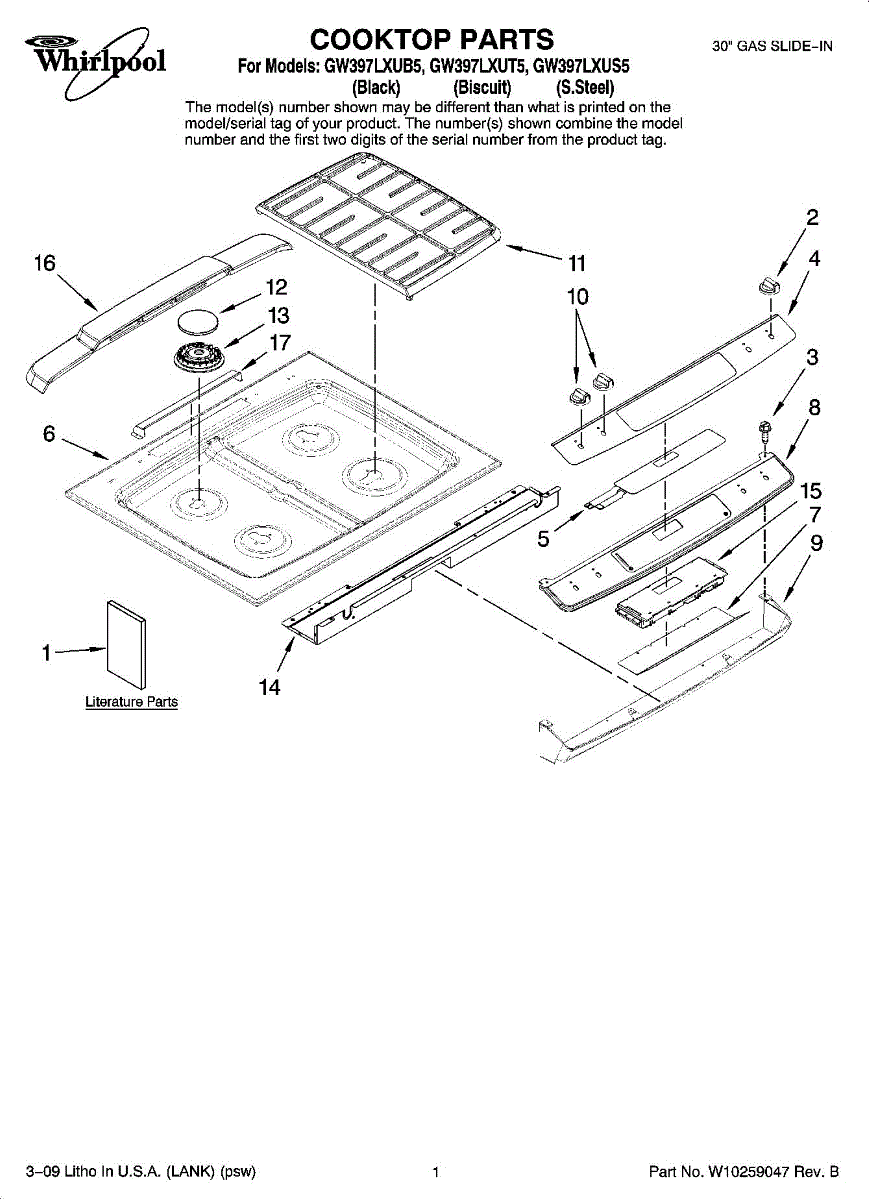

Parts for Whirlpool GW397LXUS5: 01 - Cooktop Parts

This control knob lets you set a burner's heat level on many gas cooktops/ranges. A worn or broken knob can make temperature adjustments difficult or impossible—replacing it restores smooth, accurate control.

• Turns the surface burner valve stem to adjust flame/heat
• Common failure signs: cracks, stripped insert, knob won't grip shaft, missing or hard-to-turn knob
• Cosmetic wear or discoloration on the old knob
• Restores clear pointer alignment and tactile feedback

• Disconnect power and allow burners to cool before replacing
• Pull the old knob straight off the valve stem; align the new knob's insert with the flat on the stem
• Press on firmly until fully seated—do not force or twist on misaligned

This membrane switch touch pad replaces a worn or unresponsive control panel overlay, restoring tactile button response and reliable user input for your appliance. Designed to fit the original control assembly and match the OEM button layout. What it does:

• Provides the external button interface for cycle selection, start/stop, and other user commands
• Restores responsive touch actuation when buttons are sticky or unresponsive
• Helps prevent false inputs caused by worn or damaged keypad surfaces
• Works with the existing control board and housing to transmit user commands

• One membrane switch touch pad

• Disconnect power before servicing to avoid shock or damage
• Handle the membrane gently; avoid folding or creasing the conductive traces
• Align carefully with the control housing and connectors; replace any adhesive or foam pads as needed
• If the control still fails after replacing the pad, the issue may be with the underlying control board or connector

The Oven Membrane Switch is an OEM part for Whirlpool ovens. It serves as the interface for selecting and controlling various cooking functions. The membrane switch panel responds to touch inputs, allowing users to set temperatures, timers, and other oven settings efficiently.

Over time, the membrane switch can become faulty due to regular wear and tear, exposure to heat and moisture, or accidental damage. These factors can lead to malfunctions in the touchpad or its responsiveness.

Symptoms of a bad membrane switch include:

• Unresponsive or intermittent touch controls
• Error codes displayed on the oven
• Inability to set or adjust cooking functions
• Some buttons not working at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This control knob replaces a worn or missing knob on your range or cooktop, allowing you to select heat and function settings smoothly again. Restore precise control and a clean, finished look with a direct-fit replacement.

• Attaches to the control shaft of a valve or switch to select burner/heat settings
• Restores smooth, positive engagement if the old knob is cracked, stripped, or loose
• Helps resolve issues like slipping, wobbling, or difficulty turning settings
• Ideal when the original knob is missing or its markings are no longer readable

• Disconnect power at the breaker and shut off gas before servicing
• Pull the old knob straight off; avoid prying against the control panel
• Align the new knob with the stem orientation (set stem to Off if keyed) and press on firmly
• Verify smooth operation through all settings after installation

Color: Grey

Color: Wetstone

Color: Black

The Burner Cap is an OEM replacement part for Whirlpool gas ranges. This small part sits atop the gas burner on the left and right front to help direct flames from the jet and provide an even spread for efficient heating. Color: Black

Causes can be normal wear over time from cooking usage, as well as accidental objects left on burners that cause impact damages.

Symptoms of a damaged or worn burner cap include:

• uneven cooking temperatures
• flames that appear too high or inconsistent
• potential burner flashback or fire hazards if portions are cracked or missing.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Electronic Control Board is an OEM replacement part for Whirlpool ranges. As the "brain" of the range, this intricate circuit board monitors and regulates all cooking functions such as oven temperatures, convection settings, timed baking modes, and warming functions.

Causes of a bad electronic control board can include heat damage over time, failures in electronic components, or intermittent connectivity issues in traces and connections on the board.

Symptoms of a bad electronic control board include:

• Failure to power on or select desired cooking modes
• Inability to adjust or maintain set oven temperatures
• Erratic or unpredictable oven operation
• Fault codes or error messages displayed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
