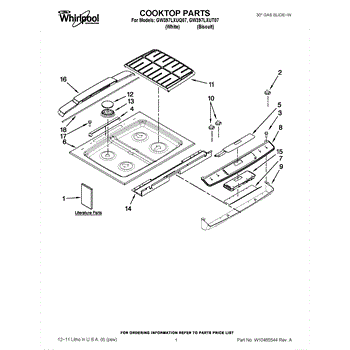

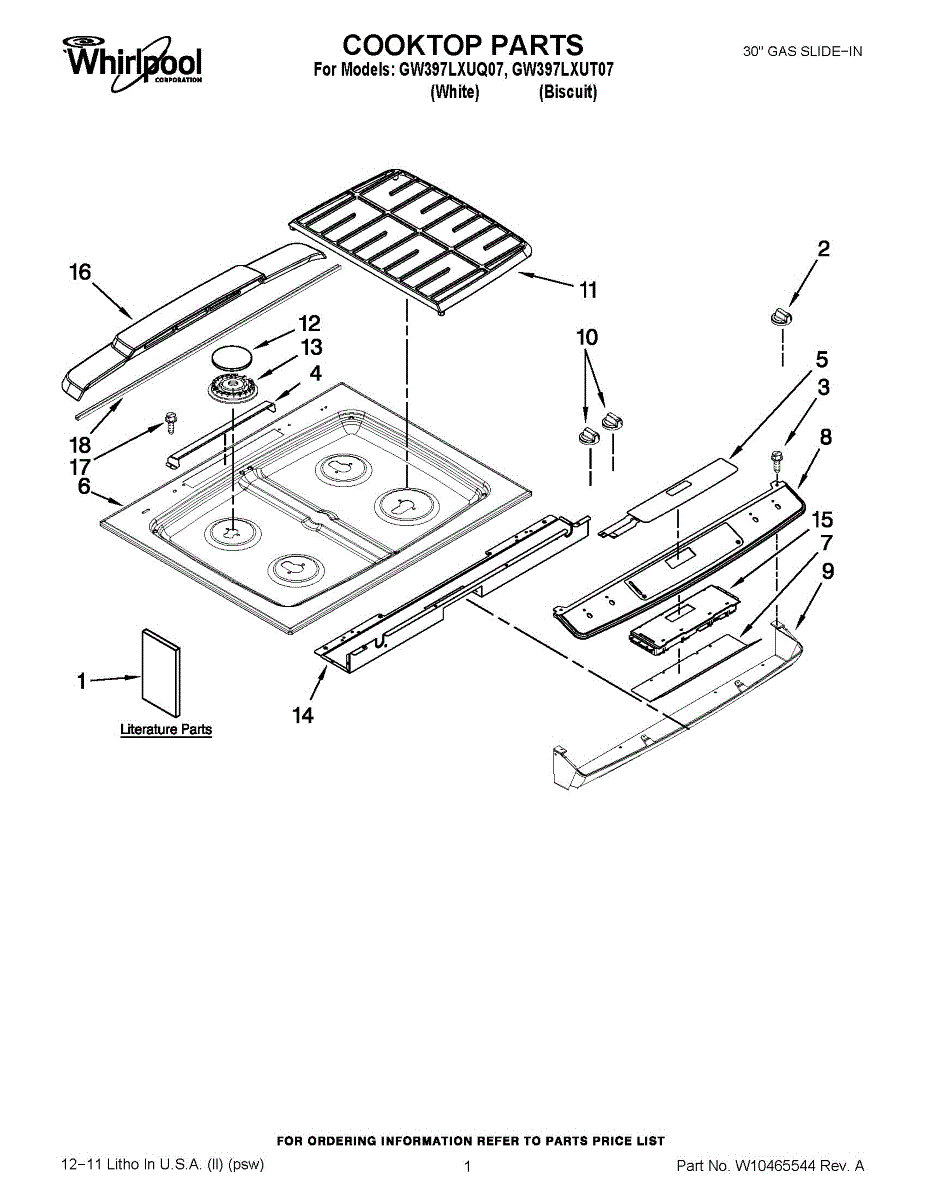

Parts for Whirlpool GW397LXUT07: 01 - Cooktop Parts

This replacement control knob restores a secure grip and precise selection for range or cooktop controls. It replaces a cracked, loose, or missing knob so you can safely set burner or oven temperatures with confidence. What it does

• Fits standard control shafts to turn burners or temperature selectors smoothly
• Restores tactile grip when the original knob is cracked, worn, or broken
• Helps prevent accidental changes caused by a loose or spinning knob
• Useful when a knob is missing and the control needs a proper interface

• Always turn controls off and disconnect power (or shut off gas for gas appliances) before servicing
• Pull the old knob straight off the control shaft; align and push the new knob onto the shaft until fully seated
• If the knob does not fit securely, check for matching shaft shape or debris on the shaft before forcing it

This membrane switch touch pad replaces a worn or unresponsive control panel overlay, restoring tactile button response and reliable user input for your appliance. Designed to fit the original control assembly and match the OEM button layout. What it does:

• Provides the external button interface for cycle selection, start/stop, and other user commands
• Restores responsive touch actuation when buttons are sticky or unresponsive
• Helps prevent false inputs caused by worn or damaged keypad surfaces
• Works with the existing control board and housing to transmit user commands

• One membrane switch touch pad

• Disconnect power before servicing to avoid shock or damage
• Handle the membrane gently; avoid folding or creasing the conductive traces
• Align carefully with the control housing and connectors; replace any adhesive or foam pads as needed
• If the control still fails after replacing the pad, the issue may be with the underlying control board or connector

The membrane switch is the low-profile keypad behind your microwave's control panel. It registers button presses so you can select settings and start cooking. Replace it if keys stop responding or require excessive pressure.

• Converts keypad presses into signals for the electronic control
• Enables selection of power levels, cook times, and options
• Common symptoms: some or all keys don't work, intermittent response, must press very hard
• If the unit won't start/stop from the keypad, the membrane switch may be faulty

• Disconnect power at the breaker before servicing
• Remove the control panel to access the keypad; note ribbon orientation and routing
• Handle the flexible ribbon carefully—don't crease it—and fully seat/lock the connector

This control knob replaces a worn or broken knob on your appliance's control panel. It restores a secure grip so you can turn the selector smoothly and set heat or cycle settings accurately.

• Attaches to the control shaft to operate the switch, thermostat, or timer
• Restores proper grip and pointer alignment for consistent control
• Common symptoms: cracked/split knob, stripped insert, wobbling or falling off, won't turn the control
• Replaces a missing knob for a complete, finished look

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull the old knob straight off—do not pry against the control panel
• Align the new knob with the shaft and press straight on until fully seated
• Do not force; if the control stem is damaged, address that issue before installation

This burner cap is a replacement top piece for a 4-inch sealed cooktop burner. It helps distribute flame evenly and protects the burner base from spills and debris for more consistent cooking and easier cleanup. What it does:

• Covers and protects the burner head from food spills, grease and cookware contact
• Helps shape and stabilize the burner flame for even heat across cookware
• Restores proper burner aesthetics when a cap is cracked, chipped or missing
• Compatible with sealed gas cooktop burners using a 4-inch cap design

• One burner cap (4-inch)

• Turn off gas supply and ensure burners are cool before replacing the cap
• Remove old cap and set new cap onto the burner head, making sure it seats flat and centered
• No tools typically required; if cap won't seat, inspect burner head for debris or damage
• If you smell gas or burner does not light properly after installation, stop.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

The Electronic Control Board is an OEM replacement part for Whirlpool ranges. As the "brain" of the range, this intricate circuit board monitors and regulates all cooking functions such as oven temperatures, convection settings, timed baking modes, and warming functions.

Causes of a bad electronic control board can include heat damage over time, failures in electronic components, or intermittent connectivity issues in traces and connections on the board.

Symptoms of a bad electronic control board include:

• Failure to power on or select desired cooking modes
• Inability to adjust or maintain set oven temperatures
• Erratic or unpredictable oven operation
• Fault codes or error messages displayed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
