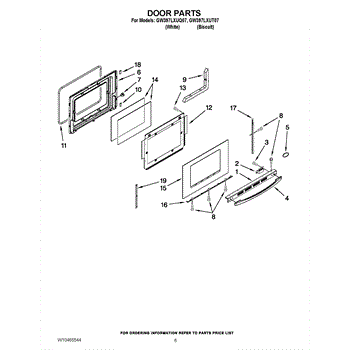

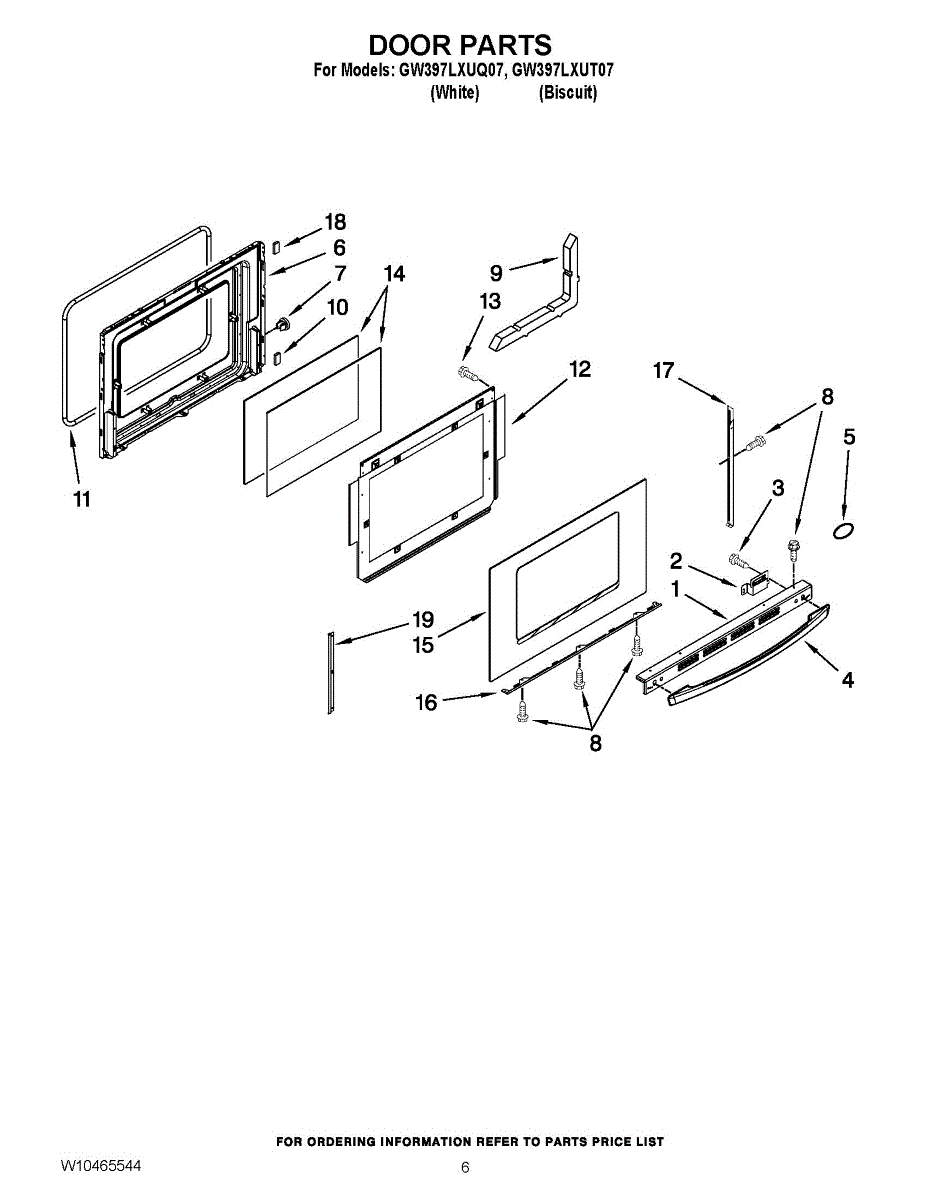

Parts for Whirlpool GW397LXUT07: 04 - Door Parts

This oven door trim is the outer decorative frame that restores the door's finished appearance and helps protect internal components from spills and grime. It's a direct-replacement exterior trim piece for compatible Whirlpool ovens. What it does:

• Replaces damaged, dented, or scratched outer door trim to restore the oven's appearance
• Helps shield the inner door assembly from food, grease, and splashes
• Maintains the proper fit and alignment of the oven door exterior
• Can improve sealing appearance around the door perimeter when installed correctly

• One outer oven door trim piece

• Remove power to the appliance and allow the oven to cool completely before servicing
• Installation typically requires removing the oven door or inner trim; follow factory service instructions
• Use care to avoid scratching the new trim and to retain all original fasteners unless replacements are specified

This mounting bracket secures internal appliance components to the cabinet or frame, restoring stable support and proper alignment for the attached assembly. It's a direct-fit replacement when the original bracket is bent, broken, or missing. What it does:

• Provides a solid attachment point to keep components aligned and secure
• Prevents vibration, rattling, or movement caused by a damaged or missing bracket
• Restores correct positioning for connected parts so they operate reliably
• Helps maintain sealing and clearance by holding panels or assemblies in place

• One mounting bracket as pictured

• Inspect surrounding fasteners and mounting points; replace any stripped screws or clips
• Use the same screw locations and hardware type as the original for proper fit
• Disconnect power and remove any nearby panels before accessing the bracket to avoid injury

Color: Black. Round

This is a genuine replacement BSQ screw used to secure appliance components and trim. It restores proper fastening so panels and parts sit tight and function without rattling or shifting. What it does:

• Fastens interior or exterior components and trim where a BSQ screw is specified
• Prevents loose or vibrating panels and assemblies
• Restores secure attachment if an original screw is missing, stripped, or damaged
• Matches OEM fit and head style for correct engagement with the mating part

• Disconnect power to the appliance before doing any repairs to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten snugly but do not overtighten—over-torquing can strip threads or damage surrounding parts
• If threads are damaged, replace the mating fastener or insert as needed for a secure repair

Color: White. For black order WP98008545. For biscuit order 98008169.

The Oven Door Gasket is an OEM part for Whirlpool ovens. This gasket is essential for maintaining a proper seal around the oven door, preventing heat from escaping and ensuring efficient cooking performance. The gasket measures approximately 76.66" in total length with a diameter of about 0.47", it features 25 built-in metal retaining clips.

Causes of a bad oven door gasket can include regular wear and tear, exposure to high temperatures over time, or accidental damage from cleaning or handling. A compromised gasket can lead to heat loss, which affects cooking times and energy efficiency.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times
• Visible cracks or tears in the gasket
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-32 x 1.375 in SEMS machine screw secures appliance panels and internal components using a captive washer for reliable holding. It's a direct-fit fastener commonly used where a built-in washer prevents loosening and loss. What it does

• Fastens and secures panels, brackets, and assemblies in appliances
• Captive washer provides consistent clamping and resists loosening
• Replaces missing or stripped screws that cause rattling or loose parts
• Fits 8-32 threaded holes where a 1.375 in length is required

• Disconnect power and unplug the appliance before servicing
• Use the correct size driver to avoid cam-out or head damage
• Tighten until snug—do not overtighten to prevent thread or part damage
• Replace only with the same thread size and length to ensure proper fit

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit

This glass support helps secure and level the appliance's glass component so it sits correctly and stays stable during use. Replace a worn or missing support to eliminate wobble and protect the glass from stress or damage.

• Supports and cushions a glass panel for proper height and alignment
• Helps prevent rattling, shifting, or uneven gaps
• Maintains stability during heating, cooling, and cleaning
• Typical symptoms: loose or misaligned glass, vibration, or a missing/damaged support

• Disconnect power and allow all surfaces to cool before servicing
• Handle glass carefully; wear cut-resistant gloves
• Match the original orientation/location for "No. 4" and reuse existing fasteners or clips
• Tighten hardware only until snug to avoid stressing the glass

White

White

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.
