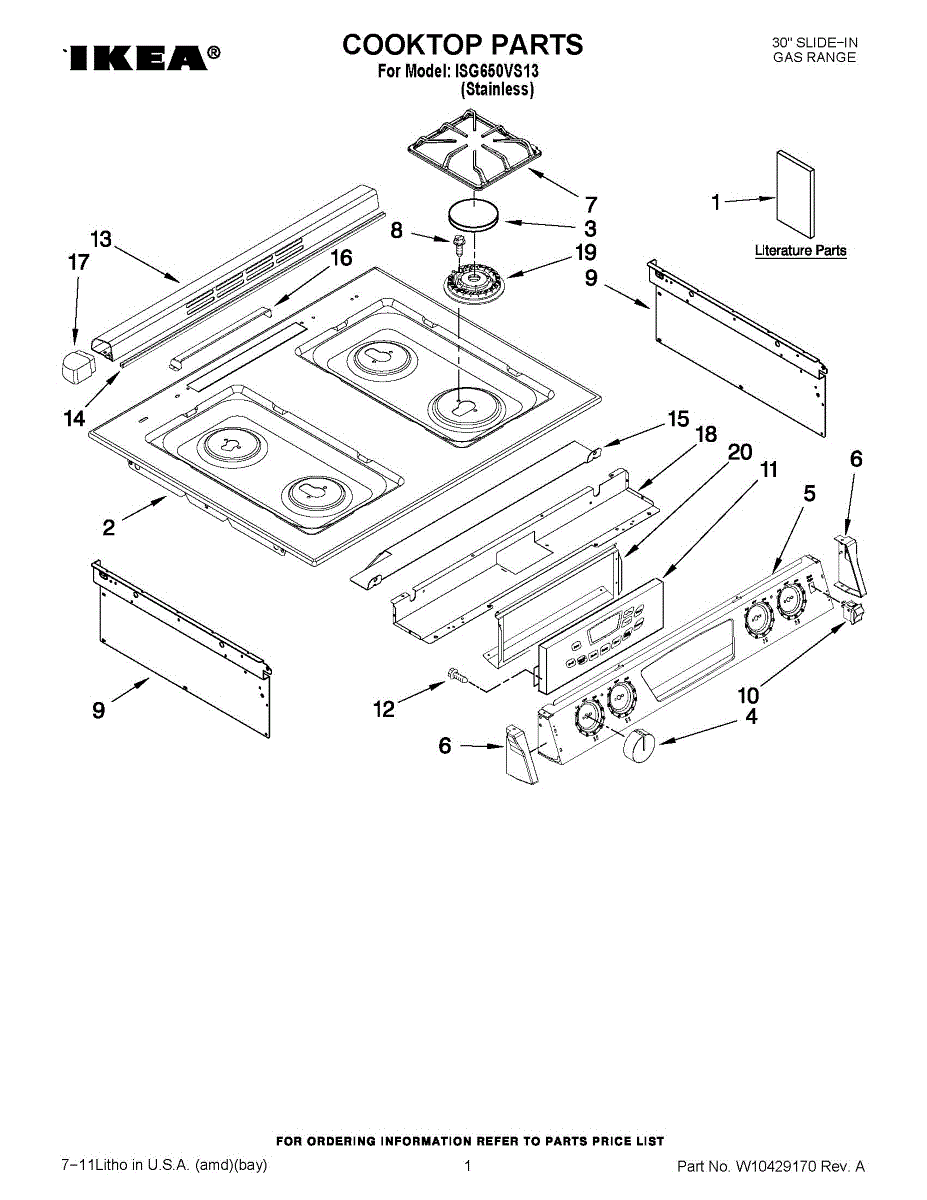

Parts for Whirlpool ISG650VS13: 01 - Cooktop Parts

Color: Black

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Replacement control knob that restores user control of oven and range settings when the original is cracked, loose, or missing. Sold individually and intended as a direct-fit replacement for compatible Whirlpool appliances. What it does:

• Replaces a damaged, worn, or missing appliance control knob so you can select temperature and function settings.
• Push-on design engages the control shaft for straightforward operation.
• Common symptoms addressed: knob is cracked, spins freely, won't turn, or is missing.
• Matches original knob location and appearance for an unobtrusive repair.

• Always turn controls to OFF and disconnect power (and gas if applicable) before servicing.
• Remove the old knob by pulling it straight off the shaft; push the new knob onto the shaft until fully seated.
• No special tools typically required; if the knob won't seat, inspect the control shaft for damage and replace the control if needed.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
