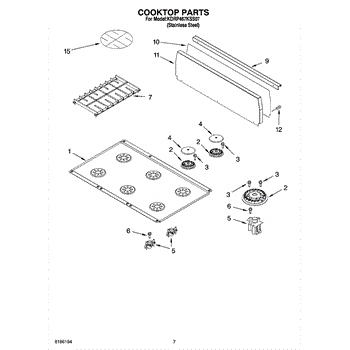

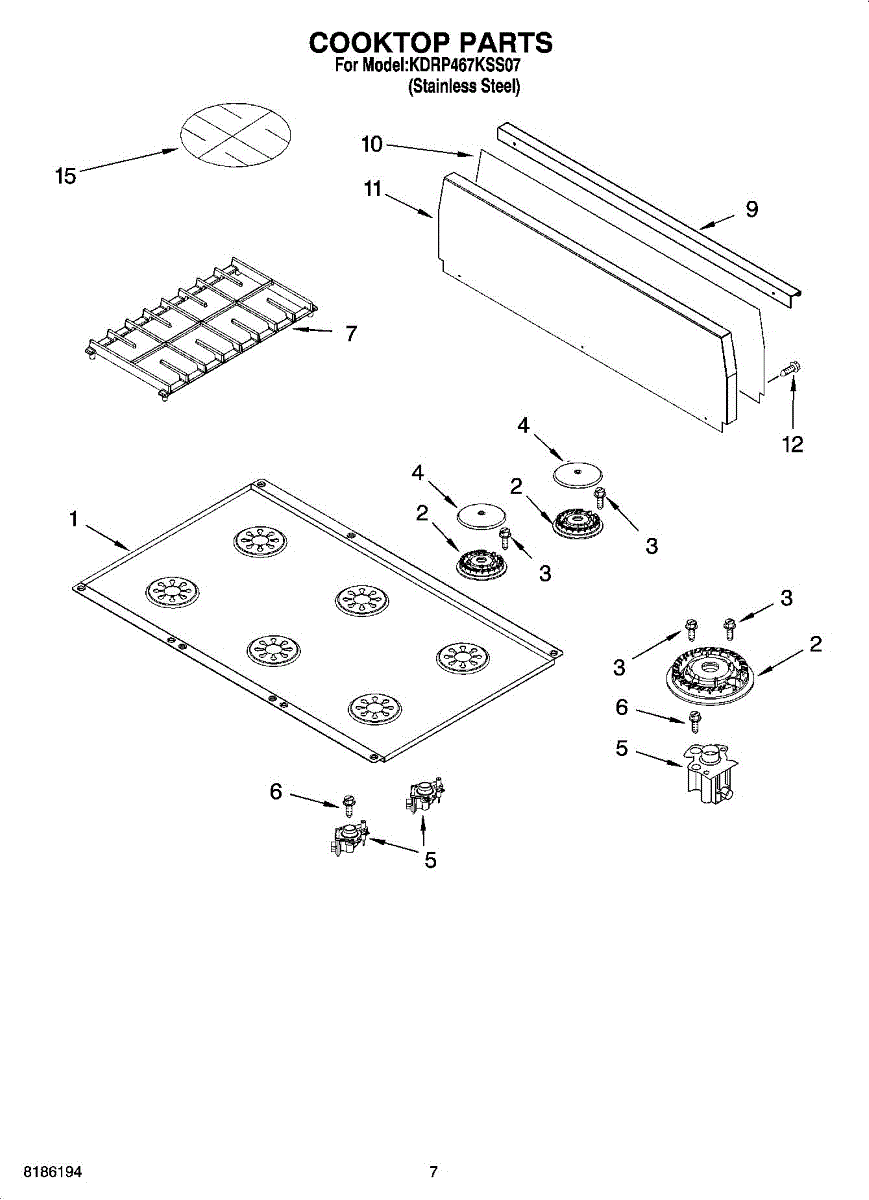

Parts for Kitchenaid KDRP467KSS07: 06 - Cooktop Parts

Location: Left front. 14,000 BTU.

Replacement burner head for gas cooktops. Distributes gas evenly through ports for consistent flame. Replace if cracked, damaged, or worn from spills.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.

Color: Coal matte black. 14,000 BTU.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

Includes ignitor and orifice. Size: Small. To order ignitor separately use WP9782116.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

The surface burner orifice holder is a brass or metal fitting that threads into the gas valve and holds the orifice, which is the small precisely sized opening that controls how much gas flows to a cooktop burner. Together with the orifice, it regulates flame size and ensures proper combustion. Replace this part if a burner produces an uneven, weak, or oversized flame, or if the holder is damaged, corroded, or leaking gas at the burner connection.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

Color: Black.

The backsplash trim is the decorative finishing piece that covers the gap between the range and the wall. Replace it when it becomes damaged, discolored, or no longer properly seals the area behind the range.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.
