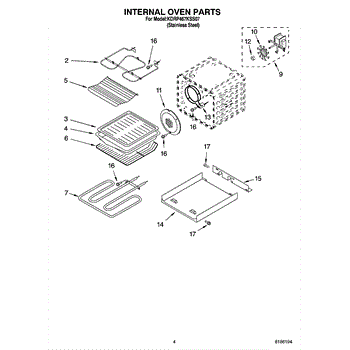

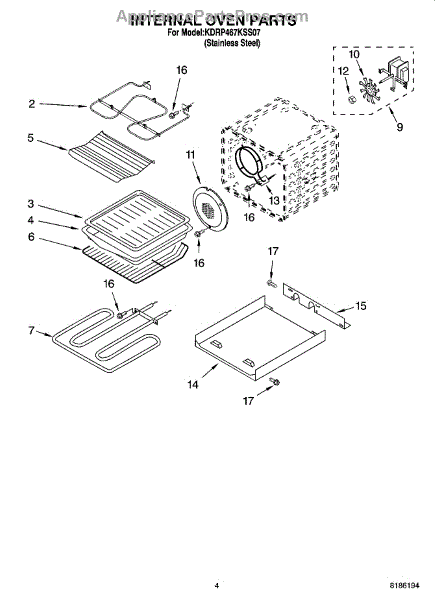

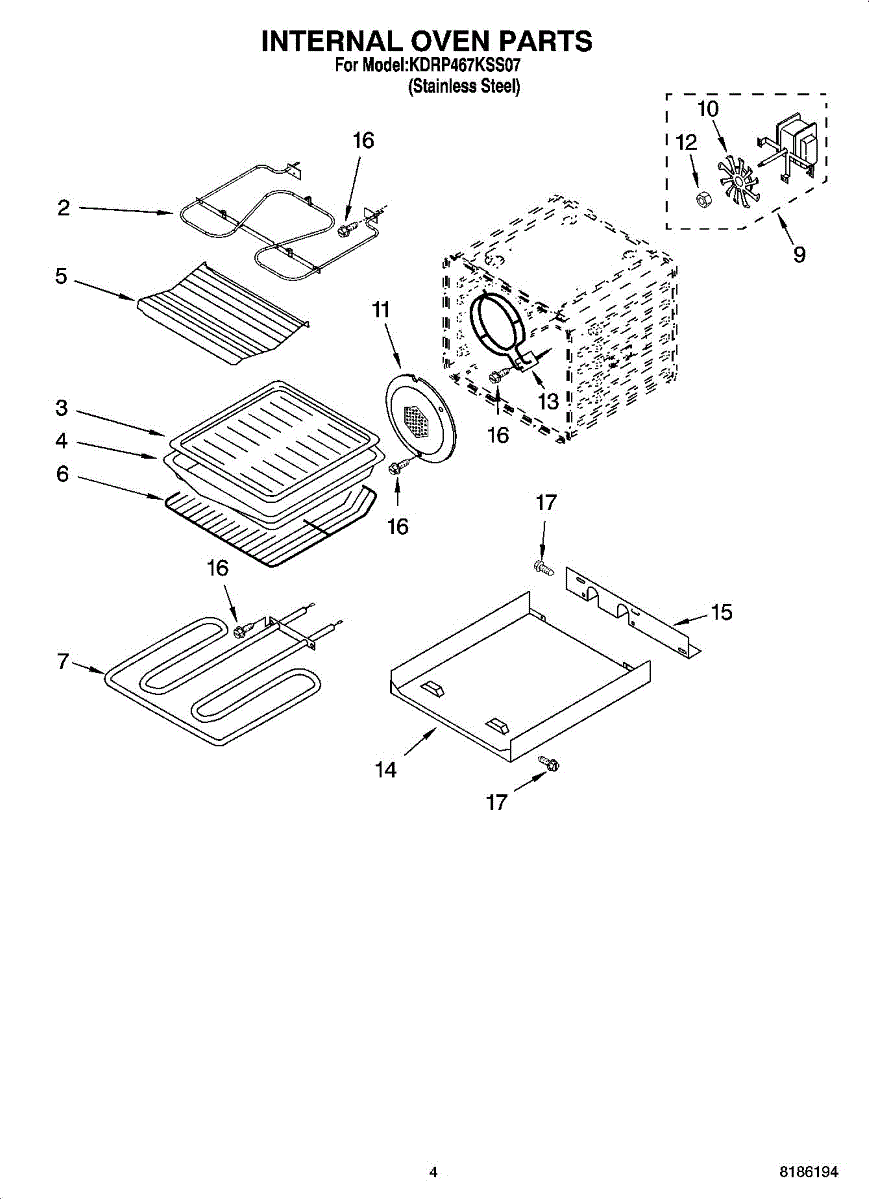

Parts for Kitchenaid KDRP467KSS07: 03 - Internal Oven Parts

Broil element provides the oven's upper heating for broiling and surface browning. Replacing a failed broil element restores broil performance so foods brown evenly and the oven properly completes broil cycles. What it does:

• Produces the high, direct heat used for broiling and top-surface browning.
• Restores heat in the oven's upper cavity when the broil setting is selected.
• Common fix when food doesn't brown, the element doesn't glow, or the broil cycle delivers little heat.
• Works with the oven's broil control and thermostat to achieve required broiling temperatures.

• Disconnect power to the appliance at the breaker before starting any repair.
• Remove oven racks and access the element mounting screws or rear terminal cover as required by your model.
• Handle the element carefully and avoid touching terminals; ensure connections are tight and insulated.
• Replace damaged mounting hardware or connectors before re-energizing the oven.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

This heating element is located at the bottom of your oven and provides the heat for baking. It glows red when activated and maintains consistent temperature throughout the cooking cycle. Replace this element if your oven won't heat up, bakes unevenly, or if you see visible damage like cracks or breaks in the coil.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

Oven not heating evenly or convection mode not working? This rear convection element restores even baking and roasting. 20-minute DIY repair.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.
