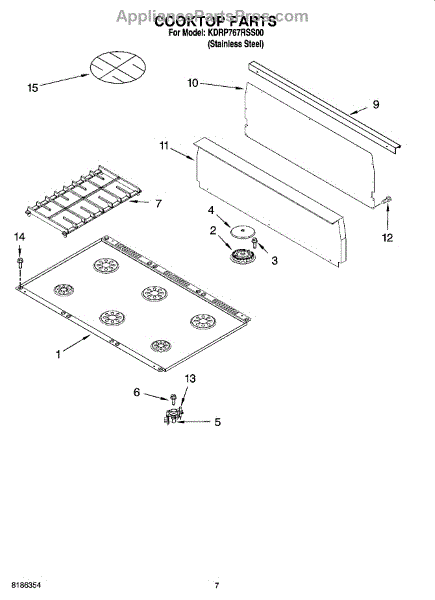

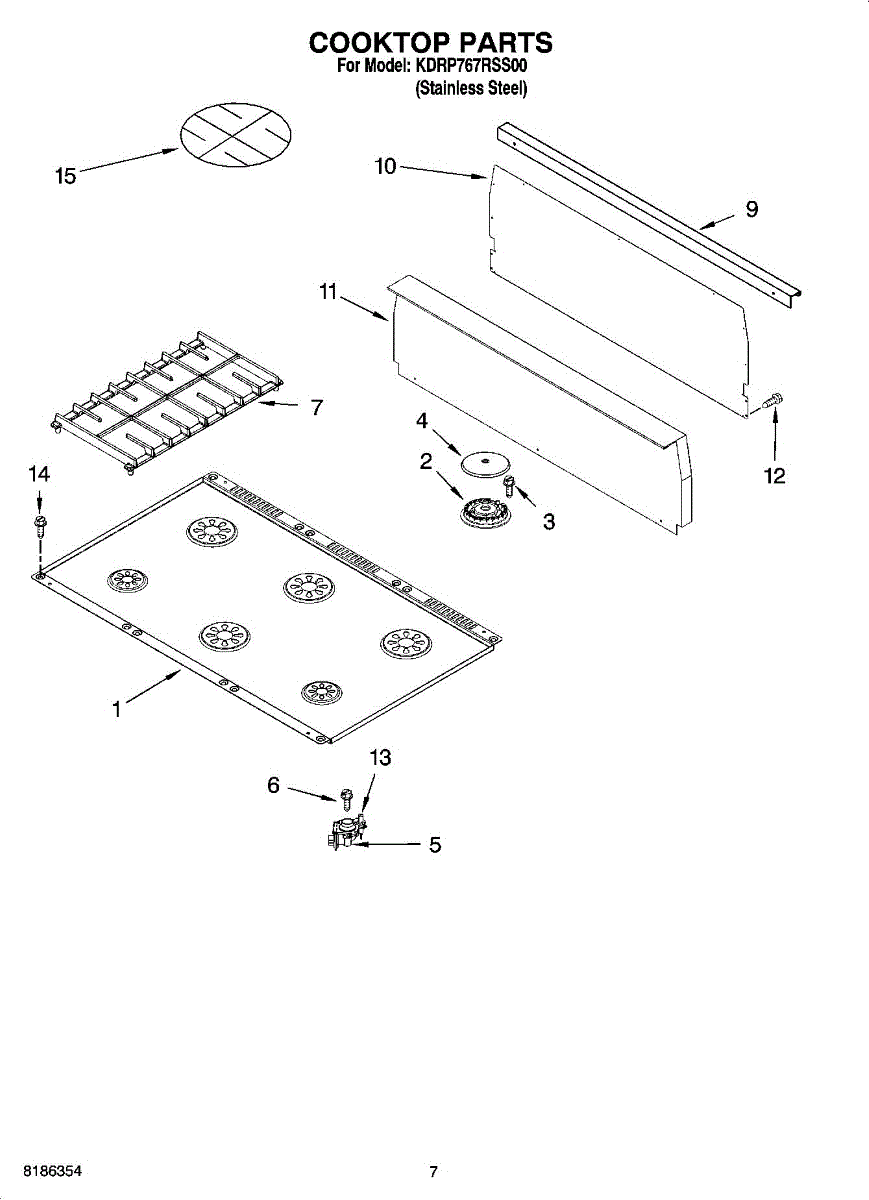

Parts for Kitchenaid KDRP767RSS00: 06 - Cooktop Parts

Location: Left front. 14,000 BTU.

Replacement burner head for gas cooktops. Distributes gas evenly through ports for consistent flame. Replace if cracked, damaged, or worn from spills.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.

Color: Coal matte black. 14,000 BTU.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

Orifice holder aligns and channels gas from the valve to the burner on gas cooktops and ranges. Replace if cracked, damaged, or rusted for stable flame.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

Color: Black.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Fix burners that won't click or ignite without turning on another burner. This spark electrode creates the spark needed to light gas burners. DIY repair.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power
