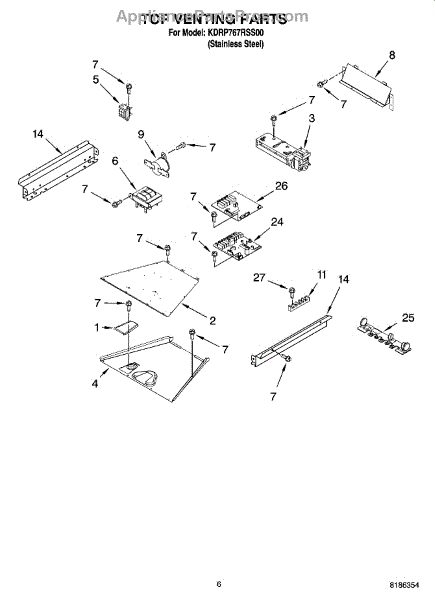

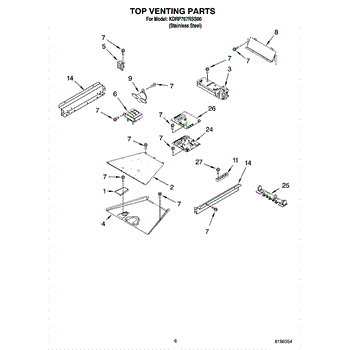

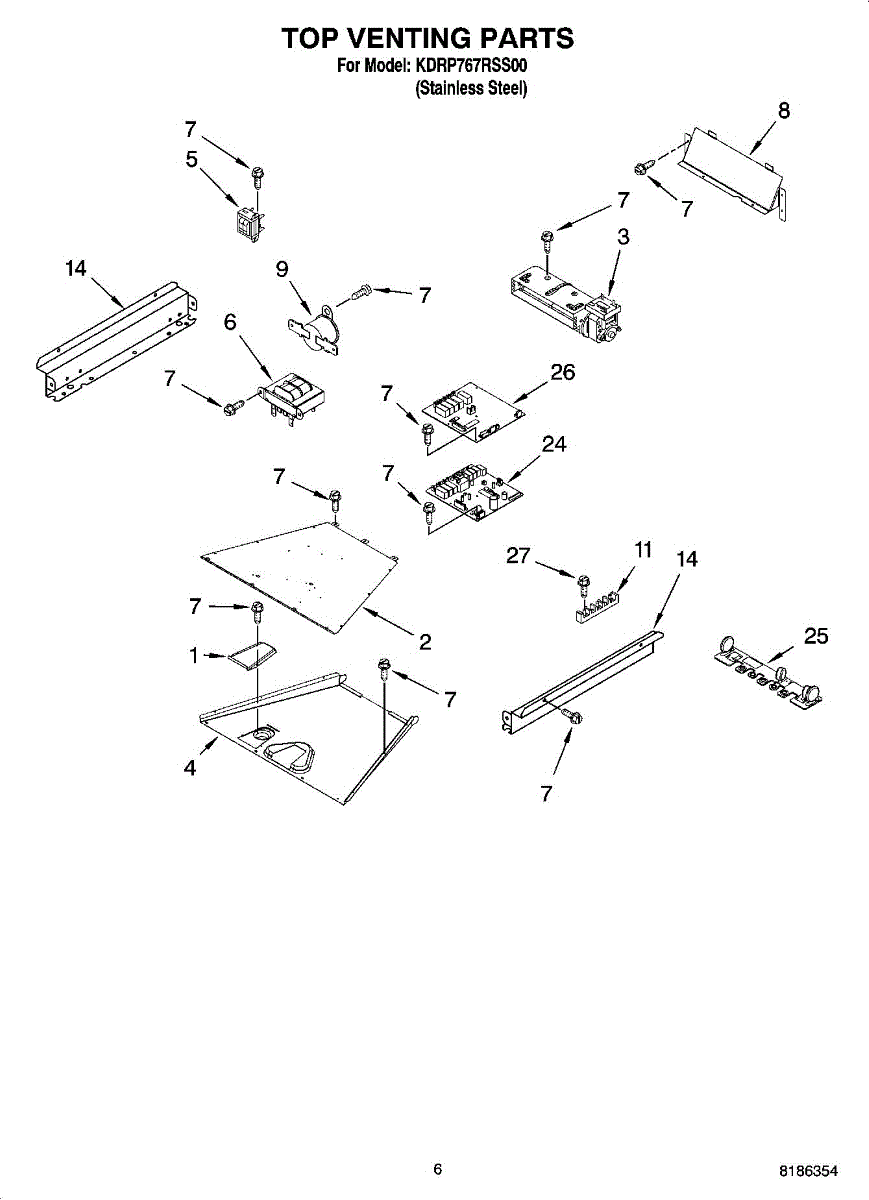

Parts for Kitchenaid KDRP767RSS00: 05 - Top Venting Parts

Oven light won't turn on? This light transformer steps down voltage to power your oven cavity lights. Moderate DIY repair restores illumination.

This replacement transformer steps down household 120VAC, 60Hz power to the low voltage used by the appliance's electronic control. Replacing a failed transformer can restore power to the display/clock and control circuits so cooking functions respond properly. What it does:

• Converts 120VAC line power to low-voltage for the control board/clock and related circuits
• Helps provide stable power to the display and control relays
• Helps resolve: blank or intermittent display, unresponsive controls, oven not starting, or visible heat damage to the original transformer

• One transformer

• Disconnect power at the breaker before servicing; verify no voltage is present
• Note and label all wire positions or take photos before removal; transfer connections one-for-one
• Mount securely and route leads away from sharp edges and hot surfaces
• Inspect wiring and the control board for shorts before restoring power

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Range not heating or won't turn on? A blown thermal fuse is often the culprit. This safety component cuts power when temperatures exceed safe limits.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Protects your oven's electronic control by absorbing voltage spikes and filtering electrical noise. Replace if burnt or after power surges cause control issues.
