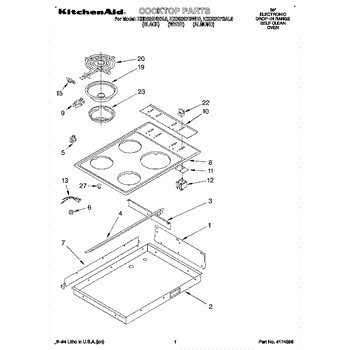

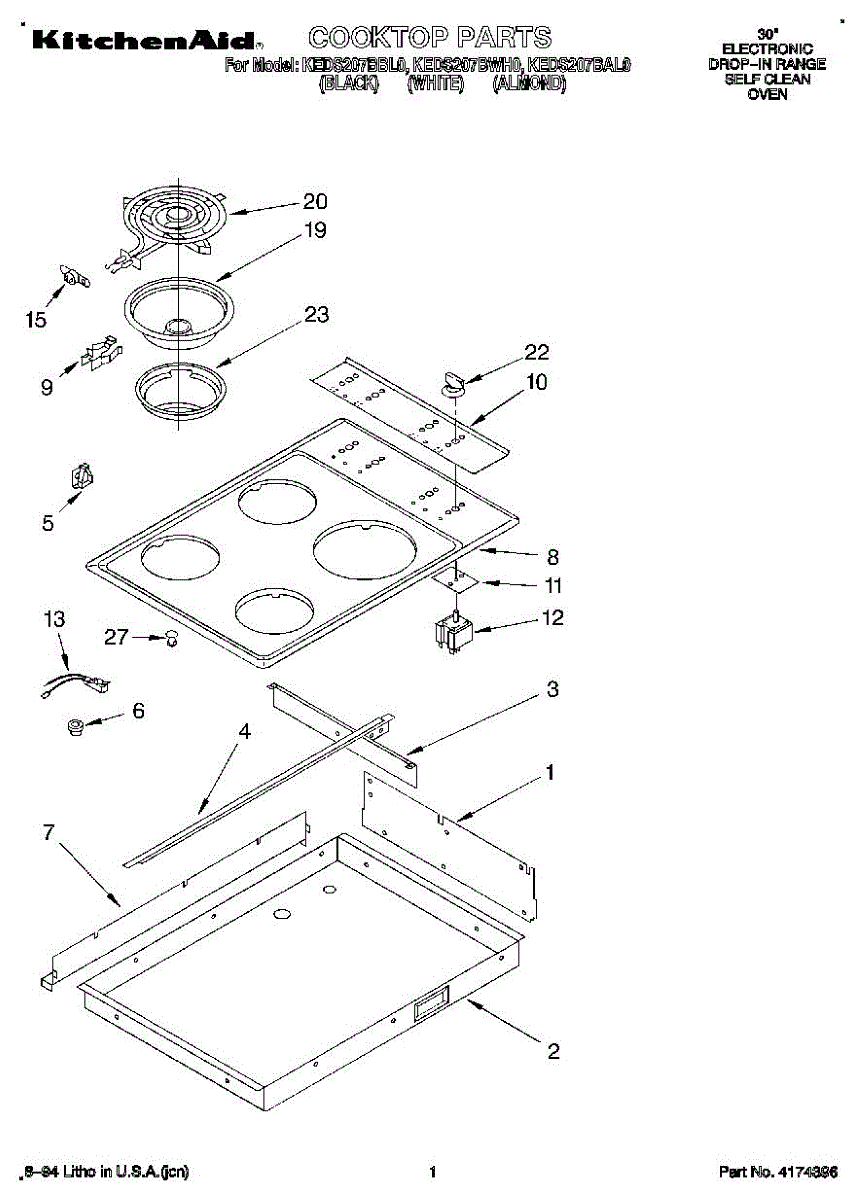

Parts for Kitchenaid KEDS207BBL0: 01 - Cooktop Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This metal clip secures and stabilizes surface burner components on gas cooktops. It prevents burner parts from shifting during cooking and ensures proper alignment for safe gas flow. Install this clip if burner grates move during cooking, flames appear uneven, or burner parts seem loose or misaligned.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-32 x 1/2 inch.

Size: 6-32 x 9/32 inch.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Switch for 6 inch element.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Burner won't heat or cycles incorrectly? This infinite switch controls temperature for your 8-inch range element. Direct-fit part, moderate difficulty.

This fixed thermostat monitors and limits temperature to protect the appliance's system and components. It's a simple, non-adjustable sensor/limit switch used where a set cutoff temperature is required for safe operation. What it does:

• Opens or cuts power when the monitored temperature reaches its fixed limit to prevent overheating
• Helps stop continuous heating cycles caused by a failed control or sensor
• Commonly used as a safety cutoff in temperature-control circuits
• Can resolve symptoms like persistent overheating, failure to stop heating, or temperature-related shutdowns

• One fixed thermostat (single unit)

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle gently; avoid bending terminals or stressing sensing elements

Size: 6-32 x 9/32 inch.

Drip pan kit installs below cooktop burners to catch spills and grease. Replace chipped, stained, or worn pans to restore a clean appearance. Kit includes pans.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

A decorative trim ring that restores the original finish and helps secure surrounding components on your appliance. Replaces cracked, faded or loose trim to improve appearance and maintain a proper fit. What it does

• Covers and finishes the edge of a control or opening to give a clean, factory look.
• Holds adjacent trim or components in place to prevent gaps and rubbing.
• Hides wear, scratches or discoloration for an improved appearance.
• Common symptom: visible cracks, chips, or a loose/misaligned trim piece.

What's included

• One trim ring.

Install notes

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the trim.
• Handle plastic trim carefully to avoid scratches; align tabs/clips before fastening.

8-inch finishing bezel that surrounds controls or burner openings on ranges. Replace when original ring is cracked, broken, or missing to restore clean edges.

This clear plastic cover protects the light bulb inside your dryer drum and diffuses the light evenly. Located on the dryer's interior wall, replace when cracked, yellowed, or missing, as this can expose the bulb to damage from clothing.
