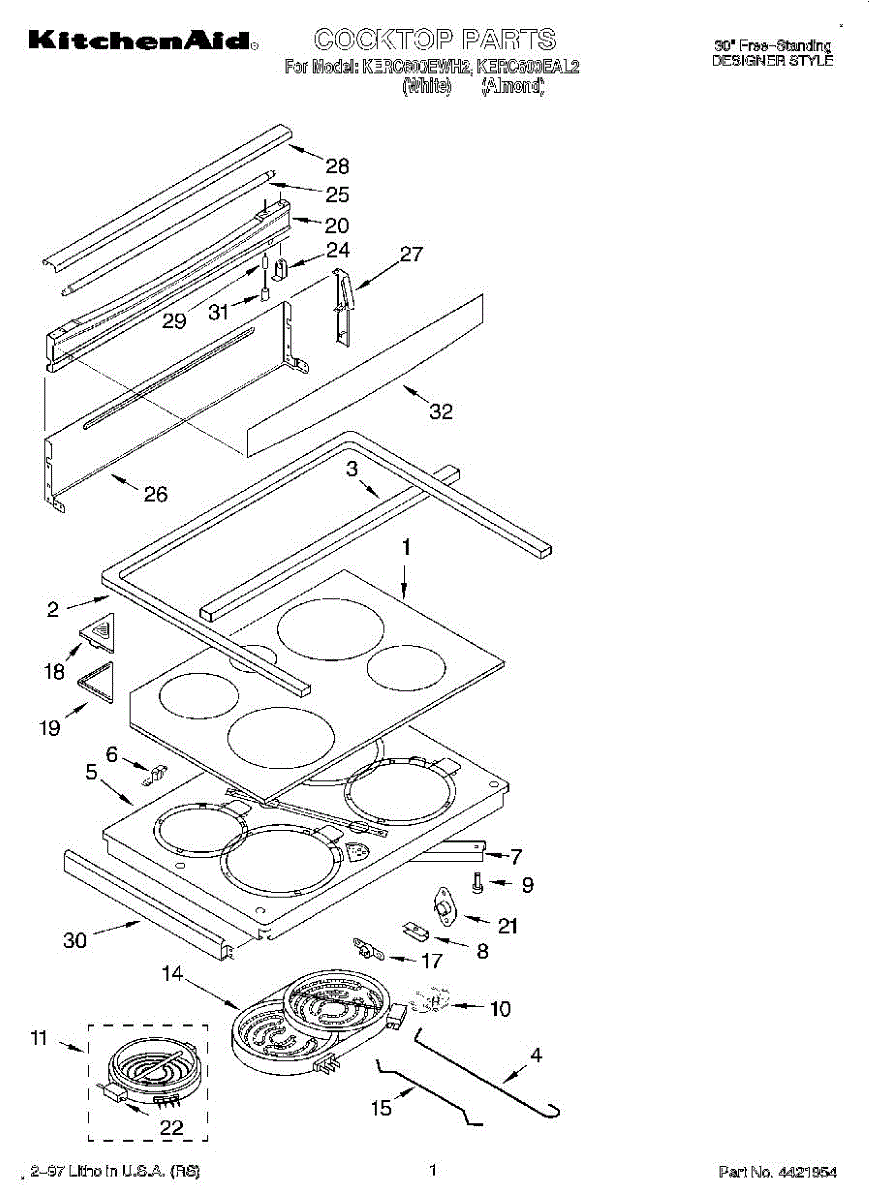

Parts for Kitchenaid KERC600EWH2: 01 - Cooktop Parts

Seals the gap between your range cooktop and countertop to prevent spills from entering the cabinet. Replace when worn or missing for a secure fit.

Large, ceran element rod.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.

Rubber bumper. Color: Grey.

Small, ceran element rod.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

This part has been discontinued by the manufacturer and is no longer available.

Size: 26 inches long. F18t8/cw/k26.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: White. Other colors: For biscuit use 9753320, for black use 9751632.

Fluorescent light bulb starter. 22W. FS-25.

Color: White.

Color: White.

Fluorescent light bulb starter holder.

Color: White.
