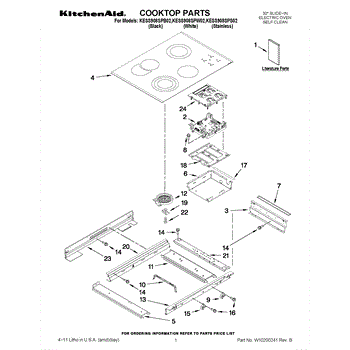

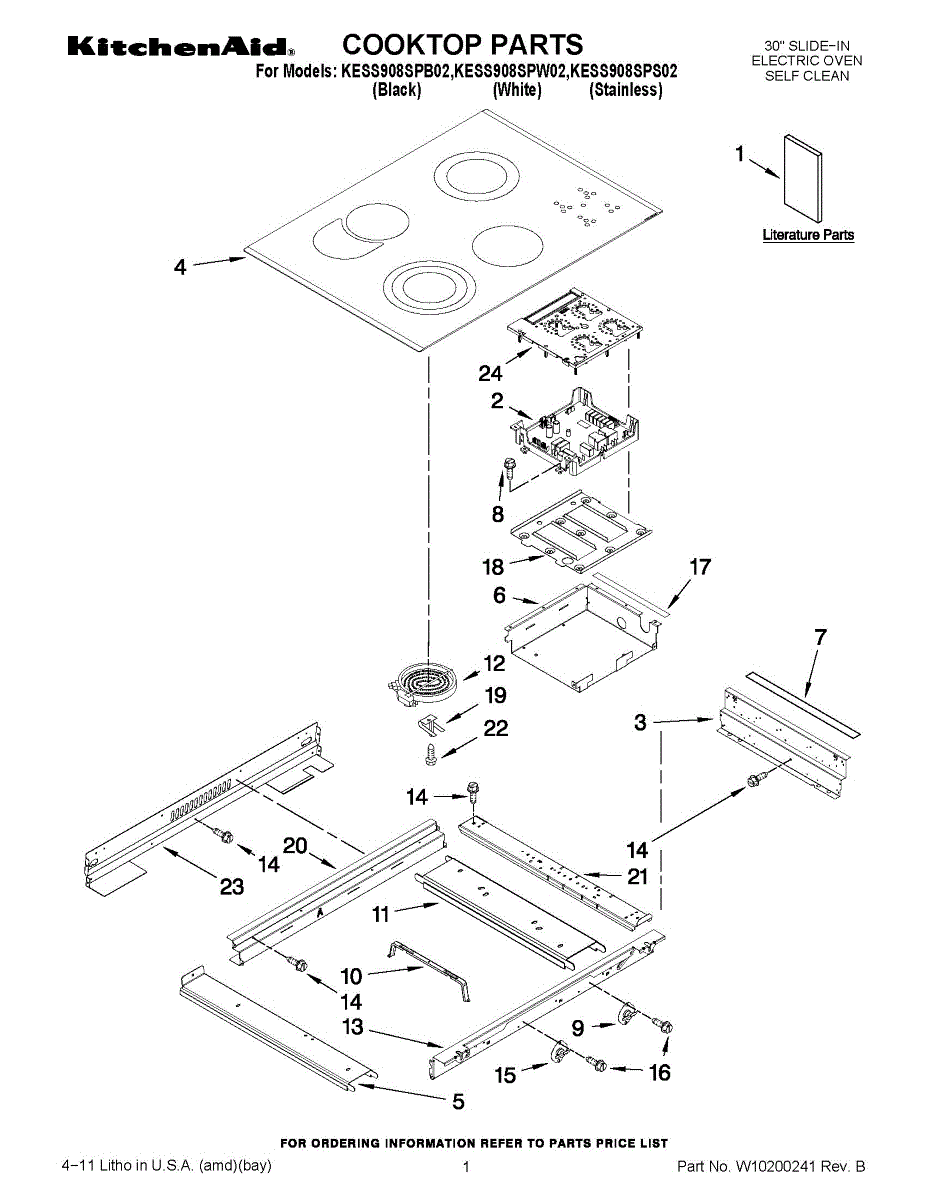

Parts for Kitchenaid KESS908SPS02: 01 - Cooktop Parts

This part has been discontinued and is no longer available

This gasket bracket secures the oven/range gasket to the appliance, helping keep the gasket aligned and maintaining a tighter seal for more consistent cooking and reduced heat/steam escape. What it does:

• Holds the oven/range gasket in place so the gasket stays seated against the cavity
• Helps prevent gasket sagging or detachment that can allow heat or steam to escape
• Supports a proper door seal to reduce uneven baking or longer cook times due to heat loss
• Useful when the original bracket is bent, broken, or missing

• One gasket bracket

• Always disconnect power (and gas, if applicable) and let the appliance fully cool before servicing
• Access may require removing the oven door or an access panel; keep the gasket protected during installation
• Use common hand tools; replace the gasket if it shows wear or damage

Screw for control panel.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

This 1500W surface heating element replaces a damaged or worn top burner to restore proper cooktop heating. It's designed for direct-fit replacement to get one burner heating reliably again. What it does:

• Heats cookware on the cooktop for stovetop cooking tasks.
• Replaces an element that no longer heats or only heats intermittently.
• Restores even heating when a burner is cooler than expected.
• Replaces elements with visible damage, breaks, or burnt spots.

• One surface heating element (1500W top burner).

• Disconnect power at the house breaker before starting; element will be hot and can cause burns.
• Allow the cooktop to cool completely and handle the element by its terminals or edges.
• Ensure correct terminal alignment and secure connections; avoid forcing the element into place.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

Size: 6-32 x 3/8 inch.

This electronic control board operates the cooktop's touch-sensitive triple-zone controls, restoring responsive touch commands and zone selection for reliable cooking control. Replaces a failed or unresponsive touch control module to regain normal user interface function. What it does:

• Interprets touch-pad inputs and sends control signals to the cooktop's heating elements and indicators
• Restores responsiveness when touch controls are intermittent, unresponsive, or display incorrect settings
• Helps re-enable zone selection, temperature adjustments, and timer functions controlled through the touch interface
• Common symptom: cooktop touchpad not responding, display errors, or zones not activating

• Disconnect power at the breaker before accessing the cooktop control area to avoid shock
• Handle the board by its edges and avoid touching components or connector pins to prevent static damage
• Verify connector alignment and secure all wiring before restoring power; test functions after installation
